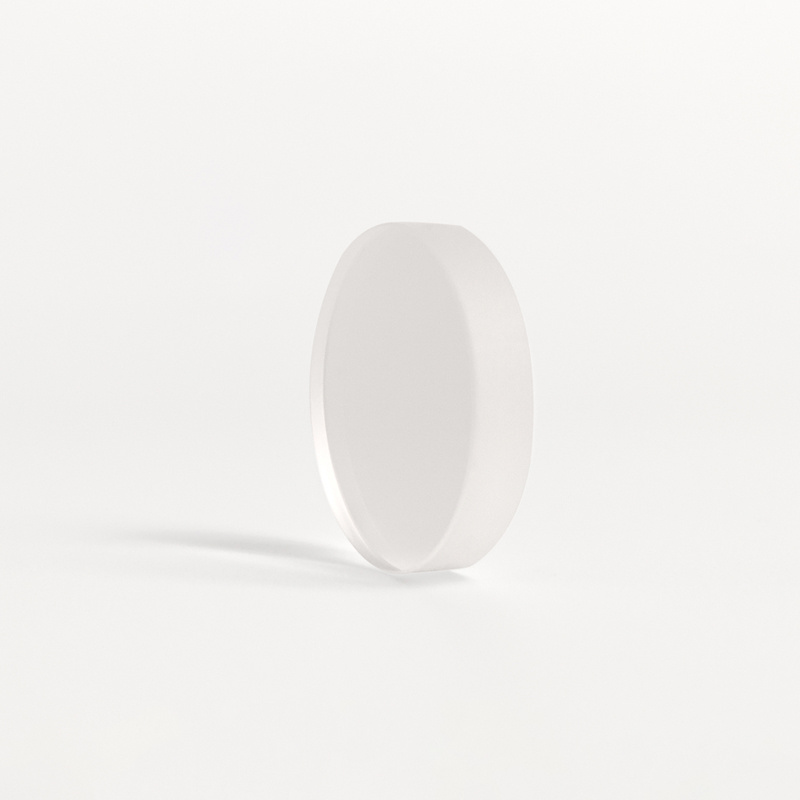

Sapphire Windows are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3) and is useful in a transmission range from 0.2 - 5.5μm.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
YBT
-
Model Number:
-
OW
-
Product name:
-
Sapphire Window
-
Parallelism:
-
±30 arc sec
-
Surface Flatness:
-
1/20 Lambda
-
Surface Quality:
-
10~5
-
Beveling:
-
0.2mm*45°
-
Material:
-
Sapphire
-
Coating:
-
AR coating/ reflective coating
-
OEM:
-
Yes
-
Clear aperture:
-
>90%
-
Application:
-
Optical equipments
Quick Details
-
Use:
-
Optical
-
Structure:
-
Other
-
Shape:
-
PLANO
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
YBT
-
Model Number:
-
OW
-
Product name:
-
Sapphire Window
-
Parallelism:
-
±30 arc sec
-
Surface Flatness:
-
1/20 Lambda
-
Surface Quality:
-
10~5
-
Beveling:
-
0.2mm*45°
-
Material:
-
Sapphire
-
Coating:
-
AR coating/ reflective coating
-
OEM:
-
Yes
-
Clear aperture:
-
>90%
-
Application:
-
Optical equipments
Product Description
Sapphire Windows
|
Diameter
|
0.2-300mm
|
|
Thickness
|
0.1-100mm
|
|
Dimension tolerance
|
+/-0.1mm or +/-0.02mm
|
|
Surface quality (scratch & dig)
|
60/40, 40/20 or better
|
|
Clear aperture
|
>85%, >90%
|
|
Surface accuracy
|
λ/10 λ/2
|
|
Parallelism
|
+/-3' ,+/-30''
|
|
Bevel
|
0.1~0.3mm x 45 degree
|
|
Coating
|
AR, BBAR or Custom
|
Sapphire Windows
Related Products
$5 - $ 50 Pieces
100 Pieces
(MOQ)
$5 - $ 50 Pieces
100 Pieces
(MOQ)
$5 - $ 50 Pieces
100 Pieces
(MOQ)
Certificate
ISO9001
CE
RoHS
Packing&Shipping
Company Introduction
Shenyang Ebetter Optics Co.,Ltd. is a professional manufacturer of precision optical components and optical lens, diffraction grating manufacture. Since the company was established, it has been committed to the research and production and sales. We can carry out the optical system design and production of related accessories,and moreover we have already got import and export rights. nowadays products have been sold to many countries and regions,and established long-term good relations of cooperation with the optical companies of United States,Canada,the European Union and other countries. We get a good reputation with quality products.
