Quick Details
-
Brand Name:
-
Minx, MINX
-
Model Number:
-
Minx-01, MINX002
-
Surface Treatment:
-
Concave,gritted,smooth, Concave,gritted,smooth
-
Product name:
-
Fiberglass Floor Grills Glass
-
Color:
-
Customized Colors
-
Material:
-
Resin fiberglass composite
-
Fiberglass content:
-
24% - 30%
-
Thickness:
-
Customized Thickness
Quick Details
-
Application:
-
Flooring walkway/drainage/chemcial plant/driveway
-
Technique:
-
Pultrusion
-
Place of Origin:
-
Hebei, China, Hebei, China
-
Brand Name:
-
Minx, MINX
-
Model Number:
-
Minx-01, MINX002
-
Surface Treatment:
-
Concave,gritted,smooth, Concave,gritted,smooth
-
Product name:
-
Fiberglass Floor Grills Glass
-
Color:
-
Customized Colors
-
Material:
-
Resin fiberglass composite
-
Fiberglass content:
-
24% - 30%
-
Thickness:
-
Customized Thickness
Custom density

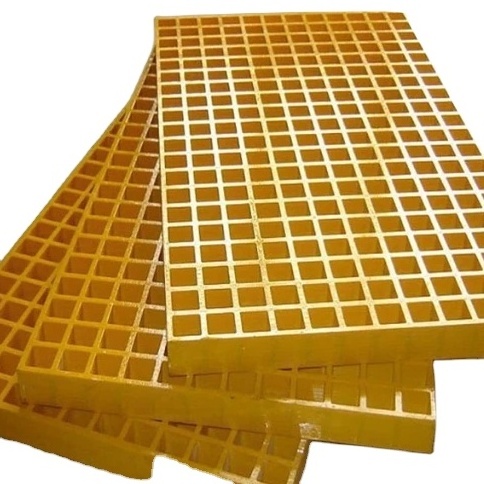

FRP Grating Pigeon Loft Floor Grills Fiberglass Tree Grates
FRP grating
is a plastic molding process with many regular distribution of rectangular, square spaces of FRP sheet, with bidirectional mechanical characteristics.
This series of products are: crescent surface, sand surface, double plane, flat grille and so on.
Our company can
customize products according to customer requirements
, such as different hole size, different shape size, different load requirements.
Available in a wide range of high-performance resins, fiberglass gratings and structural components are preferred for demanding applications including chemical processing, marine environments, pulp and paper plants, food and beverage processing, and wastewater facilities.
|
Product name
|
Frp Grating
|
|
Brand
|
MINX
|
|
Size
|
38*38mm；40*40mm; 50*50mm;19*19*25mm，19*19*38mm, etc. can be customized
|
|
Surface
|
Concave surface; flat surface; gritted surface; mini mesh surface
|
|
Color
|
yellow;green,gray, black,white,or customized
|
|
Characteristic
|
Anti-corrosion, acid and alkali resistance, high load bearing, anti-static, anti-aging, anti-UV, Anti fire
|
|
Material
|
Fiberglass+Resin+High quality calcium powder+Aluminium hydroxide
|
|
Resin Type
|
Resin Base
|
Description
|
Corrosion resistance
|
Flame spread Rating ASTM E84
|
Colors available
|
|
VEFR-25
|
Vinyl ester
|
Supirior corrosion resistance and retardant
|
Excellent
|
Class 125 or less
|
Dark gray, orange
|
|
VEFR-10
|
inyl ester
|
Supirior corrosion resistance and enhanced retardant
|
Excellent
|
Class 110 or less
|
Dark gray
|
|
IFR-25
|
Isophthalic polyester
|
Industrial grade corrosion resistance and fireretardant
|
Very good
|
Class 125 or less
|
Dark gray,Green
|
|
IFR-10
|
Isophthalic polyester
|
Industrial grade corrosion resistance andextra fire retardant
|
Very good
|
Class 110 or less
|
custom
|
|
IFGR-30
|
Isophthalic polyester
|
Food grade corrosion resistance and fire retardant
|
Very good
|
lass 125 or less
|
Light gray,
light green |
|
OFR-25
|
Ortho
|
Moderate corrosionresistance and fireretardant
|
Moderate
|
Class 125 or less
|
Green, yellow light gray, dark gray
|
|
MP-5
|
Phenolic resin
|
Low smoke and superior fire resistance
|
Very good
|
Class 15 or less
|
Reddish-brown,phenolic painting of the grating can be performed to obtain a gray or red finish
|
|
OCR
|
Ortho
|
Moderate corrosion resistance
|
Moderate
|
Class 15 or less
|
Green, yellow light gray, dark gray
|
Our Advantages
Application
Why Choose Us
Product Specification
|
Thickness-T:38X38
|
|
|
|
|
|
|||||
|
Thickness
|
Bar thickness
Top/Bottom
|
Mesh size
|
Panel size
|
Weight(kg/m2)
|
Open area
|
|||||
|
13
|
6.0/5.5
|
38X38
|
1220x3660/1220x4000/1220x2440/921x3055/1264x4010
|
6.0
|
78
|
|||||
|
14
|
6.0/5.0
|
38X38
|
1220x3660/1220x4000/1220x2440/921x3055/1264x4010
|
6.5
|
78
|
|||||
|
15
|
6.0/5.0
|
38X38
|
1220x3660/1220x4000/1220x2440/921x3055/1264x4010
|
7.0
|
78
|
|||||
|
20
|
6.0/5.0
|
38X38
|
1220x3660/1220x4000/1524x4010/1264x4010
|
9.8
|
65
|
|||||
|
25
|
6.5/5.0
|
38X38
|
1220x3660/1220x4000/1530x4010/921x3055/1524x4000/1997x3012
|
12.3
|
68
|
|||||
|
30
|
6.5/5.0
|
38X38
|
1220x3660/1220x4000/921x3055/1524x4010
|
14.6
|
68
|
|||||
|
38
|
7.0/5.0
|
38X38
|
1220x3660/1220x4000/2100x4240/988x4010/1200x2440/1530x4010/1530x3050/921x3055/1000x4000/1226x3665
|
19.5
|
68
|
|||||
|
50
|
9.5/7.5
|
38X38
|
1000x1990/1230x3666/1230x4010
|
42
|
56
|
|||||
|
60
|
10.5/8.5
|
38X38
|
1230x4010
|
50.4
|
54
|
|||||
|
70
|
11.0/9.0
|
38X38
|
1230x4010
|
58.8
|
49
|
|||||
|
Thickness-T:40x40
|
|
|
|
|
|
|||||
|
Thickness
|
Bar thickness
Top/Bottom
|
Mesh size
|
Panel size
|
Weight(kg/m2)
|
Open area
|
|||||
|
25
|
7.0/5.0
|
40x40
|
1007x3007/1007x4007/1247x4047/1527x4047
|
12.3
|
67
|
|||||
|
30
|
7.0/5.0
|
40x40
|
1007x3007/1247x4047/1527x4047
|
14.6
|
67
|
|||||
|
38
|
7.0/5.0
|
40x40
|
1007x3007/1007x4007/1247x4047/1527x4047
|
19.2
|
67
|
|||||
|
40
|
7.0/5.0
|
40x40
|
1007x3007/1007x4007/1247x4047/1527x4047
|
19.5
|
67
|
|||||
|
Thickness-T:50x50
|
|
|
|
|
|
|||||
|
Thickness
|
Bar thickness
Top/Bottom
|
Mesh size
|
Panel size
|
Weight(kg/m2)
|
Open area
|
|||||
|
15
|
6.0/5.0
|
50x50
|
1228x4020
|
12.3
|
67
|
|||||
|
25
|
7.0/6.0
|
50x50
|
1230x4020
|
14.6
|
67
|
|||||
|
40
|
6.8/5.0
|
50x50
|
1787x4530
|
19.2
|
67
|
|||||
|
50
|
8.0/6.0
|
50x50
|
1230x4020/1532x4020
|
19.5
|
67
|
|||||
|
Thickness-T:83x83
|
|
|
|
|
|
|||||
|
Thickness
|
Bar thickness
Top/Bottom
|
Mesh size
|
Panel size
|
Weight(kg/m2)
|
Open area
|
|||||
|
38
|
7.0/5.0
|
83x83
|
1007x4007/1007x3007/1007x4255
|
10.0
|
84
|
|||||
|
40
|
7.0/5.0
|
83x83
|
1007x4007/1007x3007/1007x4255
|
11.0
|
84
|
|||||
|
Thickness-T:13x13/40x40 micro mesh
|
|
|
|
|
|
|||||
|
Thickness
|
Bar thickness
Top/Bottom
|
Mesh size
|
Panel size
|
Weight(kg/m2)
|
Open area
|
|||||
|
25
|
6.5/4.5/5.0
|
13x13
40x40
|
1247x4047/1007x3007
1007x4047/1530x4047
|
17.8
|
30
|
|||||
|
30
|
6.5/4.5/5.0
|
13x13
40x40 |
1527x4047/1247x4047
1007x3007/1007x4047
|
19.1
|
30
|
|||||
|
38
|
6.5/4.5/5.0
|
13x13
40x40 |
1527x4047/1247x4047
1007x3007/1007x4047
|
23.8
|
30
|
|||||
|
Thickness-T:19x19/38x38 micro mesh
|
|
|
|
|
|
|||||
|
Thickness
|
Bar thickness
Top/Bottom
|
Mesh size
|
Panel size
|
Weight(kg/m2)
|
Open area
|
|||||
|
25
|
6.5/5.0
|
19x19
38x38
|
1220x3660/1220x2440/921x3055
1226x4007/1255x4007
|
16.8
|
30
|
|||||
|
30
|
6.5/5.0
|
19x19
38x38
|
1220x3660/1220x2440/915x3050
1220x4000/1530x4007
|
18.8
|
30
|
|||||
|
38
|
6.5/5.0
|
19x19
38x38
|
1220x3660/1220x2440/915x3050
1220x4000/1226x4007
|
23.5
|
30
|
|||||
|
Thickness-T:20x20/40x40 micro mesh
|
|
|
|
|
|
|||||
|
Thickness
|
Bar thickness
Top/Bottom
|
Mesh size
|
Panel size
|
Weight(kg/m2)
|
Open area
|
|||||
|
14
|
6.5/5.0
|
20X20
40X40
|
1247X4047/1007X3007
|
10.5
|
42
|
|||||
|
22
|
6.5/5.0
|
20X20
40X40
|
1247X4047/1007X3007/1527X4047
|
14.8
|
42
|
|||||
|
25
|
6.5/5.0
|
20X20
40X40
|
1247X4047/1527X4047
|
16.8
|
42
|
|||||
|
30
|
7.0/5.0
|
20X20
40X40
|
1007X4047/1007X3007/1247X4047/1527X4047
|
18.3
|
42
|
|||||
|
38
|
7.0/5.0
|
20X20
40X40
|
1007X4047/1007X3007/1247X4047/1527X4047
|
23.2
|
42
|
|||||
|
40
|
7.0/5.0
|
20X20
40X40
|
1007X4047/1007X3007/1247X4047/1527X4047
|
23.7
|
42
|
|||||
|
Thickness-T:25x25/50x50 micro mesh
|
|
|
|
|
|
|||||
|
Thickness
|
Bar thickness
Top/Bottom
|
Mesh size
|
Panel size
|
Weight(kg/m2)
|
Open area
|
|||||
|
50
|
8.0/6.0
|
25x25
50x50
|
1510x4023
|
28.5
|
60
|
|||||
|
Thickness-T:26x26/52x52 micro mesh
|
|
|
|
|
|
|||||
|
Thickness
|
Bar thickness
Top/Bottom
|
Mesh size
|
Panel size
|
Weight(kg/m2)
|
Open area
|
|||||
|
30
|
7.0/6.0
|
26X26
52X52
|
1434X4053
|
15.3
|
60
|
|||||
|
38
|
7.0/6.0
|
26X26
52X52
|
1512X4012
|
19.5
|
60
|
|||||
