Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BOTA
-
Dimension(L*W*H):
-
620*380*580MM
-
Weight:
-
110
-
Rated power/speed:
-
7-32HP/2200/2300
-
Product name:
-
water cooled single cylinder diesel engine
-
Certification:
-
ISO9001,CCC
-
Application:
-
Kinds of machinery power
-
Rated Power:
-
7-32hp
-
Quality:
-
Good quality
-
Cooling System:
-
Water-coolled
-
Starting system:
-
Electric Starter - Handle Starting
Quick Details
-
Displacement:
-
0.573L
-
Emission Standard:
-
Euro 2
-
Power:
-
8HP, 9HP, 12HP, 20HP, 15HP, 10HP, 18HP, 22HP, 25HP, 28HP, 32HP
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BOTA
-
Dimension(L*W*H):
-
620*380*580MM
-
Weight:
-
110
-
Rated power/speed:
-
7-32HP/2200/2300
-
Product name:
-
water cooled single cylinder diesel engine
-
Certification:
-
ISO9001,CCC
-
Application:
-
Kinds of machinery power
-
Rated Power:
-
7-32hp
-
Quality:
-
Good quality
-
Cooling System:
-
Water-coolled
-
Starting system:
-
Electric Starter - Handle Starting

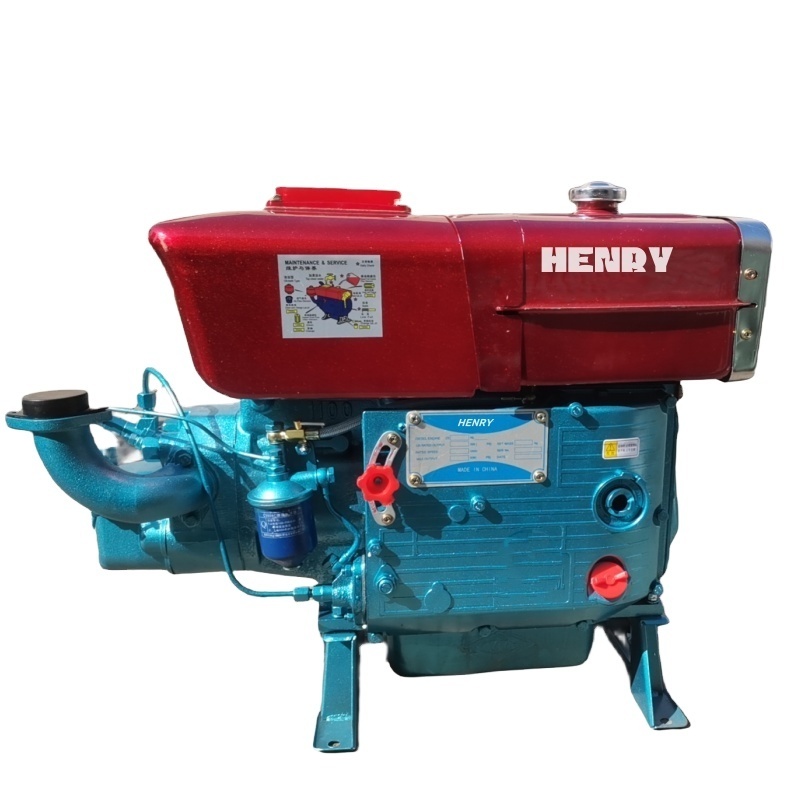

water cooled single cylinder diesel engine
It is a popular matched Engines at present ,windly use in different farm fiels.
Main application Small general sets ,air-compressor, inland ships , engineering machinery
and processing machines for agricultural products and sideline products
(eg. Thresher, rice mill , flour milling machine , fodder grinder)
MODEL 175-190 (6-10HP)
|
Model |
R175A |
R180 |
R185 |
R190 |
|
TYPE |
Single cylinder, horizontal , 4 stroke ,water cooling. |
|||
|
Combustion system |
Precombustion chamber |
Swirl combustion chamber |
||
|
Bore x stroke(mm) |
75 x 80 |
80 x 80 |
85 x 85 |
90 x 90 |
|
Total Displacement(L) |
0.353 |
0.402 |
0.510 |
0.573 |
|
Rated Output(kw/rpm) |
4.41 |
5.15 |
5.88 |
7.0 |
|
Max. Output(kw/rpm) |
4.85 |
5.67 |
6.46 |
7.92 |
|
Rated speed(r/min) |
2200 |
2200 |
2300 |
2300 |
|
Specific Fuel(g/kw.h) |
Less than or equal to 280.2 |
Less than or equal to 278.80 |
Less than or equal to 275 |
Less than or equal to 275 |
|
Cooling system consumption |
Evaporative |
Evaporative |
Evaporative |
Evaporative |
|
Lubrication method |
Pressure/splash |
Pressure/splash |
Pressure/splash |
Pressure /splash |
|
Starting method |
Hand cranking electric cranking |
Hand cranking Electric cranking |
Hand cranking Electric cranking |
Hand cranking Electric cranking |
|
Net weight (kg) |
68 |
72 |
95 |
95 |
|
Overall dimension |
435*245*332mm |
625*341*460mm |
740*400*560mm |
670*400*560mm |
MODEL 192-196(11-13.5HP)
|
Model |
R192 |
R195 |
R196 |
|
TYPE |
Single cylinder , horizontal ,4 stroke ,water cooling. |
||
|
Combustion system |
Swirl combustion chamber |
Swirl combustion chamber |
|
|
Bore x stroke(mm) |
92 x 95 |
95 x 95 |
96x96 |
|
Total Displacement(L) |
0.598 |
0.67 |
0.723 |
|
Rated Output(kw/rpm) |
7.7 |
8.8 |
9.02 |
|
Max.Output(kw/rpm) |
8.47 |
9.68 |
9.92 |
|
Rated speed(r/min) |
2200 |
2200 |
2300 |
|
Specific Fuel(g/kw.h) |
Less than or equal to 266.60 |
Less than or equal to 258.40 |
Less than or equal to 258.4 |
|
Coolingsystem comsumtion |
Evaporative |
Evaporative |
Evaporative |
|
Lubrication method |
Pressure/splash |
Pressure/splash |
Pressure/splash |
|
Starting method |
Hand cranking electric cranking |
Hand cranking Electric cranking |
Hand cranking Electric cranking |
|
Net weight (kg) |
95 |
107/109 |
110 |
|
Overall dimension |
670*400*560mm |
710*400*570mm |
710*400*570mm |
MODEL 195- 1115(12-20HP)
|
Model |
195 |
1100 |
1105 |
1110 |
1115 |
||||
|
TYPE |
Single cylinder, horizontal , 4 stroke ,water cooling. |
||||||||
|
Combustion system |
Direct Injection |
||||||||
|
Bore x stroke(mm) |
95 x 115 |
100 x 115 |
105 x 115 |
110 x 115 |
115 x 115 |
||||
|
Total Displacement(L) |
0.815 |
0.903 |
0.996 |
1.093 |
1.194 |
||||
|
Rated Output(kw/rpm) |
8.82 |
11.03 |
12.1 |
13.24 |
14.7 |
||||
|
Max.Output(kw/rpm) |
9.7 |
12.13 |
13.31 |
14.56 |
16.17 |
||||
|
Rated speed(r/min) |
2000 |
2200 |
2200 |
2200 |
2200 |
||||
|
Specific Fuel(g/kw.h) |
Less than or equal to 244.8 |
Less than or equal to 246.2 |
Less than or equal 246.2 |
Less than or equal to 244.8 |
Less than or equal to 244.8 |
||||
|
Coolingsystem comsumtion |
Evaporative |
Evaporative |
Evaporative |
Evaporative |
Evaporative |
||||
|
Lubrication method |
Pressure/splash |
Pressure/splash |
Pressure/splash |
Pressure /splash |
Pressure/splash |
||||
|
Starting method |
Hand cranking electric cranking |
Hand cranking Electric cranking |
Hand cranking Electric cranking |
Hand cranking Electric cranking |
Hand cranking Electric cranking |
||||
|
Net weight (kg) |
148 |
153 |
155 |
180 |
183 |
||||
MODEL 25-32HP
|
Model |
L25 |
L28 |
L32 |
|
TYPE |
Single cylinder , horizontal ,4 stroke ,water cooling. |
||
|
Combustion system |
Direct Injection |
||
|
Bore x stroke(mm) |
115 x 120 |
125 x 120 |
130 x125 |
|
Total Displacement(L) |
1.25 |
1.51 |
1.61 |
|
Rated Output(kw/rpm) |
16 |
19.5 |
21 |
|
Max.Output(kw/rpm) |
17.60 |
21.45 |
23.1 |
|
Rated speed(r/min) |
2200 |
2200 |
2200 |
|
Specific Fuel(g/kw.h) |
Less than or equal to 244.80 |
Less than or equal to 244.80 |
Less than or equal to 244.80 |
|
Coolingsystem comsumtion |
Evaporative |
Evaporative |
Evaporative |
|
Lubrication method |
Pressure/splash |
Pressure/splash |
Pressure/splash |
|
Starting method |
Hand cranking electric cranking |
Hand cranking Electric cranking |
Hand cranking Electric cranking |
|
Net weight (kg) |
185 |
210 |
215 |
Main Feature
1. Single cylinder diesel engine power from 4.41kw(6hp) – 23.10kw(32hp) The main model :
165/170/175/180/185/190/192/195/196 /197/1100/1105/1110/1115 /25/28/32
2.Diesel engine ,compact ,agile ,light ,reliable, convenient , Excellent quality
3.windly use in the mini-tractor , transportation vehicle ,Small general sets ,air-compressor, inland river ships ,
engineering machinery and processing machines for agricultural products and sideline products
(eg. Thresher, rice mill , flour milling machine , fodder grinder) and so on.
4.Equipped with lighting equipment, traveling at night ,with walking tractor can do short transportation.
5.with quickly coupling ,easy to change farming implements
6.The colors can optional as request after the quantity more than 100sets
7.Every year sell more than 150000sets ,the products are welcome by the market in china and oversea market.
