Quick Details
-
Voltage:
-
380
-
Dimension(L*W*H):
-
18*1.5*2.5m
-
Weight:
-
5000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainless Steel 304
-
Capacity:
-
120-150kg/h
-
Name:
-
Fish Food Processing Equipment
-
Inverter:
-
Delta
-
Motor:
-
Simens
-
Raw material:
-
Fish Meal
-
Product:
-
Dog Cat Pig Bird
-
Product name:
-
Automatic sinking Floating Fish Food Processing Line
Quick Details
-
Max. Capacity:
-
120-150kg/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MINDE
-
Voltage:
-
380
-
Dimension(L*W*H):
-
18*1.5*2.5m
-
Weight:
-
5000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainless Steel 304
-
Capacity:
-
120-150kg/h
-
Name:
-
Fish Food Processing Equipment
-
Inverter:
-
Delta
-
Motor:
-
Simens
-
Raw material:
-
Fish Meal
-
Product:
-
Dog Cat Pig Bird
-
Product name:
-
Automatic sinking Floating Fish Food Processing Line
Product description
High quality food for trout fish machine complete production line for floating fishes fish feed pellet extruder
The fish feed processing line is suitable for breeding different types of fish. This includes small-scale fish farming and large-scale commercial fish farming. They are also suitable for various types of fish, including tilapia, catfish, trout, and salmon.
The main components of the fish feed processing machine include a flour mixer, a twin screw host, an oven, and seasoning. The mixing machine mainly mixes some raw materials thoroughly and evenly, and can also add some other nutrients. The twin screw host mainly compresses the mixed materials. The squeezed fish feed is sent to an oven for moisture drying to extend the shelf life of the container.
Samples:
Technical Parameter:
|
Model
|
65
|
70
|
85
|
100
|
110
|
|
Voltage customized
|
380v/50Hz
|
380v/50Hz
|
380v/50Hz
|
380v/50Hz
|
380v/50Hz
|
|
Installed power
|
22kw
|
45kw
|
55kw
|
110kw
|
160kw
|
|
Capacity
|
120-150kg/h
|
200-300kg/h
|
400-800kg/h
|
1000-2000kg/h
|
2000-3000kg/h
|
|
Length
|
26m
|
28m
|
45m
|
45m
|
55m
|
Product Line
Flow chart:
Mixer---Conveyor----Twin screw extruder----Vibrating machine--Air blower--Drying machine--Hoister--Flavoring machine
Features
1. Automated feeding system - --Automatically take fish feed from the hopper and deposit it into the extruder.
2. Variable speed control - --This feature allows for precise temperature and pressure changes for optimal extruder performance.
3. Temperature sensing - --Fish feed extruders typically have temperature sensors embedded in their barrel or die that provide feedback to improve the performance of the extruder.
4. Feed-material selection - --Fish feed extruders should be able to process a variety of feed materials, including cereals, nuts,oils and fats.
5. Pelletizing capabilities - --Many fish feed extruders come with a pelletizing head, allowing for more uniform pellets with agreater surface area for improved digestion.
2. Variable speed control - --This feature allows for precise temperature and pressure changes for optimal extruder performance.
3. Temperature sensing - --Fish feed extruders typically have temperature sensors embedded in their barrel or die that provide feedback to improve the performance of the extruder.
4. Feed-material selection - --Fish feed extruders should be able to process a variety of feed materials, including cereals, nuts,oils and fats.
5. Pelletizing capabilities - --Many fish feed extruders come with a pelletizing head, allowing for more uniform pellets with agreater surface area for improved digestion.

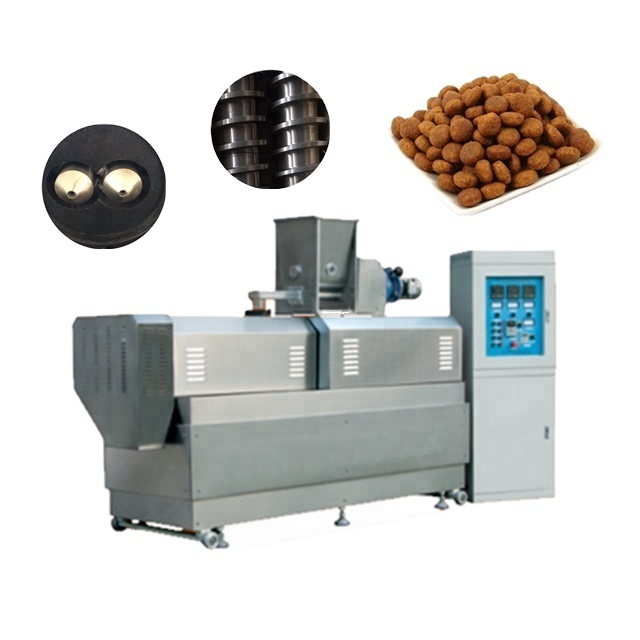

Main machine
Extruder.
The main functions of extruder are extrusion and material puffing. This automatic extruder is easy to operate and with solid
performance for long term.
performance for long term.
Dryer.
It contains transmission electrical motor,
stainless steel carrying belt, infrared heating pipes and supporting frame
stainless steel carrying belt, infrared heating pipes and supporting frame
Flavoring.
To sprayer the oil as well as the other flavor on the dog food in order to make special smell to make the dog food like to eat
as well as make taste delicious
as well as make taste delicious
