Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
8000 x 2,300 x 3,100MM
-
Machine Weight:
-
7400 kg
-
Bucket capacity:
-
1.0m3
-
Marketing Type:
-
New Product 2022
-
Product name:
-
backhoe loader
-
Color:
-
Customize
-
Rated Power:
-
85KW
-
Overall operating weight:
-
7400KG
-
L*W*H(mm):
-
8000 x 2,300 x 3,100MM
-
Product Name:
-

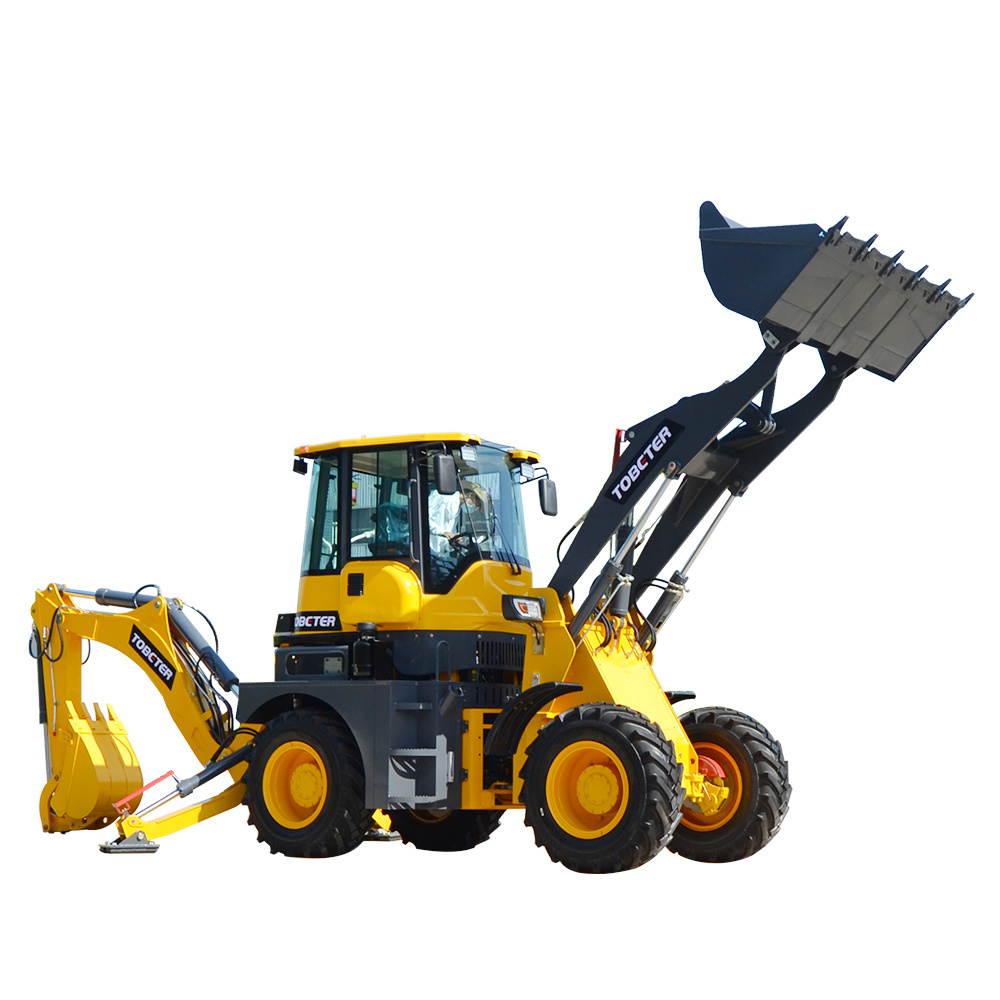

Chinese New WZ40-28 Tractor Backhoe Loader Cat With Mower
-
After Warranty Service:
-
Online support
-
Certification:
-
CE ISO
Quick Details
-
Engine Brand:
-
YUCHAI
-
Power:
-
85KW
-
Brand Name:
-
HERACLES
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
8000 x 2,300 x 3,100MM
-
Machine Weight:
-
7400 kg
-
Bucket capacity:
-
1.0m3
-
Marketing Type:
-
New Product 2022
-
Product name:
-
backhoe loader
-
Color:
-
Customize
-
Rated Power:
-
85KW
-
Overall operating weight:
-
7400KG
-
L*W*H(mm):
-
8000 x 2,300 x 3,100MM
-
Product Name:
-
Chinese New WZ40-28 Tractor Backhoe Loader Cat With Mower
-
After Warranty Service:
-
Online support
-
Certification:
-
CE ISO
Product Description
Multi-functional engineering machinery incorporating and loading into an organic whole. It is comfortable and convenient to handle, the turning radius is small and the cost performance is high. It is widely used in municipal administration, the construction of projects such as the building, the oil field, water conservancy, the forest farm, the military project, and so on.
It also can be used in excavating, carrying and leveling and can carry on the flexible and swift homework to scarp heap and waste residue of the large and medium-sized enterprise. It is the ideal model of realizing machine with multi-functions.
Specification
|
Performance
|
Length x Width x Height:8000 x 2,300 x 3,100MM
|
|
|
Cab Roof Height: 2,900MM
|
|
|
Wheel Base: 2,250MM
|
|
|
Track: 1,640MM
|
|
|
Min. Ground Clearance: 300MM
|
|
|
Total Weight: 7400KG
|
|
|
Maximum Speed: 22Km/h
|
|
|
Maximum Grade ability Capacity: 30°
|
|
|
Loading Bucket Capacity: 1.4CBM
|
|
|
Loading Capacity: 2,800KG
|
|
|
Maximum Articulated Height Of Bucket: 3,400MM
|
|
|
Bucket Discharge Height: 2,795MM
|
|
|
Bucket Discharge Distance: 1,048MM
|
|
|
Backhoe Bucket Capacity: 0.32CBM
|
|
|
Backhoe Discharge Height: 3,878MM
|
|
|
Maximum Digging Depth: 4,000MM
|
|
|
Minimum Turning Radius: 5,688MM
|
|
|
Bucket Slewing Angle: 190°
|
|
|
Bucket Stick Revolving Radian: 180°
|
|
Diesel Engine
|
Model: Yuchai turbocharged engine
|
|
|
Engine Power:85KW
|
|
|
Type: Inline, direct injection, four-stroke, liquid cooled
|
|
|
Optional engine:
Cummins engine 4BTA3.9-100(75KW) Wechai engine(92kw) |
|
|
Rated Speed: 2,400RPM
|
|
Transmission System
|
Type of Hydraulic Pump: Fixed shaft power shift transmission
|
|
|
Gear Shift: 2 forward shift 2 reverse shift
|
|
|
Torque: YJ-280
|
|
|
Drive Pump: CDXaf3016-IL
|
|
|
Flow: 16ML/R
|
|
|
Work Pump: CBGj2063
|
|
|
Flow: 63ML/R
|
|
Steering System
|
Type: Articulated hydraulic steering
|
|
|
Steering Control Valve: BZZ5-250
|
|
|
Turning Control Valve: YSF25S-00
|
|
|
Steering Angle: 36°
|
|
|
Minimum Turning Radius: 5,018MM
|
|
Axles
|
Main Transmission Type: Single Reduction
|
|
|
Wheel Reduction Type: Wheel Reduction
|
|
Tyre
|
Tyre Size: 16/70-24
|
|
|
Front Wheel Pressure: 0.22MPa
|
|
|
Rear Wheel Pressure: 0.20MPa
|
|
Brake System
|
Service Braking: Air over hydraulic disc on 4 wheels
|
|
|
Parking Brake: Manual parking brake
|
|
Hydraulic System
|
System Flow: 140L/Min
|
|
|
Bucket Digging Capacity: 46KN
|
|
|
Bucket Stick Digging Capacity: 31KN
|
|
|
Bucket Hydraulic Translation Function: Yes
|
|
|
Bucket Lift Time: 6.8S
|
|
|
Bucket Lower Time: 2.5S
|
|
|
Bucket Dump Time: 1.2S
|
Optional Attachments
