Quick Details
-
Brand Name:
-
GOGOATC
-
Form:
-
plug and wire lead type
-
Operating Temperature:
-
-5~80°C
-
Orifice:
-
6mm
-
type:
-
normal colse ,normal open
-
Working pressure:
-
0-150bar
-
Voltage:
-
AC110V AC220V 24V DC 12V DC
-
Sealing materials:
-
NBR,FKM,PTFE
-
For:
-
150bar valve
-
Body material:
-
Brass , stainless steel
-
Principium:
-
directly acting type
Quick Details
-
Port Size:
-
1/8" 1/4"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
GSPG-06
-
Brand Name:
-
GOGOATC
-
Form:
-
plug and wire lead type
-
Operating Temperature:
-
-5~80°C
-
Orifice:
-
6mm
-
type:
-
normal colse ,normal open
-
Working pressure:
-
0-150bar
-
Voltage:
-
AC110V AC220V 24V DC 12V DC
-
Sealing materials:
-
NBR,FKM,PTFE
-
For:
-
150bar valve
-
Body material:
-
Brass , stainless steel
-
Principium:
-
directly acting type

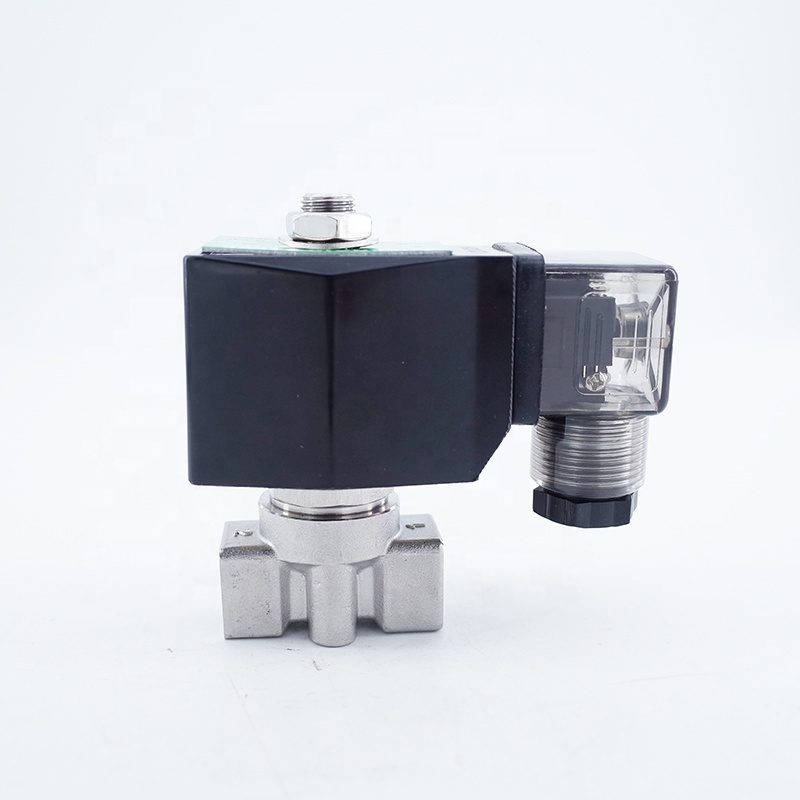

GOGO 150Bar GSPG-06 2 way water high pressure solenoid valve 1/4" BSP 220V 24V Orifice 6mm N.C stainless steel 304 valve
Specification
| Pattern: Two-port two-position | |||||||
| Principium: directly acting type | |||||||
| Control mode: normally close | |||||||
| Valve body: brass , Stainless steel | |||||||
| Diaphragm material: FKM: <150°C; PTFE: <180°C | |||||||
| Working pressure: 0~90(120)bar | |||||||
| Max pressure: 150bar | |||||||
| Voltage: AC220V AC110V DC12V DC24V | |||||||
| Medium: air ,water, hot water , steam , oil ect. | |||||||
| Application: high-pressure large-flow steam water control system |
| Model | Pipe |
Orifice
Diameter (mm) |
Pressure
(bar) |
CV |
Body
material |
Seal |
| SPG-01 | 1/4" | 1.2 | 0-200 | 0.05 | SUS304 | PTFE |
| SPG-02 | 1/4" | 2 | 0-100 | 0.2 | ||
| SPG-1002 | 1/4" | 10 | 0.5-100 | 1.7 | ||
| SPG-1003 | 3/8" | 10 | 0.5-100 | 1.7 | ||
| SPG-1004 | 1/2" | 10 | 0.5-100 | 1.7 |
Dimensions
(MM)
| Materials of construction | |||
| Parts in contact with the medium | |||
| Valve of body | Brass | SS304 | |
| Seals | FKM ,PTFE | ||
| Magnetic isolation pipe | SS304 | ||
| Core | Stainless steel alloy | ||
| Spring | SS304 | ||
| The shading | Copper | ||
