Quick Details
-
Application:
-
Park
-
Design Style:
-
Traditional
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WanTong
-
Model Number:
-
4000gsm-7000gsm
-
Material:
-
Sodium Bentonite
-
Color:
-
black,white,etc
-
Length:
-
Normal 30m
-
Width:
-
1m-6m Normal 5.8m
-
Usage:
-
artificial lake,refuse landfill,fish farm
-
Keyword:
-
Geosynthetic Clay Liner,bentonite waterproof pad
-
Product name:
-
Anti-seepage Blanket Geosynthetic Clay Liner Bentonite Waterproof Pad
-
weight:
-
4000gsm4300gsm4500gsm5000gsm5500gsm6000gsm7000gsm
-
Certifications:
-
ASTM
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, 3D model design
-
Application:
-
Park
-
Design Style:
-
Traditional
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WanTong
-
Model Number:
-
4000gsm-7000gsm
-
Material:
-
Sodium Bentonite
-
Color:
-
black,white,etc
-
Length:
-
Normal 30m
-
Width:
-
1m-6m Normal 5.8m
-
Usage:
-
artificial lake,refuse landfill,fish farm
-
Keyword:
-
Geosynthetic Clay Liner,bentonite waterproof pad
-
Product name:
-
Anti-seepage Blanket Geosynthetic Clay Liner Bentonite Waterproof Pad
-
weight:
-
4000gsm4300gsm4500gsm5000gsm5500gsm6000gsm7000gsm
-
Certifications:
-
ASTM
Product Description

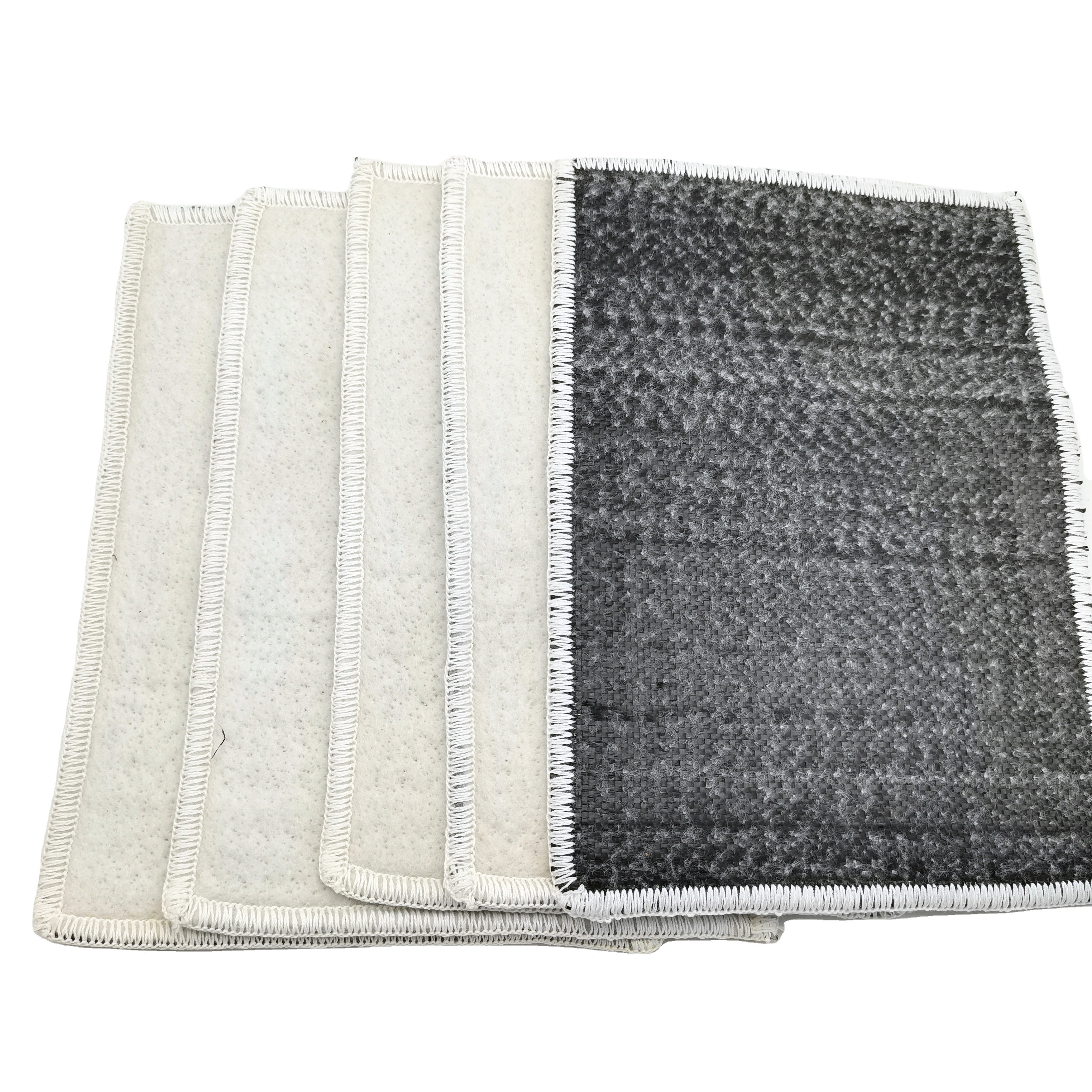

The Geosynthetic Clay Liner is a high-tech, green, composite waterproof material.
The product also has other titles, such as bentonite waterproof pad, bentonite anti-seepage blanket, bentonite waterproof felt, bentonite anti-leakage pad, bentonite blanket, bentonite pad.
APPLICATION
|
-Landfills
|
|
-Waste Water Pits
|
-Canals
|
-Floating Covers
|
|
|
-Lagoons
|
|
-Vertical Cutoff Walls
|
-Tank Lining
|
-Hydraulic Structure
|
|
|
-Bund Lining
|
|
-Basement Lining
|
-Roof Lining
|
-Drip Irrigation Ponds
|
|
|
-Fish Farm Lining
|
|
-Mud Pits
|
-Ponds and Reservoirs
|
|
|
Specification
|
Inspection Item
|
Testing Procedure
|
Technical Index
|
|
Bentonite mass for unit area
|
ASTMD5993
|
≥5.5kg/m2
|
|
Expansion coefficient
|
ASTMD5890
|
≥ 26mL/2g
|
|
Low temperature ductility
|
ASTMD5898
|
No impact at -35°C
|
|
Thickness
|
ASTMD5892
|
≥6.4mm
|
|
Tensile strength
|
ASTMD4632
|
≥540N
|
|
Peel strength of concrete face
|
ASTMD4632
|
≥3.0 KN/ m2
|
|
Peel strength
|
ASTMD4632
|
≥68N
|
|
Indicated flow
|
ASTMD5887
|
≤1 × 10-8m3/m2/sec
|
|
Hydrostatic pressure resistance
|
ASTMD5888
|
≥70
|
|
Permeability
|
ASTMD5887
|
≤5 × 10-12cm/sec
|
|
Extension rate
|
ASTMD5896
|
≥20
|
|
Puncture strength
|
ASTMD5894
|
≥635N
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
