Quick Details
-
Mold Height(mm):
-
250 - 620 mm
-
Ejector Stroke(mm):
-
150 mm
-
Ejector Force(kN):
-
70 kN
-
Theoretical Shot Volume(cm³):
-
792 cm³
-
Injection Rate (g/s):
-
173 g/s
-
Injection Weight (g):
-
720 g
-
Screw Speed (rpm):
-
0 - 180 rpm
-
Screw diameter (mm):
-
60 mm
-
Screw L/D Ratio:
-
21
-
Distance between Tie Bars:
-
620mm*620mm
-
Weight (KG):
-
87000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
610 mm
-
Model Number:
-
FHG300
-
Brand Name:
-
FUHONG
-
Power (kW):
-
30 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
Screw Diameter:
-
55MM-65MM
-
Injection pressure:
-
167mpa-233mpa
-
Mould thickness:
-
250mm-620mm
-
Ejector stroke:
-
150mm
-
Heating power:
-
18.3kw
-
Machine dimension(L*W*H):
-
6.11m*.77m*2.2m
-
Machine weight:
-
8.7ton
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
620mm
-
Distance between Tie Bars(Height)(mm):
-
620mm
-
Plasticizing Capacity(g/s):
-
173
-
Mold Height(mm):
-
250 - 620 mm
-
Ejector Stroke(mm):
-
150 mm
-
Ejector Force(kN):
-
70 kN
-
Theoretical Shot Volume(cm³):
-
792 cm³
-
Injection Rate (g/s):
-
173 g/s
-
Injection Weight (g):
-
720 g
-
Screw Speed (rpm):
-
0 - 180 rpm
-
Screw diameter (mm):
-
60 mm
-
Screw L/D Ratio:
-
21
-
Distance between Tie Bars:
-
620mm*620mm
-
Weight (KG):
-
87000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
610 mm
-
Model Number:
-
FHG300
-
Brand Name:
-
FUHONG
-
Power (kW):
-
30 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
Screw Diameter:
-
55MM-65MM
-
Injection pressure:
-
167mpa-233mpa
-
Mould thickness:
-
250mm-620mm
-
Ejector stroke:
-
150mm
-
Heating power:
-
18.3kw
-
Machine dimension(L*W*H):
-
6.11m*.77m*2.2m
-
Machine weight:
-
8.7ton

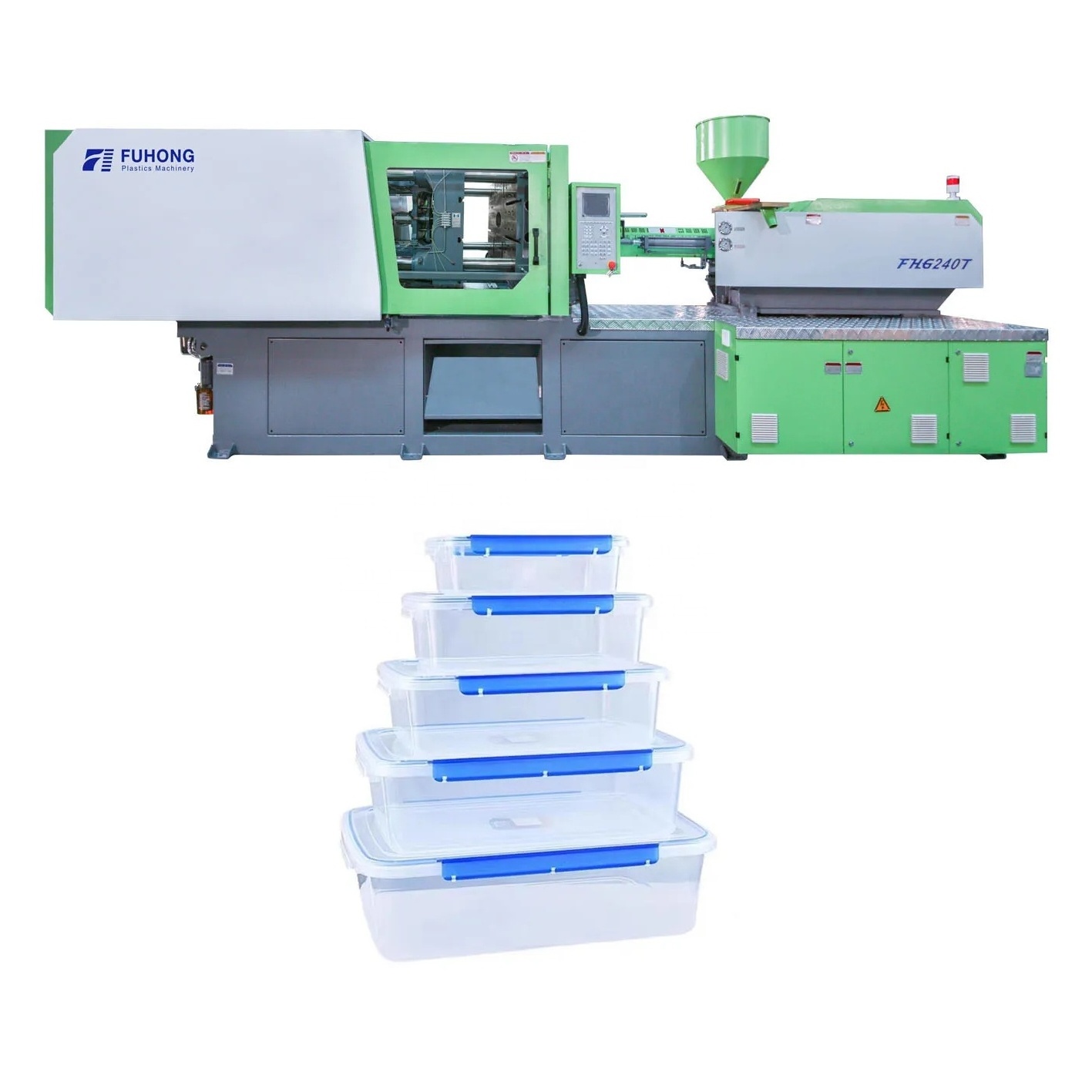

Fuhong injection molding machine Features:
Control system:
*Multiple languages available
*Manual,semi-automatic,full automatic mode
*Can provide EUROMAP robot interface.
*Automatic movement monitoring with alarm and fault diagnosis.
*Function of slope setting can set the start and stop of movements,so as ensure the smooth movement.
Hydraulic system:
*The manual plug valve hydraulic system make the machine having quick and smooth motion response
*double proportional valve control pressure and flow
*Hydraulic oil cooling device
*High-performance imported hydraulic unit with optimizing allocation
*The fuel tank has a big opening hole so can be cleaned easily.
Injection system:
*APID temperature control,precise temperature control of barrel.
*There are three or four size of screw&barrel.with optinal design,respectively,nitride,hard plating,dual-metal,which is suitable for different processes of a variety of plastics,and the choice of product.
*double -guided bar supports,double-balanced rapid injection
*The high-torque hydraulic motors offer a stable plasticizing capacity,high-precision electronic device position detection enable accurate measurement.
Clamping system:
* Security doors fitted ithhydraulic,mechanical and electrical interlocking triple safety device when the safety door is open,the machinecannot clamp.
*Low pressure mold protection device to prevent damage of platen.
*Plywood,frame,the bridge,and the template attached structure,the finite element analysis.
*Hydraulic ejector,adjustable stroke,and top speed of ejector in and out,for multiple actions.
*Flexible tie bar nut eliminates fatigue fracture,assure the working life of the tie bars.
*Automatic adjustment.The replacement of different molds,the parameters set by clamping force to achieve the automatic adjustment.
High-precision electronic detection device,multi-stage contrl of opening stroke,speed and location,location accuracy.
|
ITEM |
UNIT |
FHG300 |
|||
|
Injection Unit
|
Screw Diameter |
mm |
55 |
60 |
65 |
|
S crew L/D Ratio |
L /D |
2 2.9 |
2 1 |
1 9.4 |
|
|
Injection Volume |
cm 3 |
665 |
792 |
928 |
|
|
Shot Weight |
g |
605 |
720 |
845 |
|
|
Injection Speed |
g /s |
1 40 |
1 73 |
2 03 |
|
|
Injection Pressure |
Mpa |
233 |
196 |
167 |
|
|
Clamping Unit
|
S crew Speed |
r /min |
0 -180 |
||
|
Clamping Force |
KN |
3000 |
|||
|
Opening Stroke |
mm |
620 |
|||
|
Mould Thickness(Min-Max) |
mm |
2 5 0- 620 |
|||
|
Space Between Tie-Bars |
mm |
620×620 |
|||
|
Ejector Force |
KN |
70 |
|||
|
Ejector Stroke |
mm |
1 50 |
|||
|
Others
|
P ump Pressure |
M pa |
1 6 |
||
|
Motor Power |
KW |
30 |
|||
|
Heating Power |
KW |
18.3 |
|||
|
Machine Dimension |
m |
6.11×1.77×2.40 |
|||
|
Machine Weight |
Ton |
8.7 |
|||
