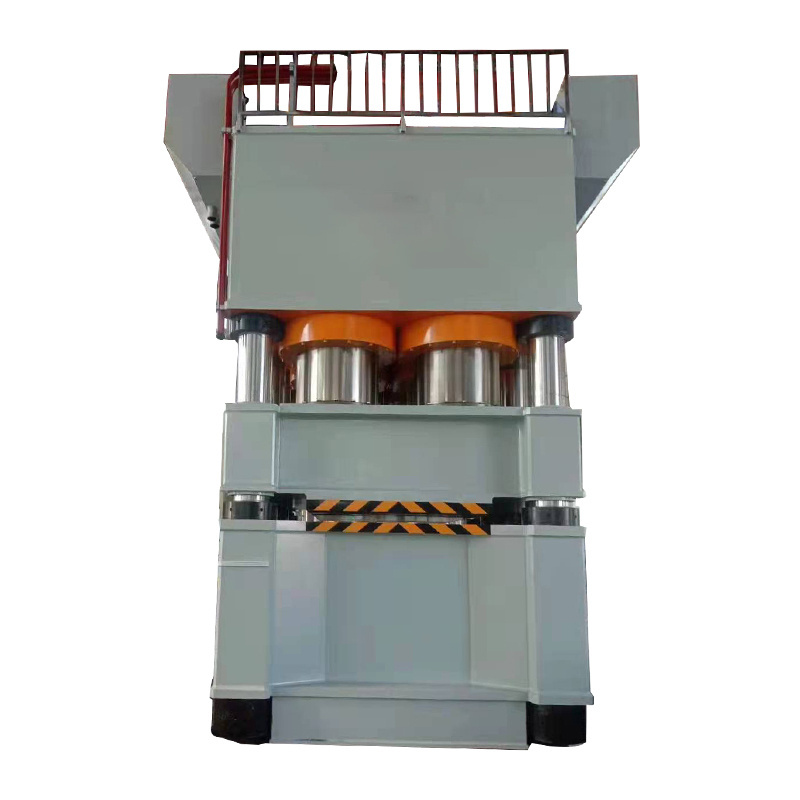

400 ton animal salt mineral licking block brick salt lick powder metallurgy four column hydraulic press

Best Price Y32-100T Hydraulic Press Whellbarrow/Tray Making Machine

Product introduction

Open Back Press with Fixed Bed, a kind of thin sheet metal processing universal press imported advanced technology of AIDA company in Japan, which is suitable for shearing, punching, blanking, bending and shallow drawing. The structural feature is as follows:

I. Brief introduction of structure

1,The frame is welding with whole steel plate which has high rigidity, reasonable structure and beautiful design.

2,The press adopts the vertical crankshaft structure. The distance of fulcrum is short and the crank is rigid.

Driving gear is installed into the frame and gear is immersed in oil reservoir. Customer could choose Electromagnetic governor(Wannan motor factory), which is stepless speed regulation within a certain range and enlarge the area of craft.

3,The press adopts Italy low inertia combined wet friction clutch and brake made in Shanghai OMPI, which has little passive inertia, low energy consumption, reliable interlock of clutch and brake and long longevity.

4,The slide is a whole cast form construction which adopts hydraulic overload protector made in Showa, Japan with agile and reliable action. After overload, it can reset automatically to reduce the down time and improve the availability of press. High pressure oil seal which is imported from German is installed in slide high pressure cylinder.

5,The shut height adopts electric adjustment, which has digital display. Its display is 0.10mm.

The press adopts hexahedral rectangle lengthen gib, which has high guiding precision and steady precision.

The press has pneumatic balancer, which reduce the second stroke. It runs smoothly to improve the dynamic precision of press.

6,The control part adopts PLC from Mitsubishi, which is efficient to guarantee the reliability of control part.

7,The press adopts dual valve from TACO, Japan, which can guarantee the safety and reliability of clutch.

8,The press adopts cam controller which be combined with proximity switch. It can send signal exactly within the range of 360°and control the criterion of various actions and the harmony of assist machine to improve the reliability of press. Besides, the press has two-hand operating button and foot pedal switch, which can realize Continuous, Single and Inch mode. JH21 C frame die stamping metal sheet press machine alibaba electrical metal box making machine 100 ton 200 ton power press machine make electrical metal box Metal Stamping Production Line for manufacturing of Metal Junction boxes punching press machine 200 ton for junction box making machine

400 ton animal salt mineral licking block brick salt lick powder metallurgy four column hydraulic press

II.Guideline of Technical performance

The model JH21-315 press is manufactured according with accuracy of open press (JB/T 6580-93) and technical requirement of open press (JB/T 6580.1-1998). The security is according with the security and technical terms standard of forging machinery (GB17120-1997) and the security and technical requirement standard of mechanical press (JB3350-93). 200ton JH21 pneumatic type automatic power press machine for making junction box Automatic Punching machine for making metal electrical box

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Q1. Trade company or manufacturer?
A: We are manufacturer and have specialized in machine industry for many years.

Q2. How to choose the suitable machine model?

Three key words: max thickness, max length, processing material

Q3. Is it easy to operate for the new user ?
A: Ever y machine all is with the opreration manual, and we can also provide you with online support. Traninning and guidence is available to your country.

Q4. What should I do when the machine is in trouble?
A: Take photos and videos to us, we will provide you with the timely help.

Q5. How to trust your machine quality ?

We warmly welcome you to visit our factory in Nanjing. And we have acquired ISO and CE certification.

Q6.How to pay?

Alibaba credit protection order, T/T（30% deposit with 70% balance）

Q7.Delivery time?

15-20days after we receive your order deposit and confirm all details.

Q8.MOQ?

1 PIC
