Quick Details
-
Brand Name:
-
TANFON
-
Model Number:
-
TC20A MPPT
-
Work Time (h):
-
24hours
-
Max PV Power:
-
98%
-
Max PV Voltage:
-
12v/24v
-
Certificate:
-
CE
-
Warranty:
-
3years, 3years
-
Charge mode:
-
solar PV POWER
-
Color:
-
Green
-
System voltage:
-
96VDC
-
Rated Current:
-
100Amp MAX
-
Control Mode:
-
MPPT/PWM
-
Input Voltage range:
-
200V - 180V
Quick Details
-
Type:
-
MPPT, PWM
-
Application:
-
Charger Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TANFON
-
Model Number:
-
TC20A MPPT
-
Work Time (h):
-
24hours
-
Max PV Power:
-
98%
-
Max PV Voltage:
-
12v/24v
-
Certificate:
-
CE
-
Warranty:
-
3years, 3years
-
Charge mode:
-
solar PV POWER
-
Color:
-
Green
-
System voltage:
-
96VDC
-
Rated Current:
-
100Amp MAX
-
Control Mode:
-
MPPT/PWM
-
Input Voltage range:
-
200V - 180V

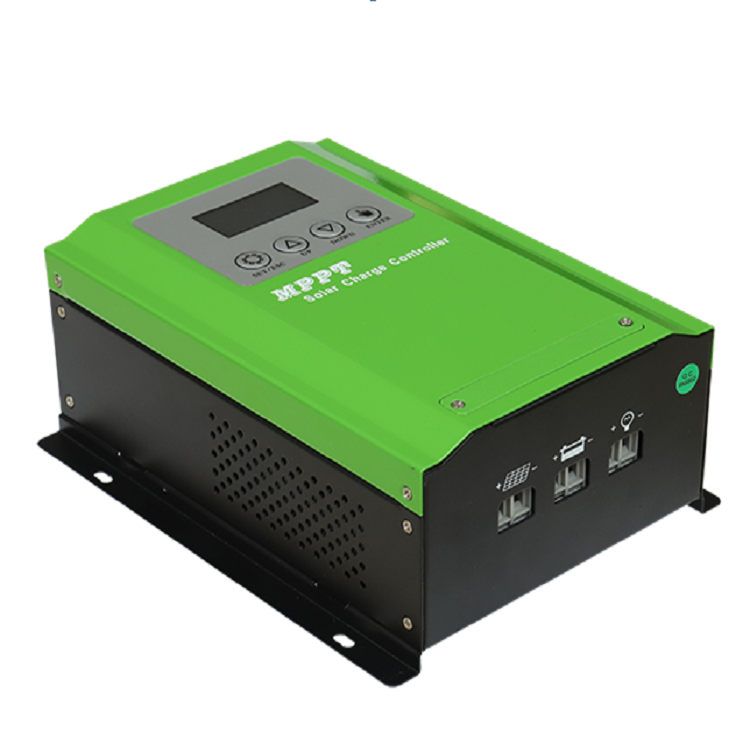

smart solar charge controller mppt solar charge boost controller
Product Parameters
|
Model
|
TC20A MPPT
|
TC30A MPPT
|
TC40A MPPT
|
TC50A MPPT
|
||||
|
Nominal System Voltage
|
12/24/36/48VDC or Auto
|
|
|
|
||||
|
Battery Type
|
Lead-acid Battery :Sealed(Default)/Gel/Flooded/User
Lithium Battery :LiFePO4/ Li(NiCoMn)O2/ User |
|
|
|
||||
|
Rated charge current
|
20A/30A/40A/50A/60
A 50A-80A 100A-120A |
|
|
|
||||
|
Rated charge Power
|
12v/24v (AUT)
|
12v/24v (AUT)
|
12v/24v (AUT)
|
12v/24v/48v/96v (AUT)
|
||||
|
Max. PV open circuit voltage
|
150V① 138V②
|
|
|
|
||||
|
MPP Voltage Range
|
(Battery Voltage +2V) ～108V②
|
|
|
|
||||
|
Tracking efficiency
|
≥99.5%
|
|
|
|
||||
|
Max. conversion efficiency
|
98.3%
|
98.6%
|
98.5%
|
98.6%
|
||||
|
Full load efficiency
|
97.8%
|
98.0%
|
98.0%
|
98.0%
|
||||
|
Temperature compensate coefficient
|
－3mV/℃/2V(Default)
|
|
|
|
||||
|
Self-consumption
|
98mA/12V;60mA/24V;50mA/36V;46mA/48V
|
|
|
|
||||
|
Grounding
|
Common negative grounding
|
|
|
|
||||
|
Relay
|
Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
|
|
|
|
||||
|
RS485 interface
|
RS485(5VDC/200mA, Two RJ45 ports in parallel) ③
|
|
|
|
||||
|
LCD backlight time
|
Default:60S,Range:0～999S(0S:the backlight is ON all the time)
|
|
|
|
||||
|
①At minimum operating environment temperature;
②At 25℃ environment temperature;
③When connect the controller to external
devices,only one of the ports can be used; when use multiple controllers in parallel, the port are for cascaded use |
|
|
|
|
||||
|
Ambient temperature range
|
-25℃～+60℃(Derate above 45℃)
|
|
|
|
||||
|
LCD temperature range
|
-20℃～+70℃
|
|
|
|
||||
|
Storage temperature range
|
-30℃～+85℃
|
|
|
|
||||
|
Relative humidity range
|
5% to 95% (N.C.)
|
|
|
|
||||
|
Enclosure
|
IP20
|
|
|
|
||||
|
Pollution degree
|
PD2
|
|
|
|
||||
|
Dimension(mm)
|
276*241*100
|
276*241*100
|
276*241*100
|
276*241*100
|
||||
|
Weight
|
3kg
|
3kg
|
3kg
|
3kg
|
||||
