Quick Details
-
Dimension(L*W*H):
-
according to different molde
-
Weight:
-
1500 KG
-
Place of Origin:
-
Guangdong, China
-
Voltage:
-
220/380
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Raw material:
-
Wheat flour
-
Final product:
-
cookies
-
Keywords:
-
wire-cut and deposit cookie machine
-
Capacity:
-
80-1500kgs per hour
-
Package:
-
Wooden Package Case
-
Feature:
-
High Efficiency Easy Operate
-
Advantage:
-
Higher accuracy weight save customer cost
-
Production Line:
-
chocolate chips cookie production line
Quick Details
-
Machinery Capacity:
-
80-1500kgs per hour
-
Brand Name:
-
SkywinBAKE
-
Year:
-
2022
-
Dimension(L*W*H):
-
according to different molde
-
Weight:
-
1500 KG
-
Place of Origin:
-
Guangdong, China
-
Voltage:
-
220/380
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Raw material:
-
Wheat flour
-
Final product:
-
cookies
-
Keywords:
-
wire-cut and deposit cookie machine
-
Capacity:
-
80-1500kgs per hour
-
Package:
-
Wooden Package Case
-
Feature:
-
High Efficiency Easy Operate
-
Advantage:
-
Higher accuracy weight save customer cost
-
Production Line:
-
chocolate chips cookie production line
Skywin Fortune Cookie Making Making Machine Production Line
This automatic cookie production line made by stainless steel, PLC touch creen control system, the machine are easy operating, just like oprerating a smart phone.
This cookie prodcution line can make both wire cut and deposit cookies, there are a lot of cookies designs for your choice, different design only by changing the defferent moulds.
The cookie moulds can be customized we provide you two sets of cookie moulds for free.
Our cookie production line has different model: which is 620,800,1000,1200mm, depend on capacity.
The capacity is from 200-1200kg/h for different modle.
If you tell us the capacity you want, the workshop size, we will provide you the suitable sulotion for you .
A whole cookie production line consist of:
| 1.Horizontal dough mixer, 250kg/batch, vertical dough mixer 500kg/batch |
| 2.Cookies forming machine |
| 3.Salt/sugar spreading machine |
| 4.Oven |
| 5.Oil spraying machine |
| 6.Turning machine 180degree or 90degree design as per the plant length |
| 7.Cooling conveyor |
| 8.stacking machine (start wheel stacker or penny stacker) |
9.Packing table |
Workers: 3-5 workers for operating machines, 15-20workers for packing.
Guarantee for 1 year, along with recommended spare parts for 1 years free operation.
Provided training, installation and commissioning for 20-30 days, the buyer has to pay round-trip tickets, food and hotel for 2-3 technicians.
The following picture shows dough truck on the dough tipping machine,
connect to the dough cutting machine, and with a dough conveyor send the dough to the cookie machine automatically.

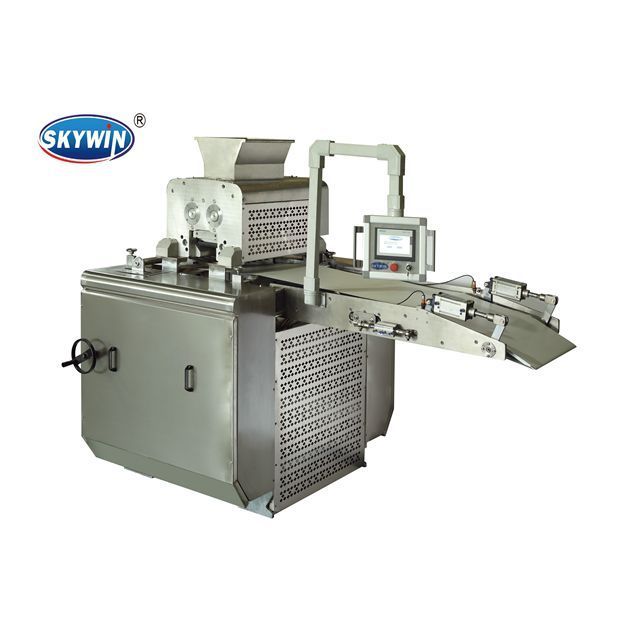

Wire cuting and deposit cookie machine
1. 304 Stainless steel Cover, thickness 1.5mm
2. Rubber roll diameter 165mm(endless cotton belt driver), feeding roll diameter 130mm, with groove
3. Equipped enter stove connection extension arm, endless cotton belt thickness 2mm, pneumatic tension
4. Dynamic structure, main motor power 3kw, cotton belt motor power 1.1kw, enter stove conveyor belt power 0.75kw, wire cut power 1.5kw
5. Provided two sets of cookies moulds.
6. Dimension: 3500 x 1450 x 1500mm (L x W x H)
7. Capacity: wire cut 500-600 kg per hour, deposit 300-400 kg per hour
8. Speed: wire cut 60/min, deposit 30/min
9. DELTA/SCHNEIDER electric parts
10. DELTA servo motor & gearbox
11. DELTA/ SIEMENS PLC touch screen control
Wire cut cookies & Deposit cookies
Gas Oven
SS cover, oven length 15-65m
We provide gas oven, electric oven, diesel oven for your choices.
Cooling conveyor & Packing Table:
This Cooling conveyor is for cooling the cookies after baking.
Packing table is the also packing conveyor for the workers easy to pick up the cookies, then do the package for cookies in another machines
Cooling conveyor 25m (according to layout) , packing table 15m
1. Model LQ- 1000
2. total length 25m
3. Food grade PU belt width 1000 mm
4. Plc touch screen control
Packing, put the cookies into the box, or you can also use our packing machine to pack the cookie into a bag
Cookie Molds (We provide two sets of cookie moulds for free)
The following are the samples of cookie moulds,
The moulds are customized.
