Quick Details
-
Voltage:
-
3-phase 380V 50Hz /3-phase 220V 60Hz
-
Power:
-
14.12KW
-
Dimension(L*W*H):
-
1650*1600*1550mm
-
Weight:
-
2200
-
Spindle Diameter:
-
75mm
-
Machining Diameter Range:
-
5-64mm
-
Maximum Machining Pitch Range:
-
P0.5-P8mm
-
Width Of Thread Die Range:
-
50-150mm
-
Diameter Of Thread Die Range:
-
170-210mm
-
Spindle Center Distance:
-
170-300mm
-
Spindle Rotation Speed:
-
16/26/38/55/90/min
-
Rolling Power:
-
11KW
-
Hydraulic Power:
-
3.0KW
-
Cooling Power:
-
0.12KW
Quick Details
-
Place of Origin:
-
Hebei, China
-
Application:
-
Processing plant
-
Brand Name:
-
JWD
-
Voltage:
-
3-phase 380V 50Hz /3-phase 220V 60Hz
-
Power:
-
14.12KW
-
Dimension(L*W*H):
-
1650*1600*1550mm
-
Weight:
-
2200
-
Spindle Diameter:
-
75mm
-
Machining Diameter Range:
-
5-64mm
-
Maximum Machining Pitch Range:
-
P0.5-P8mm
-
Width Of Thread Die Range:
-
50-150mm
-
Diameter Of Thread Die Range:
-
170-210mm
-
Spindle Center Distance:
-
170-300mm
-
Spindle Rotation Speed:
-
16/26/38/55/90/min
-
Rolling Power:
-
11KW
-
Hydraulic Power:
-
3.0KW
-
Cooling Power:
-
0.12KW
Product Description

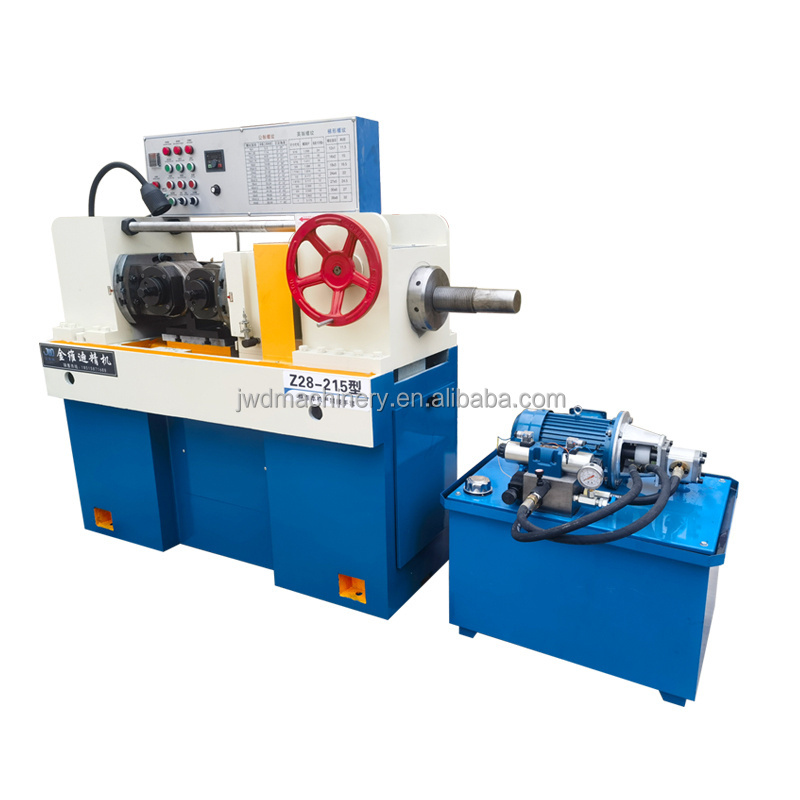

Automatic Hydraulic Thread Rolling Machine
The thread rolling machine is mainly used for rolling workpieces of various specifications, such as building wall thread, top drag, trapezoidal thread and combined thread. It has the advantages of simple operation and high efficiency. This machine is mainly used for rolling various external threads, including ordinary threads, trapezoidal threads and modular threads. It can also be used for hydraulic processing, such as forming, straightening, calendering and knurling of workpieces.
| Double Axis Hydraulic Thread Rolling Machine | ||
| Parameter | Z28-215 | Z28-185 |
| Machining Diameter Range | 5-64mm | 5-42mm |
| Maximum Machining Pitch Range | 0.5-8.0mm | 0.5-6.0mm |
| Width Of Thread Die Range | 50-150mm | 50—100mm |
| Diameter Of Thread Die Range | 170-210mm | 120-170mm |
| Spindle Diameter | 75mm | 54mm |
| Spindle Center Distance | 170-300mm | 170-260mm |
| Spindle Rotation Speed | F requency Control 0-50 / min | F requency Control 0-50 / min |
| Rolling Power | 11KW | 7.5kw |
| Hydraulic Power | 3.0KW | 3.0KW |
| Cooling Power | 0.12KW | 0.12KW |
| Maximum Rolling Pressure | 200KN | 180KN |
| Size | 1650X1600X1550mm | 1600*1550*1500mm |
| Weight | 2200KG | 1800KG |
Packaging & Shipping
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.In order to better ensure the timely and safe delivery of your goods, we will give you the best quality service.
FAQ
1.How long is the warranty good for?
The whole machine is guaranteed for 1 year and the key parts are guaranteed for 2 years from the date of spontaneous shipment.
2.What payment methods do we accept?
We support bank cards, credit cards, T/T, etc.
3.What is our delivery time?Normal delivery within 3-7 working days, special models can contact customer service consultation
4.After-Sales ServiceTraining how to instal the machine, training how to use the machine. Engineers available to service machinery overseas.
