Quick Details
-
Brand Name:
-
WOBO
-
Product name:
-
CO2 rock Cracking system
-
Working principle:
-
Gas expansion
-
Drill hole diameter:
-
130mm
-
Drill hole depth:
-
6m
-
Hole pitch:
-
2m
-
Release pressure:
-
600Mpa
-
Steel pipe diameter:
-
108mm
-
Steel pipe length:
-
2.2m
-
Steel pipe weight:
-
97kg
Quick Details
-
Weight (KG):
-
3500
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WOBO
-
Product name:
-
CO2 rock Cracking system
-
Working principle:
-
Gas expansion
-
Drill hole diameter:
-
130mm
-
Drill hole depth:
-
6m
-
Hole pitch:
-
2m
-
Release pressure:
-
600Mpa
-
Steel pipe diameter:
-
108mm
-
Steel pipe length:
-
2.2m
-
Steel pipe weight:
-
97kg
Mining Gas Blasting Equipment Carbon Dioxide Blasting Equipment
Best Choice CO2 Blasting Machine Rock High-Pressure Mining Excavation CO2 Rock Blasting
Product Description
The Carbon Dioxide Mining Device is a novel equipment used in various mining operations, quarrying for rock splitting, and extracting coal mine gas, serving as an alternative to explosive blasting.
Constructed with high-strength metal tubes made of 16MuDr alloy, the Carbon Dioxide Mining Device is pressurized with liquid carbon dioxide at over 7.35 MPa within the tubes. Equipped with components such as a gasification heating device and a pressure-regulated blasting mechanism at the tube end, this device operates by activating the gasification heating device through a low-pressure mining intrinsically safe detonator. This process rapidly expands the liquid carbon dioxide within the metal tube into carbon dioxide gas, increasing its pressure several hundred times within 4 milliseconds. As a result, the main pipe of the
mining device experiences a sudden increase in pressure, breaking through the pressure-regulated blasting mechanism to release the gas through the vent holes at high energy levels. This effectively displaces the blasted materials, achieving the desired effect of rock splitting, quarrying, and coal extraction.
Constructed with high-strength metal tubes made of 16MuDr alloy, the Carbon Dioxide Mining Device is pressurized with liquid carbon dioxide at over 7.35 MPa within the tubes. Equipped with components such as a gasification heating device and a pressure-regulated blasting mechanism at the tube end, this device operates by activating the gasification heating device through a low-pressure mining intrinsically safe detonator. This process rapidly expands the liquid carbon dioxide within the metal tube into carbon dioxide gas, increasing its pressure several hundred times within 4 milliseconds. As a result, the main pipe of the
mining device experiences a sudden increase in pressure, breaking through the pressure-regulated blasting mechanism to release the gas through the vent holes at high energy levels. This effectively displaces the blasted materials, achieving the desired effect of rock splitting, quarrying, and coal extraction.
|
Carbon Dioxide Fracturing Equipment Full Set Components Table
|
|
|
|
|
||||
|
No.
|
Category
|
Name
|
Quantity
|
Remarks
|
||||
|
1
|
Main Equipment
|
Liquid Storage Pipe
|
50 sets
|
1M/0.8m
|
||||
|
2
|
|
Filling Valve
|
|
Supporting
|
||||
|
3
|
|
Release Head
|
|
2 holes
|
||||
|
4
|
|
Stop Cones
|
10 sets
|
-
|
||||
|
5
|
|
Pulling Pipe
|
|
-
|
||||
|
6
|
Consumables
|
Pressure Relief Plates
|
100 pieces
|
Consumable
|
||||
|
7
|
|
Gaskets
|
|
Consumable
|
||||
|
8
|
|
Heating Device
|
|
Consumable
|
||||
|
9
|
Blasting Equipment
Either |
Explosion-proof Initiator
|
1 piece
|
Intrinsically Safe
|
||||
|
10
|
|
High-energy Initiator
|
1 piece
|
Non-coal Mines
|
||||
|
11
|
|
Blasting Cord
|
2 reels
|
100M/reel
|
||||
|
12
|
Charging System
|
Charging Machine
|
1 set
|
Complete
|
||||
|
13
|
Non-destructive Handling System
|

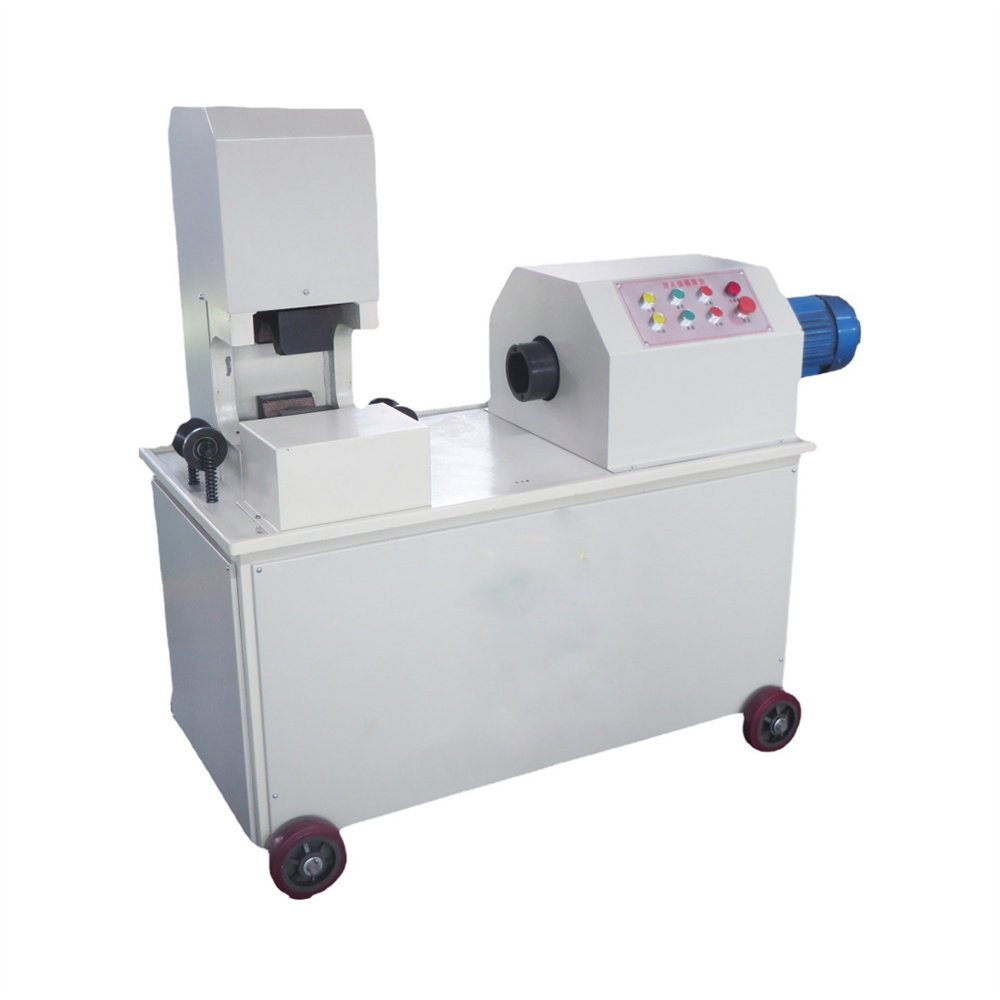

Disassembly Machine
|
1 set
|
Complete
|
||||
|
14
|
|
Carbon Dioxide Storage Tank
|
1 set
|
Effective Volume 499L
|
||||
|
15
|
Auxiliary Equipment
|
Tool Kit
|
1 set
|
Assembly Pliers, Hex Wrenches, Multimeter, etc.
|
||||
|
16
|
|
Display Rack
|
1 unit
|
-
|
||||
|
17
|
|
Simple Hoisting Equipment
|
1 set
|
-
|
||||
