CLASSIFICATION OF TEMPERATURE NORMALLY USED FOR VARIOUS NEEDS
0 °C to + 22°C: for Medicine storage, Processing Room, Packaging room etc.
-5 °C to + 5 °C: basically for Pre cooling needs
-10 °C to -20 °C: for Freezer Storage
-25 °C to -30 °C: this is for Quick Freeze for Low Temperature Storage
-35 °C to -40 °C: for Extremely Quick Freeze or Blast Freezer needs
- Product Details
- {{item.text}}
Quick Details
-
Cooling Capacity:
-
50ton
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BRD
-
Voltage:
-
Customized
-
Power:
-
220V/380V
-
Dimension(L*W*H):
-
customized, As per your requirements
-
Weight:
-
Customized
-
Cooling approach:
-
Water cooled or air cooled
-
Refrigerating unit:
-
Bitzer , copeland compressor,evaporator ,condenser etc.
-
Usage:
-
Meat And Fish Frozen
-
Door type:
-
Swing Door
-
Material:
-
color steel
-
Thickness of panel:
-
50mm 75mm 100mm 120mm 150mm
-
Functions:
-
Fresh Preservation
-
door type:
-
hinged door, sliding door, standard return door
-
Certification:
-
CE,ISO9001,SASO,SGS, CE,ISO9001,SASO,SGS
-
Product name:
-

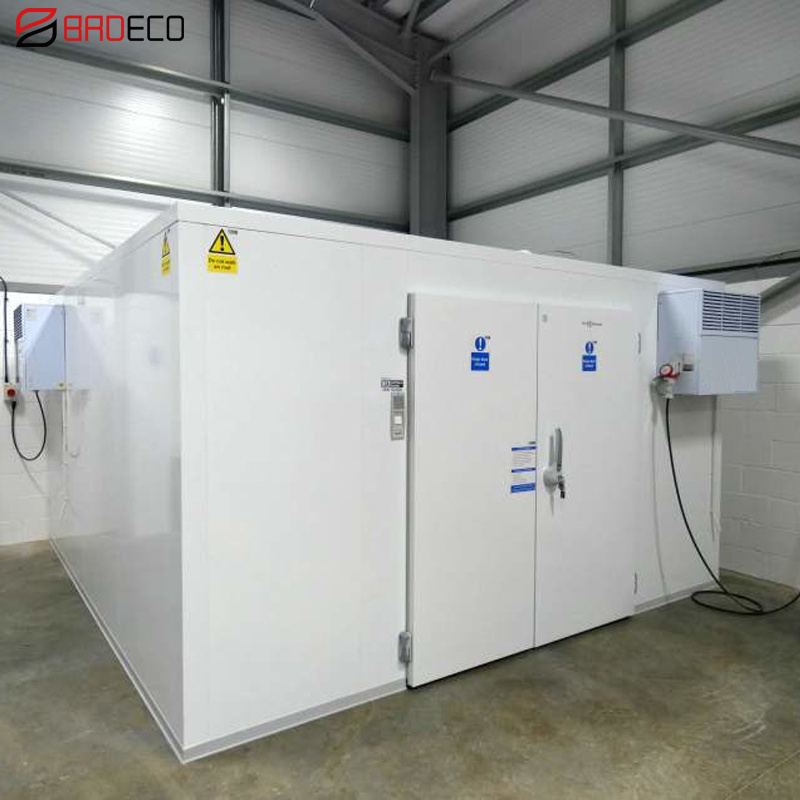

High Quality Mini Frozen Cold Room/Cold Storage For Meat And Fish
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Malaysia
-
Showroom Location:
-
Malaysia
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Marketing Type:
-
New Product 2020
Quick Details
-
Temperature:
-
-45C~+20C
-
Compressor brand:
-
Xumei
-
Panel Thickness:
-
100mm
-
Cooling Capacity:
-
50ton
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BRD
-
Voltage:
-
Customized
-
Power:
-
220V/380V
-
Dimension(L*W*H):
-
customized, As per your requirements
-
Weight:
-
Customized
-
Cooling approach:
-
Water cooled or air cooled
-
Refrigerating unit:
-
Bitzer , copeland compressor,evaporator ,condenser etc.
-
Usage:
-
Meat And Fish Frozen
-
Door type:
-
Swing Door
-
Material:
-
color steel
-
Thickness of panel:
-
50mm 75mm 100mm 120mm 150mm
-
Functions:
-
Fresh Preservation
-
door type:
-
hinged door, sliding door, standard return door
-
Certification:
-
CE,ISO9001,SASO,SGS, CE,ISO9001,SASO,SGS
-
Product name:
-
High Quality Mini Frozen Cold Room/Cold Storage For Meat And Fish
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Malaysia
-
Showroom Location:
-
Malaysia
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Marketing Type:
-
New Product 2020
Product Description
MAJOR APPLICATIONS OF COLD ROOM / COLD STORAGE / BLAST FREEZER ARE
Agricultural product processing, mushroom cultivation, dairy products, Hotels, Hospitals, Pharmaceutical Processing & Logistics, Beer production and cooling. Large scale logistics storage, ship manufacturing and more...
Specification
|
|
Length(m)
|
|
less than 30m
|
|
|||
|
|
Width(mm)
|
|
960mm
|
|
|||
|
|
Thickness(mm)
|
|
50, 75 ,100 ,120 ,150 ,200mm
|
|
|||
|
Heat Conductivity(W/mk)
|
|
|
0.022
|
|
|||
|
Compressive Strength(N/cm2)
|
|
|
more than 196
|
|
|||
|
Tensile Strength (N/cm2)
|
|
|
more than 24.5
|
|
|||
|
Bending Strength (N/cm2)
|
|
|
more than 24.5
|
|
|||
|
Water Absorption(g/100cm2)
|
|
|
3
|
|
|||
|
Flame Resistance
(only for panels added flame retardant agent)
|
|
|
Self-extinguishing within 3 seconds after taking away flame
|
|
|||
|
|
|
|
Color painted steel
Stainless steel Galvanized steel |
|
|||
Details Images
Features and advantages
1.Convex structure: Panels are joined together by means of tongue and groove and locked together by cam- lock on each side of the panel to ensure air tight joints. There’s no need of rivets, thus reduce the cost and save the time.
2.Easier and faster installation,can be expended or removed in the future.
3.Perfect heat insulation: High density thermo insulated PUR foam up to 38kg/m³or above for perfect cold-room heat insulation efficiency.
4.Various surface steel choices: Color steel sheet/Stainless steel sheet/ Embossed aluminum sheet,The standard metal sheets are all smooth. Standard color of steel sheet is white-gray, others are natural metallic.
5.Low flammable: Low flammable PUR foam is used in the cold room panel, with fire retardant B2 grade.
6.Highly hermetical: Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool room or moisture inside the PU insulated panel for the best refrigeration and frozen storage result.
7.Load bearing: The compressive strength is150kpa above, people can walk on the floor panels and allow trolleys can go in and out.
Project
Why choose us
Our mission and strategy
Customer orientation
Satisfaction of our clients is our top priority and greatest value. We do our best to achieve it mainly thanks to our reliability, punctuality and high quality of our products and services. We treat our customers as our most valuable assets and the best long-term investment.
High Quality
We put maximum effort in order to create the best possible product or service, as we want them to fully meet our customers’ requirements. Our products are manufactured with the use of most modern technologies and production lines. We comply with ISO 9001:2000 standards. Materials used for production come from renowned European and domestic deliverers. Our priorities are durability, functionality and aesthetics.
Constant growth and diversification
More than 20 years of market experience enabled the company to achieve its strong position and brand. We do want to continue our present strategy of growth and diversification by introducing new products and ideas, as well as enter new markets in both industrial- and geographical sense.
Pre-Sales Service
* Design, produce, and full technical support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Engineers available to guid construction on site.
* Long life time quality assurance.
* Extend the service life of panels.
Sales to 71 Oversea Country
Our company has got ISO9001 and TUV certification, and our products has got CE certification. The distributor covers more than 21 cities in the world. BRD Group export sales net has covered over 35 countries and places, such as America, United Kingdom, Canada, Russia, Peru, Vietnam, Trinidad and Tobago, Australia, Sweden, and some other countries in Europe, Southeast Asia ,South Africa and other places. We sincerely hope to cooperate with you to create a double win situation.
