Quick Details
-
Dimension(L*W*H):
-
3200*1400*1500mm
-
Weight:
-
2 KG
-
Drilling Diameter:
-
70-120 m, 90 -140mm
-
drilling depth:
-
70-120 m
-
Drill pipe length:
-
2.00 meter
-
Drill pipe diameter:
-
60/76 mm
-
Flow capacity:
-
200 liter/min
-
Working pressure:
-
0.7-1.4Mpa
-
Hydraulic tank capacity:
-
140 liter
-
Power:
-
18.37KW
-
Dimensions:
-
3200*1400*1500mm
-
Drill system and operation:
-
Drill system and operation
Quick Details
-
Place of Origin:
-
China Shangdong
-
Brand Name:
-
D Miningwell
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3200*1400*1500mm
-
Weight:
-
2 KG
-
Drilling Diameter:
-
70-120 m, 90 -140mm
-
drilling depth:
-
70-120 m
-
Drill pipe length:
-
2.00 meter
-
Drill pipe diameter:
-
60/76 mm
-
Flow capacity:
-
200 liter/min
-
Working pressure:
-
0.7-1.4Mpa
-
Hydraulic tank capacity:
-
140 liter
-
Power:
-
18.37KW
-
Dimensions:
-
3200*1400*1500mm
-
Drill system and operation:
-
Drill system and operation
Product Description
| Size Information | |
| Drill depth | 70-120 m |
| Drilling Diameter | 90 -140mm |
| Drill system and operation | Drill system and operation |
| One-time advance length of the drill | 2m |
| Working Air Pressure | 0.7-1.4Mpa |
| Air consumption | 7-15m3/min |
| Lifting power | 4T |
| Dimensions | |
| Overall length | 3200 mm |
| Overall width | 1400 mm |
| Overall height | 1500 mm |
| Diesel engine | |
| Power | 18.37KW |

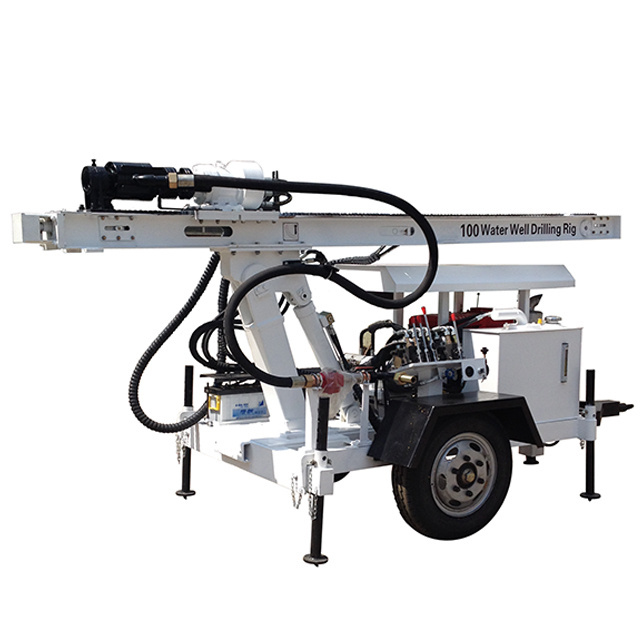

MW 100 trailer type water well drilling rig is a moveable, efficient and multipurpose rock drilling equipment. It has rotary drilling mode and percussive drilling mode with high-pressure air, foam and mud according to different geological conditions.
Application
It is widely used in Industrial & Agricultural Water Conservancy Engineering. It can drill rock well, monitoring well and
exploration well, especially apply to drilling geothermal heating hole. It also can satisfy the project demands of engineering
foundation reinforcement, pipe-following drilling on loose gravel stratum, cornerstone drilling and etc.
