Quick Details
-
Warranty:
-
3 months-1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HALOPOWER/OEM/ODM
-
Model Number:
-
HALO WB10 11 14.5
-
Torque:
-
60-120 N.M
-
Product Name:
-
electric hub motor
-
Motor:
-
10/11/14.5 inch Brushless Gear Motor
-
Feature:
-
low speed,high torque
-
Power:
-
250w-800w or customize
-
Weight:
-
6KG
-
Max Torque:
-
200N.m
-
Brake type:
-
V/Disc brake
-
Rated Voltage:
-
24v/36V/48V
-
Rated Speed:
-
6km-15km/h or customize
Quick Details
-
Speed(RPM):
-
90-120rpm
-
Continuous Current(A):
-
8-35A
-
Efficiency:
-
Ie 3
-
Warranty:
-
3 months-1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HALOPOWER/OEM/ODM
-
Model Number:
-
HALO WB10 11 14.5
-
Torque:
-
60-120 N.M
-
Product Name:
-
electric hub motor
-
Motor:
-
10/11/14.5 inch Brushless Gear Motor
-
Feature:
-
low speed,high torque
-
Power:
-
250w-800w or customize
-
Weight:
-
6KG
-
Max Torque:
-
200N.m
-
Brake type:
-
V/Disc brake
-
Rated Voltage:
-
24v/36V/48V
-
Rated Speed:
-
6km-15km/h or customize
Can make the general wheelbarrow to powerful labor-save electric wheelbarrow speed 6-15km/h. You can control the wheelbarrow
easily according to hold handlebar. This high torque geared hub motor is specially for wheelbarrow or scooter running on dirty
road like grass, sand, soil, water covered road with high perfermence and good climbing capacity.
Features of the product:
1. Applicable to electric trolley, electric wheelbarrow scooter electric motorcycle and so on.
2. Small current, high effciency and long working distance.
3. Free maintenance with planetary gear
4. Electric brake button switch
5. Cruise control button switch
We can customize according to your wheelbarrow size too.Different wheel size available.
2. Small current, high effciency and long working distance.
3. Free maintenance with planetary gear
4. Electric brake button switch
5. Cruise control button switch
We can customize according to your wheelbarrow size too.Different wheel size available.

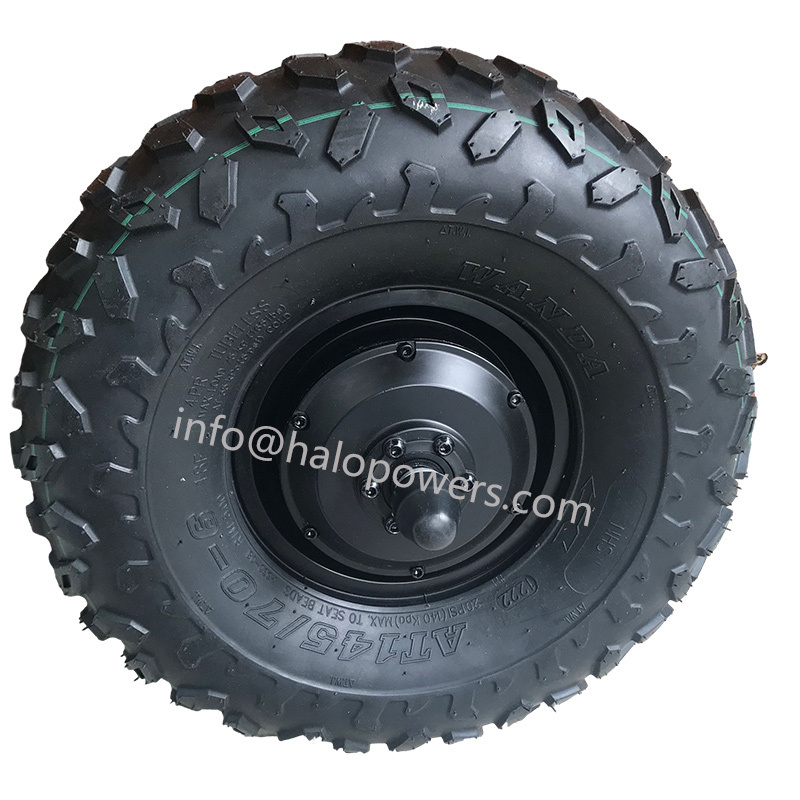

10inch 11inch 14.5inch brushless hub motor
Products Description
Specification
|
1
|
Motor
|
Motor Model
|
HALO WB10/11/14.5
|
|
|
|
2
|
|
Motor Type
|
BLDC Gear Motor
|
|
|
|
3
|
|
Position
|
/
|
|
|
|
4
|
|
Rated Voltage (V)
|
24V/36V/48V
|
|
|
|
5
|
|
Rated Power (W)
|
250w-500w
|
|
|
|
6
|
|
Rated Speed(km/h)
|
6-15km/h or customize
|
|
|
|
7
|
|
Rotating speed
|
60-100RPM
|
|
|
|
8
|
|
Rated Efficiency(%)
|
≥82
|
|
|
|
9
|
|
Hall Sensor
|
YES (5 hall sensor wires)
|
|
|
|
10
|
|
Surface Color
|
Black or customize
|
|
|
|
11
|
|
Reduction Rate
|
1:4
|
|
|
|
12
|
|
Suitable wheel size tyre (inch)
|
10/11/14.5
|
|
|
|
13
|
|
Net Weight (kg)
|
6
|
|
|
|
14
|
|
Rated torque
|
90/120/200N.m
|
|
|
|
15
|
|
Rated current
|
8A(peak:25A)
|
|
|
|
16
|
|
Brake Type
|
Disc brake/ Drum brake
|
|
|
|
17
|
|
Load Weight
|
150kg-300kg
|
|
|
|
18
|
|
Tire Model
|
14.5x7.00-6 Vacuum tire
|
|
|
|
19
|
Controller
|
15A/17A/22A/26A/35A
|
option for 250W/350W/500W/1000W/1500W
|
|
|
|
20
|
Display
|
LED integrated with thumb throttle
|
option
|
|
|
|
21
|
Throttle
|
Thumb throttle with LED
|
option
|
|
|
|
22
|
Brake
|
general Brake lever
|
option
|
|
|
|
23
|
Battery
|
36V/48V
(6Ah/8Ah/10Ah/13Ah/15Ah/20Ah etc)
|
Option
|
|
|
|
24
|
Charger
|
42V/54.6V (2A,3A,4A）
|
Option
|
|
|
Details Images
