Automatic Heat shrink l sealer tunnelpacking machine shrink wrap machine

Automatic Heat shrink l sealer tunnelpacking machine shrink wrap machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $2199

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220v

Place of Origin:: Henan, China

Brand Name:: Fusion

Dimension(L*W*H):: 1020*830*1980 mm

Weight:: 300 KG

Certification:: CE/ISO

Marketing Type:: New Product 2021

Product name:: Automatic L Sealer Shrink Packing Machine

Sealing type:: L Sealing

Film material:: Center folded POF film

Usage:: Box, Book, Food, Cosmetics,Electronic Product, Etc.

Name:: Heat Shrink Flow Wrapping Machine Shrink Packing Machine

Packing Speed:: 0-30 pcs/min

Sealing time:: 0.2-1S

Machine type:: Shrink sleeve wrapping machine

Function:: Box bottle full shrink wrapping machine

Max packing size:: Customized

Quick Details

Packaging Type:: Cartons, CANS, Bottles, Stand-up Pouch, Bags, Belt, Pouch

Packaging Material:: Plastic

Driven Type:: Electric

Voltage:: 220v

Place of Origin:: Henan, China

Brand Name:: Fusion

Dimension(L*W*H):: 1020*830*1980 mm

Weight:: 300 KG

Certification:: CE/ISO

Marketing Type:: New Product 2021

Product name:: Automatic L Sealer Shrink Packing Machine

Sealing type:: L Sealing

Film material:: Center folded POF film

Usage:: Box, Book, Food, Cosmetics,Electronic Product, Etc.

Name:: Heat Shrink Flow Wrapping Machine Shrink Packing Machine

Packing Speed:: 0-30 pcs/min

Sealing time:: 0.2-1S

Machine type:: Shrink sleeve wrapping machine

Function:: Box bottle full shrink wrapping machine

Max packing size:: Customized

Product Description

Factory Price Semi-auto Shrink packaging machine/Far infrared heat shrink wrap machine / Automatic Intermittent Side Sealer Shrink Wrap Machine Bse-6040a Jet Pe Film Shrink Packing Machine Film Wrapping Waterproof Craft Beautiful Recyclable Laminated

1) Introduction of shrink wrapping machine for carton box: 1 This series of sleeve type mantle contraction packing machine is suitable for the cans, mineral water, beer, glass bottle, beverage, paper carton etc all kinds of bottle, or tap tap heat shrinkable packaging;
2 Automatic mantle machine only artificial product placement, the machine automatically push, sealing and cutting, heat shrinkable
packaging series of actions, greatly reduce the labor intensity, improve work efficiency;
3 Machine tool, a set of film with alloy blade, plating, teflon, non-stick knife, sealing and cutting effect is good.

4 heat sealing knife used aluminum alloy + stainless steel heating tablets, a longer life;
Film frame with pull film machine, avoid using large volume PE brane sealing and cutting the problems;
6 Furnace adopts the impeller blades, hot air circulation effect is good;
7 Germany, using advanced technology, its main parts adopt domestic famous brand;
8 The machine performance is stable, long service life.

The heat shrink packaging machine is a fully automatic unmanned packaging machine, which is widely used in mass production packaging flow operations. It has high working efficiency, automatic film feeding and punching, automatic film sealing and cutting, and automatic winding of waste materials.

2) Technical parameters of shrink wrapping machine for carton box:

model	BTM-5038B	model	BSE-H6040
voltage	220V 50/60HZ	voltage	380V 50/60HZ
power	1.8 KW	power	22 KW
Package speed	2 - 5 pcs/minute	Package speed	0 -10 m/minute
Carrying capacity	30kg	Carrying capacity	1800×600×400 mm
Film wide/thickness	Max500mm/0.04-0.12mm	Heat room size	50KG
Max package size	450×270×350 mm
Min package size	250×50×60 mm	Suitable shrink film	PE,POF,PVC,PP film
Equipment size	1020×830×1980 mm	Equipment size	2800×840×1500 mm
Equipment weig	300kg	Equipment weig	280kg

Advantage of shrink wrapping machine for carton box: Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

This machine only needs to manually adjust the film guide system and feed conveyor platform, suitable for products of different widths and heigs

1. The sealing knife adopts fusion Teflon coating, which is anti-sticking and high temperature resistant; aluminum alloy knife edge, the sealing will not crack, scorch, no smoke, 0 pollution

2. The temperature controller adopts digital display temperature controller, built-in PID function, the sealing knife temperature is extremely sensitive and accurate, and can be set at will

3. Automatic feeding, the length can also be adjusted and controlled by the combination of electric eye and timer 4. Sealed with automatic protection function to prevent accidental cutting of packaging 5. The whole set of machine is truly connected to the unmanned operation of the production line 6. Use original imported electrical components to reduce the failure rate

7. Adopt electrical appliances such as OMRON to realize the integration of machine, electricity and gas

Feature of shrink wrapping machine for carton box

1. This machine is a classic, adopts advanced packaging technology, especially suitable for shrinking PP, POF and other environmentally friendly materials

2. The lower temperature adjustment function can solve the drawback of poor shrinkage at the bottom of the product

3 . The conveying adopts solid roller, plus imported silicone sleeve, which will not be deformed after long time use

4. The conveyor adopts Taiwan's high-power motor and imported high-quality accessories, the machine performance is stable and works 24 hours a day for 365 days 5. Lengthen the hot air duct (120mm), good shrinkage effect

6. The unique external heating tube installation method is convenient for maintenance and replacement

5. Lengthen the hot air duct (120mm), good shrinkage effect

6. The unique external heating tube installation method is convenient for maintenance and replacement

7. The operation is simple, just press the automatic running button to complete the entire packaging process; automatic manual can be replaced

Automatic POF Heat Shrinkable Film Thermal Shrink Wrapping Machine

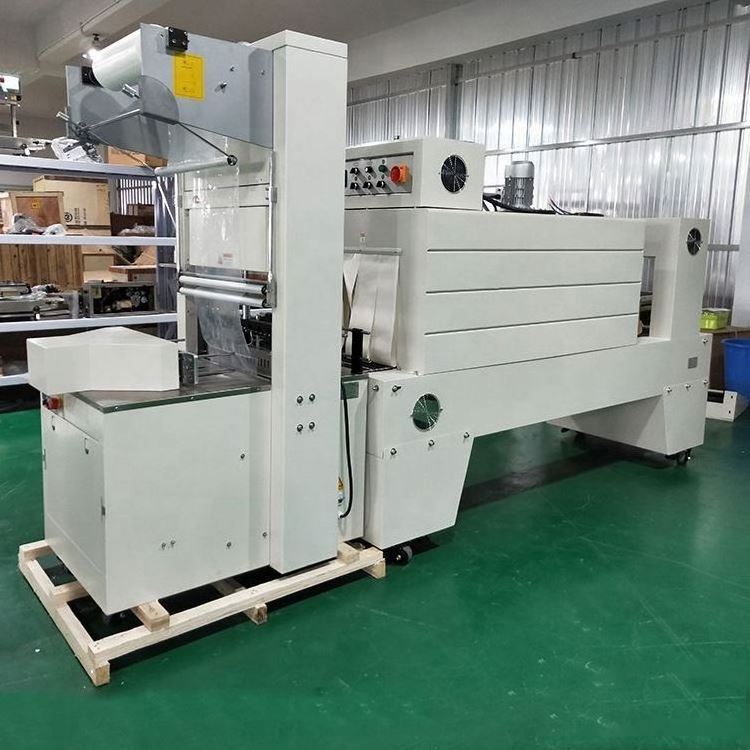

1. The machine is a fully automatic shrink packaging machine including L sealer and shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. It is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.

2. Special durable alloyed sealing knife with anti-stick Teflon coats makes sealing strong and has better performance of heat conduction.

3. Only adjust packing width and heig by hand wheels without changing any molds and parts when packing size changes. Packing length can be detected by the sensor automatically.

4. Different products with different sizes can be packed together as promotional package.

5. Adopt Omron brand parts such as temperature controller, timer, relay, switch, and sensor.

6. A pair of photoelectric switch in vertical for thin products.

7. Optional closing conveyor for small products.

8. Optional sensor for transparent products.

Application of shrink wrapping machine for carton box

This automatic shrink packaging machine is a new type of automatic continuous shrink packaging equipment developed by our company. It is suitable for heat shrink packaging of food, beverage, candy, stationery, arts and crafts, hardware tools, daily necessities, chemical supplies and other objects.The i packed by the heat shrink machine can be sealed, protected against moisture and pollution, and protect the goods from external impacts. They have a certain cushioning property, especially when packaging fragile products, which can prevent the utensils from scattering when they are broken. In addition, it can reduce the possibility of product disassembly and theft

Our Services

1. We always welcome customers to visit our manufacturing factory and get to know more about us.
2. Customers can see all the manufacturing workflows when they visit our factory. you can contact with online besides offline:
Tel/ Wechat / WhatsAPP / iMessages: +86 155 0374 7612
3. We also send engineers to the customer's place to help with the installation!

Packaging & Shipping

1. Packing: PP film wrapped around the machine and carefully packed in wooden case to focus on protecting damageable parts.
2. Shipping: From port of Shenzhen, Shanghai, Qingdao, Guangzhou,etc. We also accept land, air, sea transport and internationalmultimodal transport.
3. Clearance: Our long history makes us the one of the first and most knowledgeable providers of the equipment, our main customers hail from; Canada, the United States, Brazil, Argentina, Japan, Philippines, Australia,Russia, Thailand, the UAE, Poland,Spain,Germany, India, etc.
