Quick Details
-
Product Name:
-

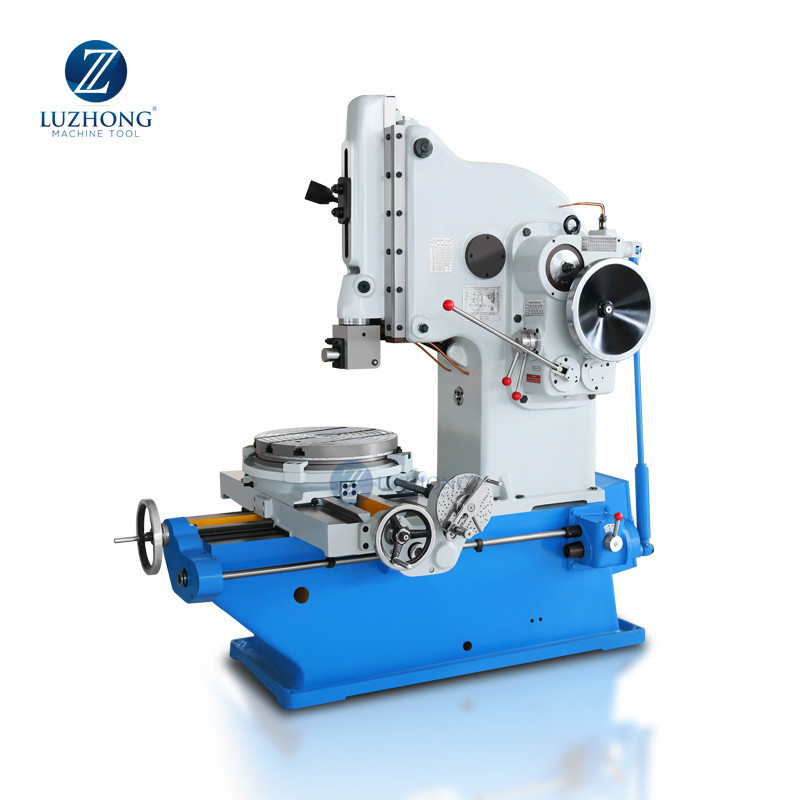

Vertical Slotting Machine
-
Max.ram slotting length:
-
200mm
-
Ram moving frequency per minute:
-
32-125times/min
-
Table diameter:
-
500mm
-
Table feed range:
-
0.08-1.21
-
Table rotary feed range:
-
360
-
main motor power:
-
3kw
-
Machine weight:
-
2200kg
-
Table cross travel:
-
500mm
-
Table longitudinal travel:
-
500mm
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
LUZHONG
-
Weight (KG):
-
2200 KG
-
Product Name:
-
Vertical Slotting Machine
-
Max.ram slotting length:
-
200mm
-
Ram moving frequency per minute:
-
32-125times/min
-
Table diameter:
-
500mm
-
Table feed range:
-
0.08-1.21
-
Table rotary feed range:
-
360
-
main motor power:
-
3kw
-
Machine weight:
-
2200kg
-
Table cross travel:
-
500mm
-
Table longitudinal travel:
-
500mm
Product Description
Specification
|
Specification
|
Unit
|
B5020
|
|
Max. stroke of RAM
|
mm
|
220
|
|
Ram maximum slotting length
|
mm
|
200
|
|
Ram motion frequency
|
times/min
|
32.50.80.125
|
|
Ram tilt angle
|
°
|
0-8
|
|
Ram vertical adjustment distance
|
mm
|
230
|
|
Cutter head bearing surface to the distance between the forearm bed
|
mm
|
485
|
|
Table Diameter
|
mm
|
500
|
|
The distance between the lower end of the sliding frame to work table
|
mm
|
320
|
|
Max. longitudinal moving distance of working table
|
mm
|
500
|
|
Max. transverse moving distance of working table
|
mm
|
500
|
|
Table maximum rotation angle
|
°
|
360
|
|
Vertical and horizontal table power feed range
|
mm
|
0.08-1.21
|
|
Table rotary feed range
|
mm
|
0.052-0.783
|
|
Motor power
|
kw
|
3
|
|
Motor speed
|
r/min
|
1430
|
|
Machine weight
|
kg
|
2200
|
|
Outline dimension
|
mm
|
1916*1305*1995
|
Details Images
