Quick Details
-
Travel Speed:
-
0-5km/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FURD
-
Model Number:
-
FYL-880
-
Dimension(L*W*H):
-
2100*1000*1650mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Double Drum Roller
-
Name:
-
Centrifugal Clutch 1 ton Roller
-
Engine Model:
-
Water-cooled Diesel 90N/ Kipor CF186F/ Honda gasoline GX390
-
Starting Mode:
-
Hand and Electric
-
Drive Type:
-
Hydraulic Transmission
-
Vibration Control:
-
Electromagnetic Clutch
-
Exciting Force:
-
25KN
-
Static Linear Load:
-
20/55N/cm
-
Water Tank:
-
60L
-
Hydraulic Oil Tank:
-
19L
-
Steel Drum Size:
-
Diameter: 540mm; Front Drum: 740mm, Rear Drum:800mm
-
Certification:
-
CE/ISO9001
Quick Details
-
Power:
-
9HP/13HP
-
Weight:
-
1000kg
-
Static Linear Pressure:
-
20/55N/cm
-
Travel Speed:
-
0-5km/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FURD
-
Model Number:
-
FYL-880
-
Dimension(L*W*H):
-
2100*1000*1650mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Double Drum Roller
-
Name:
-
Centrifugal Clutch 1 ton Roller
-
Engine Model:
-
Water-cooled Diesel 90N/ Kipor CF186F/ Honda gasoline GX390
-
Starting Mode:
-
Hand and Electric
-
Drive Type:
-
Hydraulic Transmission
-
Vibration Control:
-
Electromagnetic Clutch
-
Exciting Force:
-
25KN
-
Static Linear Load:
-
20/55N/cm
-
Water Tank:
-
60L
-
Hydraulic Oil Tank:
-
19L
-
Steel Drum Size:
-
Diameter: 540mm; Front Drum: 740mm, Rear Drum:800mm
-
Certification:
-
CE/ISO9001

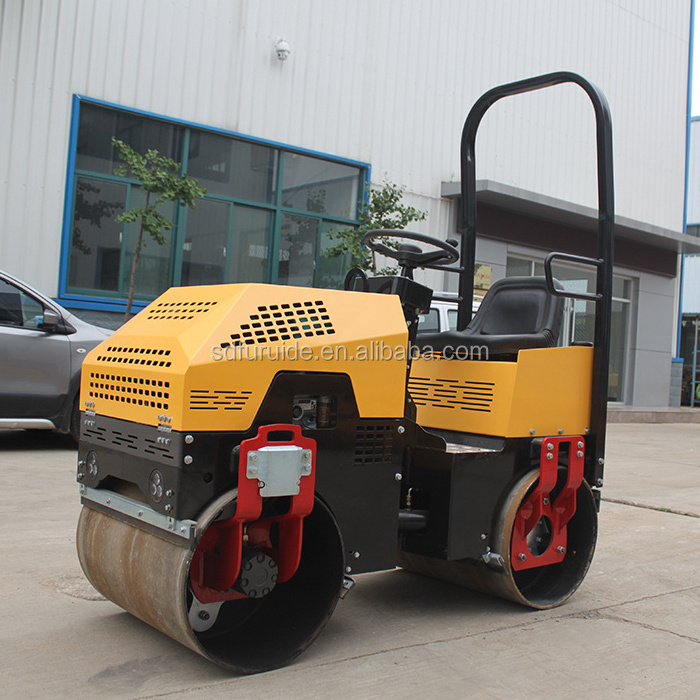

Centrifugal Clutch 1 ton Roller for Sale FYL-880
FYL-880 is 1 ton roller, adopt full hydraulic transmission, infinitely variable speed, double drum hydraulic drive, hydraulic steering, mechanical vibration, the vibration capacity is 2.5ton.
|
Model |
FYL-880 Tandem-drum Vibratory Compactor |
||
|
Walk Speed |
0-5km/h |
Water Tank |
60L |
|
Gradeability |
30% |
Hydraulic Oil Tank |
19L |
|
Drive Type |
Hydraulic Transmission |
Engine Model |
water cooled diesel 90N/ air-cooled diesel CF186/ Honda gasoline GX390 |
|
Vibration Control |
Electromagnetic Control |
Power |
9HP/13HP |
|
Static Linear Control |
20/55N/cm |
Steel Wheel Size |
Diameter 540mm; Front drum width 740mm; Back drum width 800mm |
|
Nominal Amplitude |
0.6mm |
Package Size |
2100*1000*1650mm |
|
Vibration Frequency |
70Hz |
Net Weight |
1000kg |
|
Exciting Force |
25KN |
Starting Mode |
Hand and Electric |
Features:
1) Imported Danfoss variable plunger pump drives the machine stepless speed walking;
2) Double American White hydraulic motors drive the machine walking, double drums hydraulic drive;
sakai roller
3) 25KN exciting force, good compaction;
4) Operate radius small, can work in small area, suitable for groove backfill;
5) Adopts Chinese water-cooled diesel 90N/ Honda GX390 gasoline engine/ Kipor air-cooled diesel engine, high quality assurance, superior performance;
6) Use electrical startup, machine vibration control use electromagnetic clutch, easier operation;
bomag roller
7) International NSK bearing, MITSUBOSHI triangle belt, Eaton steering gear;
8) Surface spray, beautiful appearance, rust resistant.
Earthwork and asphalt applications. New construction and repair work for medium and small scale construction projects, on parking lots, sidewalks, cycle paths, playing fields and sports grounds as well as rolling of joints in road construction.
