Quick Details
-
Brand Name:
-
MOMOTECH
-
Model Number:
-
MM-VAD24-W
-
Voltage:
-
AC110V/220V
-
Cache Capacity:
-
256MB
-
Cutter Pressure:
-
50g~2000g ( 160 setting adjustable )
-
Cutting Speed:
-
750mm/s
-
Driver:
-
High Speed Step Motor
-
Cutting Length:
-
Unlimited Cutting Plotter
-
Repeat Cutting:
-
0.082mm
-
Size:
-
1000 x 375 x 370mm
-
Positioning:
-
CCD Camera Scanner
-
Cutting:
-
Support Contour cutting, Repeat cutting
-
Mark Detect:
-
Support any color or any shape Mark Auto Detection
-
Max media width:
-
720mm
-
Pinch Wheel Design:
-
Dual spring, Pinch wheel adjustable
-
Max cutting width:
-
550mm
-
Cutting Precision:
-
+/- 0.01mm
-
Low noise:
-
less 60dB
-
Cutting Letter:
-
Support 2mm letter cutting no sawtooth
-
Offline work:
-
Support U disk offline work
Quick Details
-
Paper Feed Width:
-
720mm
-
Cutting Width:
-
550mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MOMOTECH
-
Model Number:
-
MM-VAD24-W
-
Voltage:
-
AC110V/220V
-
Cache Capacity:
-
256MB
-
Cutter Pressure:
-
50g~2000g ( 160 setting adjustable )
-
Cutting Speed:
-
750mm/s
-
Driver:
-
High Speed Step Motor
-
Cutting Length:
-
Unlimited Cutting Plotter
-
Repeat Cutting:
-
0.082mm
-
Size:
-
1000 x 375 x 370mm
-
Positioning:
-
CCD Camera Scanner
-
Cutting:
-
Support Contour cutting, Repeat cutting
-
Mark Detect:
-
Support any color or any shape Mark Auto Detection
-
Max media width:
-
720mm
-
Pinch Wheel Design:
-
Dual spring, Pinch wheel adjustable
-
Max cutting width:
-
550mm
-
Cutting Precision:
-
+/- 0.01mm
-
Low noise:
-
less 60dB
-
Cutting Letter:
-
Support 2mm letter cutting no sawtooth
-
Offline work:
-
Support U disk offline work

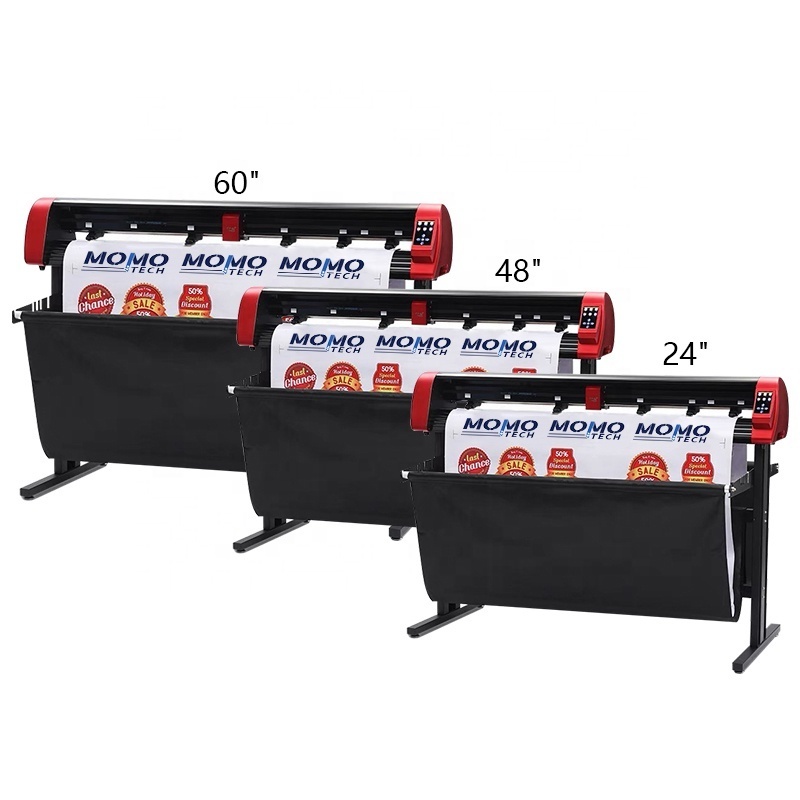

Factory Price Of Contour Vynil Cutter Graphtec Cutting Cuter Graph Plotter Machine De Corte Ploter
Product Description
- Features:
- Camera can identify any shape and any color Mark Point,
- Dual Heads Design to Cut & Write or Cut & Score or Emboss & Cut or Engrave & Cut or Draw & Emboss with one step 2mm small Lettercutting no sawtooth & 5M Paper cutting no deviation.
- 4.3 Large Touch Screen for visualized fine-funing operation
- Auto Contour Cutting, High accuracy
- Auto Calibrating, Auto Repeat Cutting
- Real USB( NO USB Driver), U Disk Connection
- Adjust Cutting Force or Cutting Speed during work time
- 32-bit ARM7 CPU, 256M Cache Memory,
- One-Key Remote Upgrading
- 160 Setting adjustable, Cutting Force 2000g Max,
- Alumimum alloy Housing & High Precision Steel Axes
- Colorful LED light bar design
- Feed material way: steel roller+pinchwheel
-
English/Italian/Spanish/Japanese/Portuguese/Finnish/French/German.
Tech Data
| Tech Data | |
| Model | MM-VAD24-W (24 inch Dual heads cutter plotter with WIFI) |
| Acceptable media width | 720mm |
| Max cutting width | 550mm |
| 24 inch | |
| Cutting head | Dual |
| Camera | Support |
| Auto Contour cutting | Fast ,automatically and high precision contour cut by using camera. |
| Operation | 4.3" TFT LCD Large touch screen |
| Interface | HD large screen full-color APP information function display |
| Connector | WIFI ,USB cable,USB flash drive |
| Contour cutting & calibration | Easy use and high precision calibrate |
| Mainboard | 32bit ARM cortex M4 MCU,8M memory. Support remote and one key update. |
| Location mode | Bound system. set origin freely |
| Driver | Digital DC stepper motor,microstep driving |
| Command | HP-GL, DMPL |
| Max moving speed | 960mm/s |
| Max cutting speed | 750mm/s |
| Max cutting thickness | 1mm |
| Force |
Dual head:50g~2000g ( 160 setting adjustable )
(independent setting of each head) |
| Cutting precision | < 0.01mm |
| Repeat precision | 0.082mm |
| Power supply | AC100~240V/50Hz~60Hz |
| working environment | +5℃~ +45℃,relative humidity 30%~70% |
| Color | White/black/red(optional) |
| Bracket | Optional |
| Size | 1000 x 375 x 370mm |
| Packing G/N weight | 16.8 / 14kg |
| Software | SignMaster Cut / Flexi / Signcut / CorelDRAW driver |
| Operation system | Windows2000 / XP / 2003 / win7 / 2003 / win7 /win10 |
| MAC OSX10.2.8 or above | |
