Quick Details
-
Model Number:
-
SWT-508C
-
Model:
-
EW-01A
-
Power supply:
-
220V~50-60Hz
-
Operation page:
-
5-inch touch screen display
-
Capacity:
-
About 3000-6000 Pcs (depending on the material)
-
Wire size:
-
0.1-6 mm2
-
Cutting tolerance:
-
0.002*L-MM
-
Pulse equivalent:
-
No error within 1M
-
Dimension:
-
L400mm*W355mm*H285mm (excluding protrusions
-
Weight:
-
30kg
-
Power:
-
450W
Quick Details
-
Usage:
-
Cut & Strip
-
Place of Origin:
-
China
-
Brand Name:
-
EASTONTECH
-
Model Number:
-
SWT-508C
-
Model:
-
EW-01A
-
Power supply:
-
220V~50-60Hz
-
Operation page:
-
5-inch touch screen display
-
Capacity:
-
About 3000-6000 Pcs (depending on the material)
-
Wire size:
-
0.1-6 mm2
-
Cutting tolerance:
-
0.002*L-MM
-
Pulse equivalent:
-
No error within 1M
-
Dimension:
-
L400mm*W355mm*H285mm (excluding protrusions
-
Weight:
-
30kg
-
Power:
-
450W
Products Description

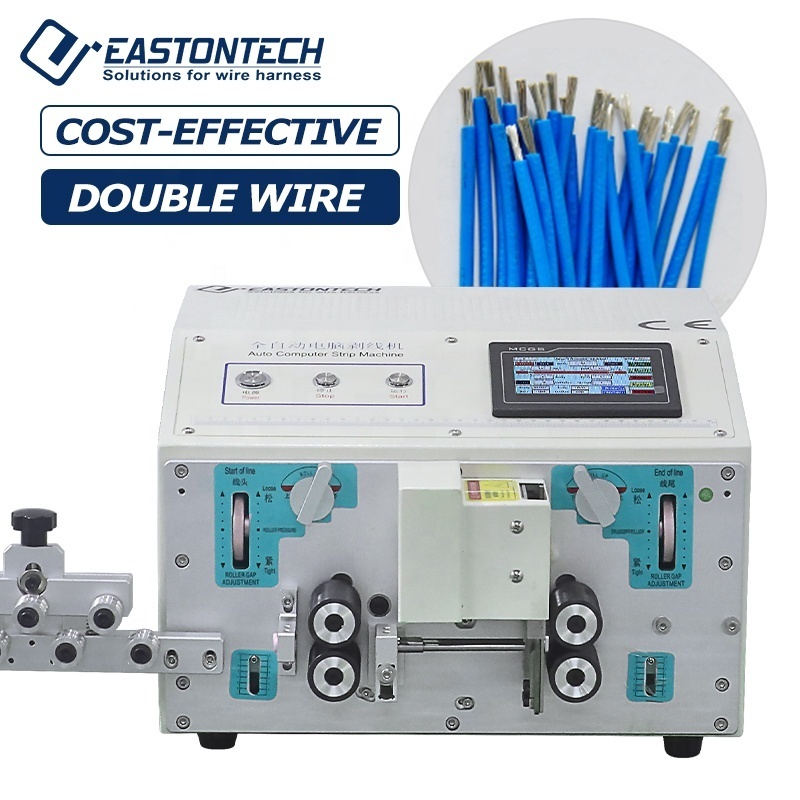

EW-01A
Automatic
Double Wire Cutting Stripping Machine
This machine uses the domestic first-line brand full HD color touch 5-inch LCD display and a self-developed motion control board using a single-chip microcomputer, which is faster and more stable.
Features:
This machine adopts an all-metal straightener with one-button quick switch. The wire feeding wheel can be equipped with rubber wheels, iron wheels, l leather wheels, electric conduit feeding, and the tool holder adopts imported material heat treatment and grinding process.
Save labor and time and improve production efficiency. Mainly used for
electronic wires, silicone wires, iron dragon wires, isolation wires
and other glass woven fiber cotton, fully automatic cutting, peeling, half-peeling, one-time completion, rapid change of wire specifications and sizes ,high productivity.
Product Paramenters
|
Product Name
|
Fully automatic high-speed precision stripping machine
|
|
Model
|
EW-01A
|
|
Power supply
|
220V~50-60Hz
|
|
Operation page
|
5-inch touch screen display
|
|
Capacity
|
About 3000-6000 Pcs
(depending on the material)
|
|
Wire size（one line）
|
0.1-6 mm2
|
|
Wire size（double line）
|
0.1-2.5 mm2
|
|
Cutting tolerance
|
0.002*L-MM
|
|
Pulse equivalent
|
No error within 1M
|
|
Dimension
|
L400mm*W355mm*H285mm (excluding protrusions
|
|
Weight
|
30kg
|
|
Stripping length
|
Rear end 0-30mm Front end 0-30mm
|
|
Catheter control method
|
Motor
|
|
number of motors
|
4 (respectively control: in/out wire wheel/ten thousand rack/duct
|
|
Cutting length
|
0.1-99999.9mm
|
|
Conduit
|
3/4/5/6
|
|
Driving mode
|
4 rotation
|
Details Images
5-inch HD Touch Screen
Color touch screen operation interface is selected. The machine comes standard with Chinese and English parameters that are intuitive and easy to understand, making it easier to peel and cut with better results.
Blade Device
The
electric jumper
is used to feed the wire more accurately, and the blade fixing device is more convenient to change the blade. Just clamp it when replacing the blade, eliminating the need to adjust the position of the blade every time.
Heat Treatment Grinding Tool Holder
The tool holder
adopts heat treatment and grinding process
, which is durable and can cut and strip the wire more accurately.
7-wheel metal crimping straightener
Key-type switch for fast switching,
all-copper wire feed wheel screws
, magnetic ring wire entry to prevent damage and no indentation, the wire is straighter and more accurate. Improve work quality and efficiency
