Quick Details
-
Rolling thinckness:
-
0.3-1mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TIANYU roll forming machine
-
Voltage:
-
380V.50HZ.3Phase
-
Dimension(L*W*H):
-
4000*1000*1000mm
-
Weight:
-
About 3.2T
-
Warranty:
-
1 year
-
Roll material:
-
High grade No.45 forged steel,with 5 nm chrome coated
-
Color:
-
As for your respect
-
Control system:
-
Totally automatic PLC Taiwan Delta or Siemens control system
-
Roll stations:
-
13 rows
-
Shaft material:
-
High grade No.45 forged steel,with 5 nm chrome coated
-
Cutting system:
-
Automatic hydyaulic cutting
-
Kind of drive:
-
Chain drive
-
Frame material:
-
300 H-high grade steel
-
Cutting blade material:
-
Cr12 mould steel with quenched treatment
-
Certification:
-
CE &ISO
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Glaze Steel
-
Production Capacity:
-
7-12M/Min
-
Rolling thinckness:
-
0.3-1mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TIANYU roll forming machine
-
Voltage:
-
380V.50HZ.3Phase
-
Dimension(L*W*H):
-
4000*1000*1000mm
-
Weight:
-
About 3.2T
-
Warranty:
-
1 year
-
Roll material:
-
High grade No.45 forged steel,with 5 nm chrome coated
-
Color:
-
As for your respect
-
Control system:
-
Totally automatic PLC Taiwan Delta or Siemens control system
-
Roll stations:
-
13 rows
-
Shaft material:
-
High grade No.45 forged steel,with 5 nm chrome coated
-
Cutting system:
-
Automatic hydyaulic cutting
-
Kind of drive:
-
Chain drive
-
Frame material:
-
300 H-high grade steel
-
Cutting blade material:
-
Cr12 mould steel with quenched treatment
-
Certification:
-
CE &ISO
Product Description

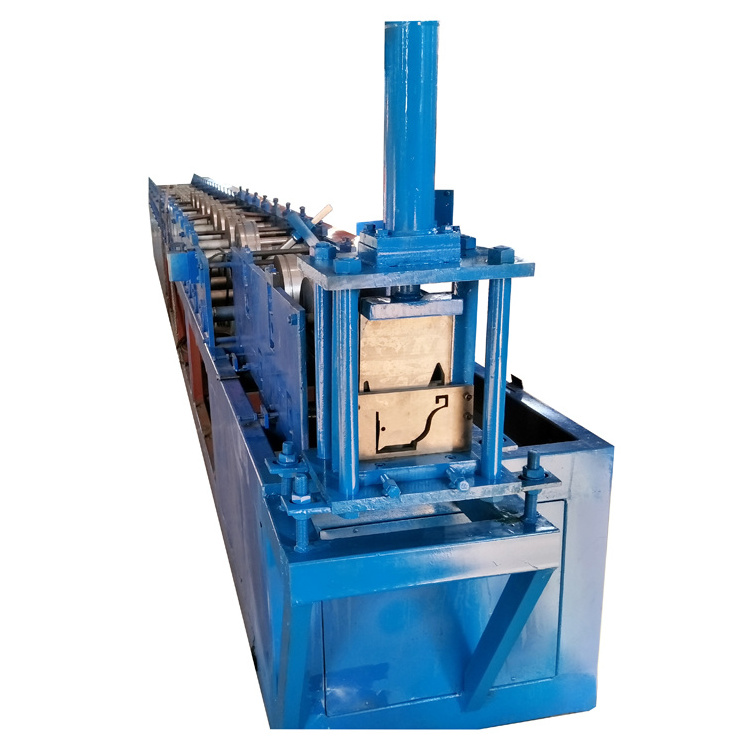

| Downspout Gutter Roll Forming Machine | ||
| 1.Raw material | Thickness | 0.25-0.75mm |
| 2.Decoiler | Operation | automatic |
| Weight apacity | 3.5-6t | |
| 3.Main body | Roller station | 18-22 rows |
| Diameter of shaft | 70-80mm | |
| Material of rollers | 45# steel | |
| Material of shaft | 45# steel | |
| Frame | 18-22mm | |
| Chain | 1.32-1.97inch | |
| 4.Cutter | Operate | auto |
| Blade Material | cr12mov | |
| 5. Power | Voltage | customized |
| Power | 7.5-15kw | |
| 6. Control system | Electric Box | customized/Delta |
| Language | english chinese/customzied | |
| 7. Forming Speed | Forming Speed | 15-20m/min |
Product Show
