Quick Details
-
Product name:
-
18 Pin Pogo Connector
-
Pin:
-
18pin
-
Keyword:
-
brass pogo pin
-
Color:
-
Golden
-
Voltage:
-
12V
-
Current:
-
2A
-
Material quality:
-
Brass gold-plating
-
Use to:
-
Electric conduction,Signal Connection
-
Application:
-
Various communication, audiovisual, and digital code appliances
-
Characteristic:
-
Fast conductivity, long service life
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KRX
-
Model Number:
-
18 Pin Connector
-
Product name:
-
18 Pin Pogo Connector
-
Pin:
-
18pin
-
Keyword:
-
brass pogo pin
-
Color:
-
Golden
-
Voltage:
-
12V
-
Current:
-
2A
-
Material quality:
-
Brass gold-plating
-
Use to:
-
Electric conduction,Signal Connection
-
Application:
-
Various communication, audiovisual, and digital code appliances
-
Characteristic:
-
Fast conductivity, long service life

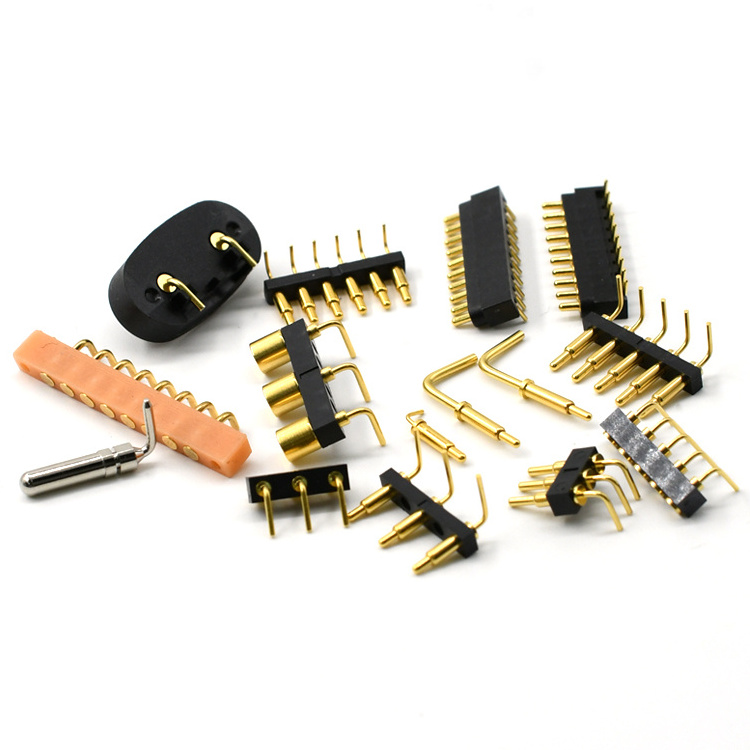

Products Description
5 pin pogo pin connector
Characteristic:
1. Easy to install: Spring pin connectors can be easily installed and removed, requiring minimal tools and time.
2. High reliability: The spring pins used in the connectors have high reliability and stability, which can ensure the quality and stability of signal transmission.
3. High connectivity: Spring pin connectors provide high connectivity and can meet various signal transmission needs.
4. Correct docking: The spring pin connector adopts an easily recognizable pairing method to ensure correct docking and avoid insertion errors.
5. Strong durability: The connector has strong durability and corrosion resistance, can be used in various environments, and will not malfunction after long-term use.
1. Easy to install: Spring pin connectors can be easily installed and removed, requiring minimal tools and time.
2. High reliability: The spring pins used in the connectors have high reliability and stability, which can ensure the quality and stability of signal transmission.
3. High connectivity: Spring pin connectors provide high connectivity and can meet various signal transmission needs.
4. Correct docking: The spring pin connector adopts an easily recognizable pairing method to ensure correct docking and avoid insertion errors.
5. Strong durability: The connector has strong durability and corrosion resistance, can be used in various environments, and will not malfunction after long-term use.
Specification
|
Characteristics
|
|
|
|
Electrical
|
(1)Operating Voltage : 12V Max.
|
|
|
|
(2)Operating Current : 2A
|
|
|
|
(3)Contact Resistance: 30mohm Max.At Working Height(Quiescence)
|
|
|
Mechanical
|
(1)Total Stroke : 1.5mm.
|
|
|
|
(2)Normal Working Position : 5.0mm. (Spring Force: 80±20gf)
|
|
|
|
(3)Mechanical Life: 10,000 Cycle Min.
|
|
|
|
(4)Don'T Exceed The Max. Allowed Compression.
|
|
|
Material/Finish
|
(1)Plunger : Green Copper Brass, Plating 3μ" Au Over 50-60μ" Ni.
|
|
|
|
(2)Barrel: Green Copper Brass, Plating 3μ" Au Over 50-60μ" Ni.
|
|
|
|
(3)Spring: Stainless Steel Wire, Plating 1μ"Au Over 50-60μ "Ni.
|
|
|
|
(4)cap: PA46+30% Glass Fiber; Black(UL94V-o).
|
|
|
Environmental
|
(1)Storage And Operating Temperature Range :-40°C-+85°C.
|
|
|
|
(2)Humidity Range : 10% Rh To 90% Rh.
|
|
|
|
(3)Salt Spray: 24h.
|
|
|
|
(4) Thermostability: 260℃、 3 minutes.
|
|
|
Others
|
(1) The Dimensions Marked Are Critical,Should Be Checked In Production.
|
|
|
|
(2)Gold Plated Film Thickness Test Points Shall Be Based On The Bottom.
|
|
|
|
(3)The Product Must Comply With The Latest Applicable 'RoHS' Requirements.
|
|
Product Description
|
Material
|
Brass(C3604)
|
|
Color
|
Gold
|
|
Size
|
Depends on customer requirements
|
|
Type
|
Side Mounted
|
|
Plated
|
Gold paltde(10U')(can customized)
|
|
Cycle life
|
100000times
|
|
Contact resistance
|
50m Ohm Max
|
|
Salt fog
|
72H
|
|
Rated current&voltage
|
5A/12V(can customized)
|
|
Applications
|
PCB,power,charging equipment
|
|
Certificate
|
ISO9001/ROHS/REACH/MSDS/SGS
|
|
Packing
|
100pcs/PE bag(or according to customer equirements)
|
|
Payment Term
|
T/T,30%Deposit,70%Balance
|
|
Payment method
|
T/T,PayPal,HSBC
|
Applications：
1.smart wearable device,GPS(smart watch,smart bracelet,bluetooth earphone) data cable,charging cable,magnetic cable
2.medical device,wireless device, handset,telecom device, industrial and auto equipment
2.medical device,wireless device, handset,telecom device, industrial and auto equipment
3.areospace industry
4.vehicle navigation
4.vehicle navigation
5.3C,measuring equipment
6.smart toys,VR,digital cameras,printing machine,PDA,drone)
POGO PIN STRUCTURES AND MATERIALS
