Application:
The machine is suitable for making 0.1L to 10L PET water/ beverage/ oil/ cosmetic/ pesticide bottles.
Features:
1. Germany FESTO LP solenoids2. Bothfit PLC+screen
3. P20 steel mould plate
4. Strong infrared heating lamps
5. Advanced and durable mould clamping system.
- Product Details
- {{item.text}}
Quick Details
-
Bottle Volume(ml):
-
10000 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Pairui
-
Year:
-
2021
-
Voltage:
-
3P 380V/220V
-
Dimension(L*W*H):
-
227*65*165cm
-
Hollow part volume:
-
0.1L - 10L
-
Clamping Force (kN):
-
480
-
Power (kW):
-
15
-
Weight (KG):
-
1000 KG
-
Product name:
-
Blowing Machine
-
Model:
-
S10
-
Automatic:
-
Semi-automatic
-
Suitable bottle:
-
0.1L-10L
-
Component:
-
Germany FESTO LP solenoids
-
Mold plate:
-
P20 steel
-
After-sales Service Provided:
-
Field maintenance and repair service
-
After Warranty Service:
-
Field maintenance and repair service
-
Certification:
-
CE
-
After Warranty Service1:
-
Online support
Quick Details
-
Neck Diameter(mm):
-
46 mm
-
Max.Bottle Diameter(mm):
-
300 mm
-
Max.Bottle Height(mm):
-
420 mm
-
Bottle Volume(ml):
-
10000 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Pairui
-
Year:
-
2021
-
Voltage:
-
3P 380V/220V
-
Dimension(L*W*H):
-
227*65*165cm
-
Hollow part volume:
-
0.1L - 10L
-
Clamping Force (kN):
-
480
-
Power (kW):
-
15
-
Weight (KG):
-
1000 KG
-
Product name:
-
Blowing Machine
-
Model:
-
S10
-
Automatic:
-
Semi-automatic
-
Suitable bottle:
-
0.1L-10L
-
Component:
-
Germany FESTO LP solenoids
-
Mold plate:
-
P20 steel
-
After-sales Service Provided:
-
Field maintenance and repair service
-
After Warranty Service:
-
Field maintenance and repair service
-
Certification:
-
CE
-
After Warranty Service1:
-
Online support
Product Description

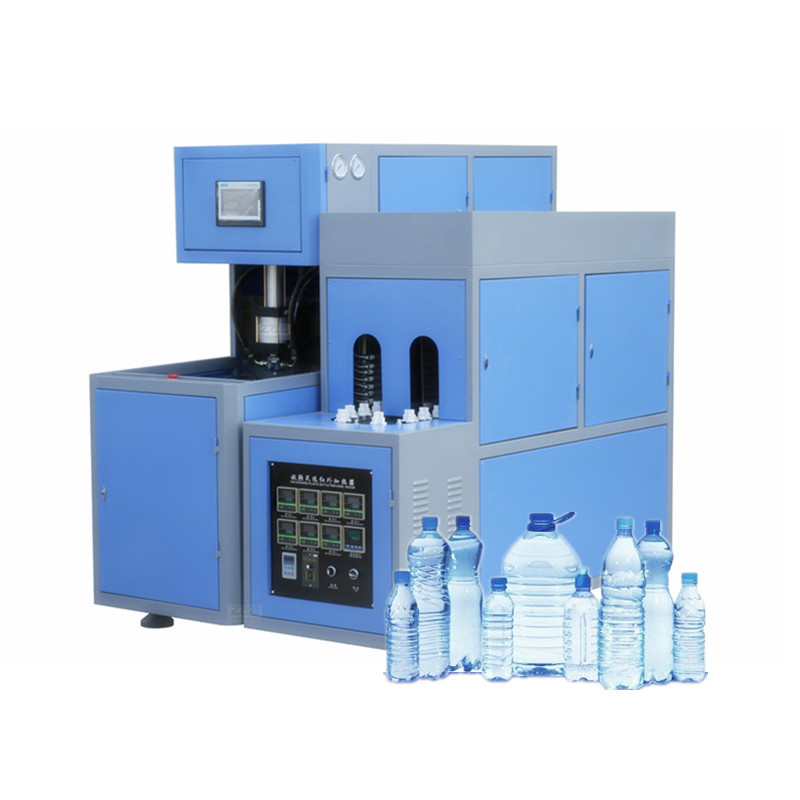

10L PET Bottle Blow Moulding Machine
Product Paramenters
|
Item
|
Measurement
|
Model
|
|
|
|
TH-S10
|
|
Material
|
|
PET
|
|
Theoratical output
|
Pcs/hr
|
300-800
|
|
Max bottle diameter
|
mm
|
300
|
|
Max bottle height
|
mm
|
450
|
|
Mould plate size
|
mm
|
520*350
|
|
Mould thickness
|
mm
|
180
|
|
Max opening stroke
|
mm
|
260
|
|
Mould closing force
|
KN
|
480
|
|
Heating power
|
KW
|
12
|
|
Working pressure
|
Mpa
|
0.8
|
|
Blowing pressure
|
Mpa
|
3.0
|
|
Blower size/weight
|
mm
|
2270*650*1650(800KG)
|
|
Heater size/weight
|
mm
|
1760*570*1360(200KG)
|
|
Voltage
|
|
220/380V 3P 50-50HZ
|
Production Plant
