Quick Details
-
Power:
-
customizable
-
Min. Lifting Height:
-
customizable
-
Table Size:
-
customizable
-
Overall Dimensions:
-
customizable
-
Weight:
-
1800 kg
-
Lift Drive:
-
Hydraulic Lifting Lift Platform
-
Turning Degree:
-
360 degree
-
Loading Capacity:
-
Customization
-
Surface Treatment:
-
Plastic Spraying
-
Color:
-
Red Yellow Blue Customized
-
Quality Assured:
-
Ce ISO9001 Saco FTA Iam Ect
-
Input Voltage:
-
110V 220V 240V 380V, 400V, Customized
-
After-Sales Service:
-
24 Hours Online Service or Engineers Available to
-
After Warranty Service:
-
Online support
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PLK LIFT
-
Power:
-
customizable
-
Min. Lifting Height:
-
customizable
-
Table Size:
-
customizable
-
Overall Dimensions:
-
customizable
-
Weight:
-
1800 kg
-
Lift Drive:
-
Hydraulic Lifting Lift Platform
-
Turning Degree:
-
360 degree
-
Loading Capacity:
-
Customization
-
Surface Treatment:
-
Plastic Spraying
-
Color:
-
Red Yellow Blue Customized
-
Quality Assured:
-
Ce ISO9001 Saco FTA Iam Ect
-
Input Voltage:
-
110V 220V 240V 380V, 400V, Customized
-
After-Sales Service:
-
24 Hours Online Service or Engineers Available to
-
After Warranty Service:
-
Online support

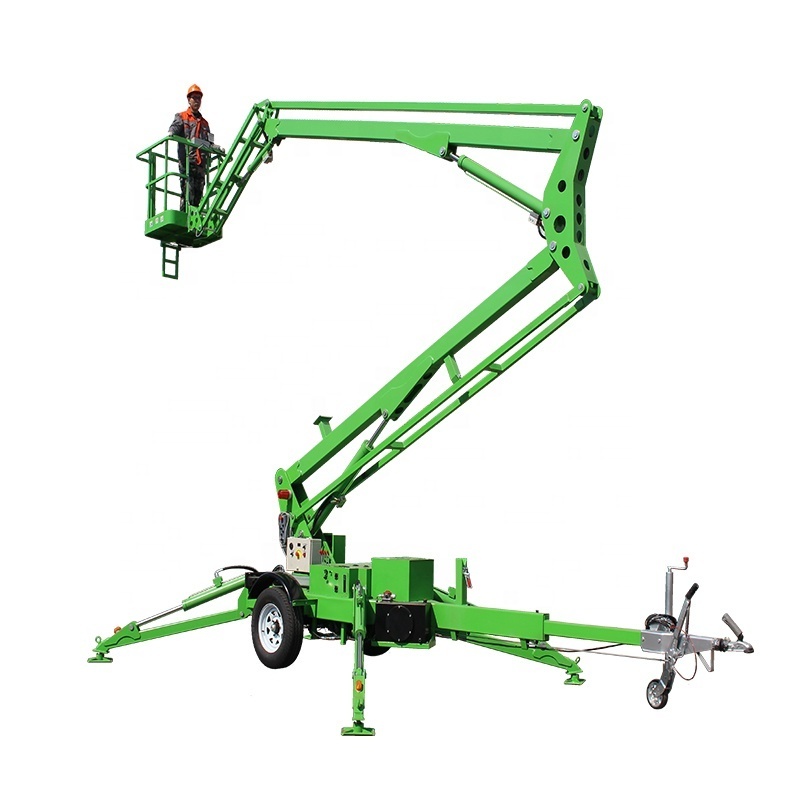

12m~24m Towable Boom Lift Cherry Picker
Towable boom lift platform height from 10m to 16m (working height from 12m to 18m). Load capacity 200kg. It can be towed easily from site to site and work for you quickly. It is widely used for aerial working, such as road lamp repair, palm tree trimming work and cleaning the window etc.
Power options available on PLK towable boom lift include AC (connect with electricity), DC (battery power), gasoline, diesel and 'Dual-Energy' ( for example battery & diesel or battery & gasoline), combining the benefits of two power sources on the same machine. Towable Cherry Picker is popular for its easily moving and operation. Having it will be your wisest choice.
| Model | TBL-12A | TBL-14A | TBL-14AT | TBL-16A | TBL-18A | TBL-20A | TBL-20AM | TBL-22A | TBL-24A | |
| +Telescopic | +Telescopic | +Telescopic | +Telescopic | +Telescopic | +Telescopic | +Telescopic | ||||
| Lifting height | 10M | 12M | 12M | 14M | 16M | 18M | 18M | 20M | 22M | |
| Working height | 12M | 14M | 14M | 16M | 18M | 20M | 20M | 22M | 24M | |
| Load capacity | 300KG | 220KG | 300KG | 300KG | 220KG | 220KG | 220KG | 220KG | 220KG | |
| Platform size | 1.2*0.8M | |||||||||
| Working radius | 5.5M | 6.5M | 7.8M | 8.5M | 10.5M | 11M | 10.5M | 11M | 11M | |
| Net Weight | 1950KG | 2100KG | 2150KG | 2150KG | 2350KG | 3800KG | 3700KG | 4500KG | 5000KG | |
| Overall Width (A) | 1.7M | 1.7M | 1.7M | 1.7M | 1.7M | 1.8M | 1.8M | 1.9M | 1.9M | |
| Stowed Height (B) | 2.1M | 2.1M | 2.1M | 2.1M | 2.2M | 2.25M | 2.25M | 2.25M | 2.25M | |
| Overall Length (C) | 6.3M | 7.3M | 5.8M | 6.65M | 6.8M | 7.6M | 6.6M | 6.9M | 6.9M | |
|
Length After Folding Tractor (D) |
5.2M | 6.2M | 4.7M | 5.55M | 5.7M | 6.5M | 5.5M | 5.8M | 5.8M | |
| Wind Resistance Level | 5 | |||||||||
| Rotation | 359 degree (USD350 for 360 degree) | 360 degree | ||||||||
|
20’/40’Container Loading Quantity |
1set/3sets | 1set/3sets | 1set/3sets | 1set/3sets | 1set/3sets | 1set/2sets | 1set/3sets | 1set/2sets | 1set/2sets | |
| Power | AC-electrical/Diesel/Gasoline Power (Single Power) | |||||||||
| DC Battery Power (Single Power) | ||||||||||
| AC-electrical + Diesel/Gasoline Power (Dual Power) | ||||||||||
| DC Battery + AC/Diesel/Gasoline Power (Dual Power) | ||||||||||
All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
