Quick Details
-
Inverter Efficiency:
-
97.60%
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Deye
-
Model Number:
-
SUN-5/6/7.6/8K-SG01LP1-US
-
Input Voltage:
-
370 (125-500)V
-
Output Voltage:
-
110/220/230V
-
Output Current:
-
20.8-35A
-
Output Frequency:
-
50 / 60Hz
-
Size:
-
420*670*233
-
Certificate:
-
VDE4105, IEC61727/62116 etc
-
Warranty:
-
10 Years
-
Weight:
-
32KG
-
Product name:
-
Deye Hybrid Solar Inverter
-
Battery type:
-
Lead-acid or Lithium-ion
-
Battery Voltage:
-
40-60V
-
Grid Type:
-
Single Phase/Split Phase/2/3 phase
-
MPPT Efficiency:
-
99.90%
-
Communication with BMS:
-
RS485/CAN
-
No.of MPP Trackers:
-
2
-
Protection Degree:
-
IP65
-
Installation Style:
-
Wall-mounted
-
External Temperature Sensor:
-
Yes
Quick Details
-
Output Power:
-
6KW, 5KW, 7.6KW, 8KW
-
Output Type:
-
Single, Split
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
97.60%
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Deye
-
Model Number:
-
SUN-5/6/7.6/8K-SG01LP1-US
-
Input Voltage:
-
370 (125-500)V
-
Output Voltage:
-
110/220/230V
-
Output Current:
-
20.8-35A
-
Output Frequency:
-
50 / 60Hz
-
Size:
-
420*670*233
-
Certificate:
-
VDE4105, IEC61727/62116 etc
-
Warranty:
-
10 Years
-
Weight:
-
32KG
-
Product name:
-
Deye Hybrid Solar Inverter
-
Battery type:
-
Lead-acid or Lithium-ion
-
Battery Voltage:
-
40-60V
-
Grid Type:
-
Single Phase/Split Phase/2/3 phase
-
MPPT Efficiency:
-
99.90%
-
Communication with BMS:
-
RS485/CAN
-
No.of MPP Trackers:
-
2
-
Protection Degree:
-
IP65
-
Installation Style:
-
Wall-mounted
-
External Temperature Sensor:
-
Yes

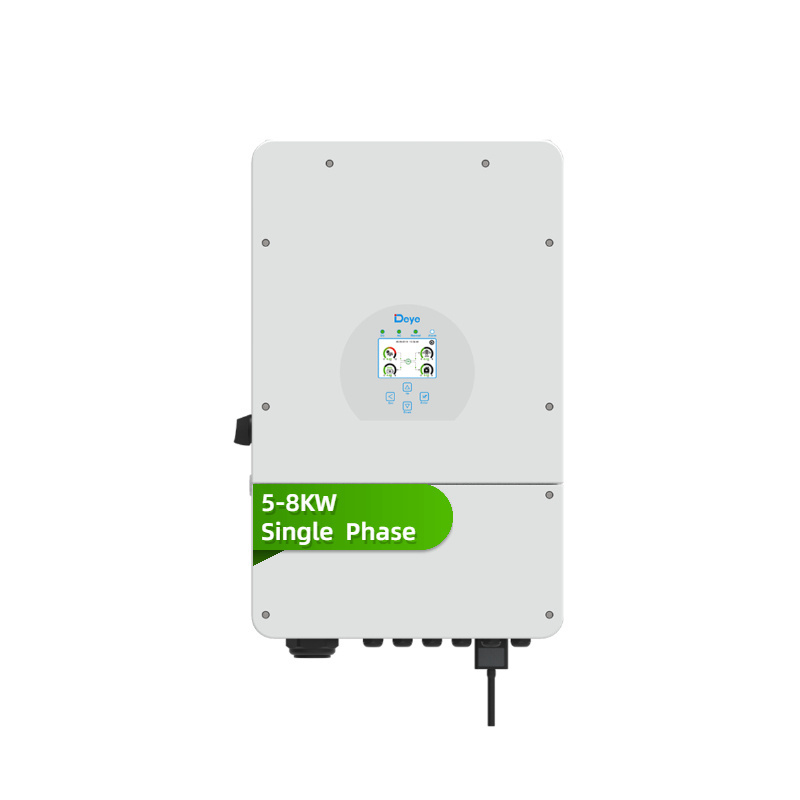

Hybrid Inverter
SUN-5/6K-SG01LP1-US SUN-7.6/8K-SG01LP1-US/EU
| 5-8KW | Split Phase | 2 MPPT | Hybrid Inverter |
LV Battery Supported
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system.
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner .
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner .
Datasheet
|
Model
|
SUN-5K
-SG01LP1-US |
SUN-6K
-SG01LP1-US |
SUN-8K
-SG01LP1-US/EU |
|||
|
Battery Input Data
|
|
|
|
|||
|
Battery Type
|
Lead-acid or Li-lon
|
|
|
|||
|
Battery Voltage Range (V)
|
40~60V
|
|
|
|||
|
Max. Charging Current (A)
|
120A
|
135A
|
190A
|
|||
|
Max. Discharging Current (A)
|
120A
|
135A
|
190A
|
|||
|
Charging Curve
|
3 Stages / Equalization
|
|
|
|||
|
External Temperature Sensor
|
Optional
|
|
|
|||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|
|
|||
|
PV String Input Data
|
|
|
|
|||
|
Max. DC Input Power (W)
|
6500W
|
7800W
|
10400W
|
|||
|
Rated PV Input Voltage (V)
|
370 (125-500)
|
|
|
|||
|
MPPT Range (V)
|
150-425V
|
|
|
|||
|
Start-up Voltage (V)
|
125V
|
|
|
|||
|
Full Load DC Voltage Range
|
300-425
|
200-425
|
|
|||
|
PV Input Current (A)
|
13+13
|
26+13
|
26+26
|
|||
|
No.of MPPT Trackers
|
2
|
|
|
|||
|
No.of Strings Per MPPT Tracker
|
1+1
|
2+1
|
2+2
|
|||
|
AC Output Data
|
|
|
|
|||
|
Rated AC Output and UPS Power (W)
|
5000W
|
6000W
|
8000W
|
|||
|
Max. AC Output Power (W)
|
5500W
|
6600W
|
8800W
|
|||
|
Peak Power (off grid)
|
2 times of rated power, 10 S
|
|
|
|||
|
AC Output Rated Current (A)
|
20.8/24A
|
25/28.8A
|
33.3/38.5A
|
|||
|
Max. AC Current (A)
|
22.9/26.4A
|
27.5/31.7A
|
36.7/42.3A
|
|||
|
Max. Continuous AC Passthrough (A)
|
50A
|
|
|
|||
|
Output Frequency and Voltage
|
50/60Hz; 230/400Vac (Three phase)
|
|
|
|||
|
Grid Type
|
Current Harmonic Distortion
|
|
|
|||
|
Current Harmonic Distortion
|
THD<3% (Linear load<1.5%)
|
|
|
|||
|
Efficiency
|
|
|
|
|||
|
Max. Efficiency
|
97.60%
|
|
|
|||
|
Euro Efficiency
|
97.00%
|
|
|
|||
|
MPPT Efficiency
|
99.90%
|
|
|
|||
|
Protection
|
Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection |
|
|
|||
|
Surge protection
|
DC Type II / AC Type II
|
|
|
|||
|
Certififications and Standards
|
|
|
|
|||
|
Grid Regulation
|
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1,
G98, G99, C10-11, UNE217002, NBR16149/NBR16150 |
|
|
|||
|
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
|
|
|||
|
General Data
|
|
|
|
|||
|
Operating Temperature Range (℃ )
|
-40-60℃, >45℃ derating
|
|
|
|||
|
Cooling
|
Smart cooling
|
|
|
|||
|
Noise (dB)
|
<30 dB
|
|
|
|||
|
Communication with BMS
|
RS485; CAN
|
|
|
|||
|
Weight (kg)
|
32
|
|
|
|||
|
Size (mm)
|
420W×670H×233D
|
|
|
|||
|
Protection Degree
|
IP65
|
|
|
|||
|
Installation Style
|
Wall-mounted
|
|
|
|||
|
Warranty
|
5 Years (10 Years Optional)
|
|
|
|||
Products Description
Why Choose Deye Solar inverters?
2.Your Best Choice For AC Storage Hybrid Solutions and String Inverters
3.All Deye Solar inverters can be found in PV Solar system
4.All Deye Solar inverters and distributors are insured by US CHUBB Insurance corporation company
5.All Deye Solar inverters are equipped with Standard WiFi communication
6.Deye Solar inverters are equipped with 25-year data storage capabiliity (Internal SD Card)
