- Product Details
- {{item.text}}
Quick Details
-
Engine Brand:
-
Imported, Weichai
-
Travel Speed:
-
0~58km/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SEM
-
Dimension(L*W*H):
-
6370*2360*3185mm
-
Drum diameter:
-
1600mm
-
Exciting Force:
-
327/188 KN
-
Marketing Type:
-
Hot Product 2024, Ordinary Product
-
Static Pressure:
-
415N/cm
-
Operating Weight:
-
18,000 kg
-
Fuel Tank Volume:
-
262 L
-
Tires Type:
-
20.5-25
Quick Details
-
Type:
-
Tire Roller
-
Power:
-
129 KW
-
Weight:
-
18000kg
-
Engine Brand:
-
Imported, Weichai
-
Travel Speed:
-
0~58km/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SEM
-
Dimension(L*W*H):
-
6370*2360*3185mm
-
Drum diameter:
-
1600mm
-
Exciting Force:
-
327/188 KN
-
Marketing Type:
-
Hot Product 2024, Ordinary Product
-
Static Pressure:
-
415N/cm
-
Operating Weight:
-
18,000 kg
-
Fuel Tank Volume:
-
262 L
-
Tires Type:
-
20.5-25
Contact Way
Sales Manager: Frank Xie
Whatsapp/Mobile Phone/Wechat: +86 18321199733
Email: frank@evangelchina.com
Whatsapp/Mobile Phone/Wechat: +86 18321199733
Email: frank@evangelchina.com
Pls feel free to contact me if you need more information. Looking forward to your news!
Products Description

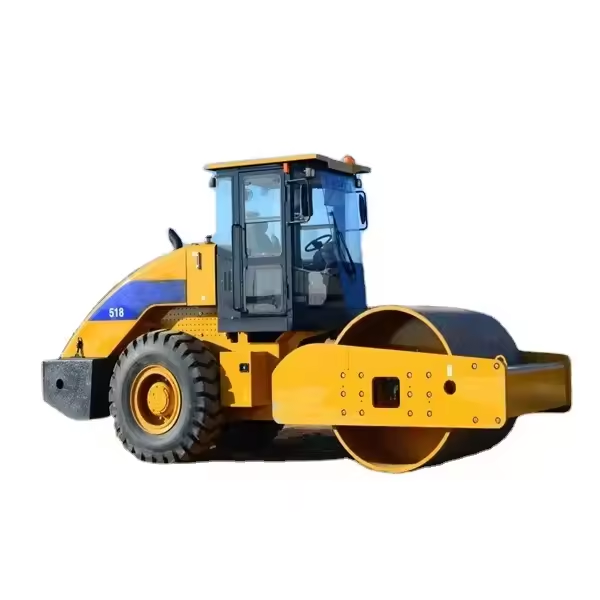

18 ton single drum roller compactor road roller
SEM518 in stock for sale
High efficiency and low consumption
Engine can precisely controls the fuel jet according to the various working modes, to make the fuel burn more sufficiently.
Excellent reliability and durability
The self-independently DOMCS dynamic optimized intelligent control system realizes the perfect match of the engine and the main pump, making the movement more fast and also prolonging the service life.
Users friendly design
The brand-new damping system, cab with extra-large view, strengthened noise reduction design, greatly improve the operation experience.
Vibe Pod Design
* Eccentric vibe pod design, extends system life by 50%
* Steel shot moving inside closed eccentric block, stable and reliable vibe amplitude, reduces impact to motor, prolongs maintenance period of vibratory system
* Completely sealed eccentric gear eliminates contamination, prolongs bearing life
* SEM520/522 are equipped with a 50 mm thick drum compared to competitors with a 40 mm thick drum, provides increased compaction performance versus the competition
* Eccentric vibe pod design, extends system life by 50%
* Steel shot moving inside closed eccentric block, stable and reliable vibe amplitude, reduces impact to motor, prolongs maintenance period of vibratory system
* Completely sealed eccentric gear eliminates contamination, prolongs bearing life
* SEM520/522 are equipped with a 50 mm thick drum compared to competitors with a 40 mm thick drum, provides increased compaction performance versus the competition
Cooling System
Isolated modular cooling system
* Suction style fan pulls low temperature air through the radiator, providing superior cooling capability
* Optional high ambient cooling system allows the machine to work in ambient temperature up to 50 ℃
Shunt tank provides constant system pressure and provides easy visual check of coolant leve
Isolated modular cooling system
* Suction style fan pulls low temperature air through the radiator, providing superior cooling capability
* Optional high ambient cooling system allows the machine to work in ambient temperature up to 50 ℃
Shunt tank provides constant system pressure and provides easy visual check of coolant leve
Vibratory Hydraulic System
Closed center hydraulic system
* Improves efficiency by 20% over the open center system
* Reduces oil contamination, prolongs life of hydraulic system
* Maintains higher pressure and smaller energy loss
* Allows for simpler hose routing
* Requires smaller volume hydraulic tank, reduces maintenance cost
* Improves efficiency by 20% over the open center system
* Reduces oil contamination, prolongs life of hydraulic system
* Maintains higher pressure and smaller energy loss
* Allows for simpler hose routing
* Requires smaller volume hydraulic tank, reduces maintenance cost
World class vibratory hydraulic components
* SEM518/520 utilize Sauer piston pump and motor
* SEM522 utilize Rexroth piston pump and motor
Vibratory hose
* Utilize Eton hoses and joints, high reliability
* Optimized hose routing, prolongs hose life
Key Features
Application/Versatility
* Applications include road, railway, airfield and industry yard compaction
* Optional diamond shape pad-foot roller for compacting clay soils
* Optional square shape pad-foot roller for compacting sandy materials
Application/Versatility
* Applications include road, railway, airfield and industry yard compaction
* Optional diamond shape pad-foot roller for compacting clay soils
* Optional square shape pad-foot roller for compacting sandy materials
High efficiency
* 50mm drum, compaction performance is 10%~15% better than competitors
* Isolated modular cooling system, works in ambient temperature of 43 ℃
Reliability
* Vibration system utilizes an eccentric vibe pod design, extends life up to 50%
* Closed center hydraulic system, world famous piston pump and motor
* Electronically controlled transmission, easy and comfortable to operate
* 50mm drum, compaction performance is 10%~15% better than competitors
* Isolated modular cooling system, works in ambient temperature of 43 ℃
Reliability
* Vibration system utilizes an eccentric vibe pod design, extends life up to 50%
* Closed center hydraulic system, world famous piston pump and motor
* Electronically controlled transmission, easy and comfortable to operate
Operation
* Digital frequency meter, monitors compaction frequency
* Three level alarm system and Engine speed guage monitor machine performance
Tiltable Cab
SEM offers a tiltable cabin which provides more convenient maintenance of the pump, transmission, hose and electronic components
* Hydraulic tiltable cab is optional
SEM offers a tiltable cabin which provides more convenient maintenance of the pump, transmission, hose and electronic components
* Hydraulic tiltable cab is optional
Specification
|
Model
|
SEM518
|
|
Std Rated Power-Gross
|
129 kW
|
|
Rated Speed
|
2,000 r/min
|
|
Operating Weight
|
18,000 kg
|
|
Fuel Tank Volume
|
262 L
|
|
Max. Grade Ability w/o vibbration
|
34%
|
|
Turning Radius Inside Drum Edge
|
6,350 mm
|
|
Static Pressure
|
461 N/cm
|
|
Steering Angle
|
±33 °
|
|
Swing Angle
|
±12 °
|
|
F/R I
|
2.98 km/h
|
|
F/R II
|
5.88 km/h
|
|
F/R III
|
9.60 km/h
|
|
Hydraulic Oil Tank Volume
|
80 L
|
|
Freqency-Hi/Lo
|
30/28 HZ
|
|
Amplitude-Hi/Lo
|
2/1 mm
|
|
Excitation Force (High/Low)
|
360/208 kN
|
|
Drum Width
|
2,130 mm
|
|
Drum Diameter
|
1,600 mm
|
|
Drum Thickness
|
50 mm
|
|
Tires Type
|
20.5-25
|
