Quick Details
-
Max. Loading Capacity:
-
2000kg
-
Weight (KG):
-
600 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JUYOUMECH
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1400*1400*2.5MM
-
Power (kW):
-
5.5 kW
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Mixing Tank
-
Function:
-
Mixer Blender
-
After-sales Service Provided:
-
Online Support Video Technical Support
-
Feature:
-
Efficient Mixing Equipment
-
Mixing type:
-
Scraper Mixer Paddle
-
Homogenizer:
-
2800r/min
-
Usage:
-
Chemical Industry
-
Mixing speed:
-
0-63 R/min
-
payment term:
-
TT
Quick Details
-
Barrel Volume (L):
-
2100
-
Max. Loading Volume (L):
-
2155 L
-
Range of Spindle Speed(r.p.m):
-
45 - 55 r.p.m
-
Max. Loading Capacity:
-
2000kg
-
Weight (KG):
-
600 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JUYOUMECH
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1400*1400*2.5MM
-
Power (kW):
-
5.5 kW
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Mixing Tank
-
Function:
-
Mixer Blender
-
After-sales Service Provided:
-
Online Support Video Technical Support
-
Feature:
-
Efficient Mixing Equipment
-
Mixing type:
-
Scraper Mixer Paddle
-
Homogenizer:
-
2800r/min
-
Usage:
-
Chemical Industry
-
Mixing speed:
-
0-63 R/min
-
payment term:
-
TT
50L- 6000L Stainless steel Liquid Chemical Mixer shampoo mixer production line agitator mixing tank

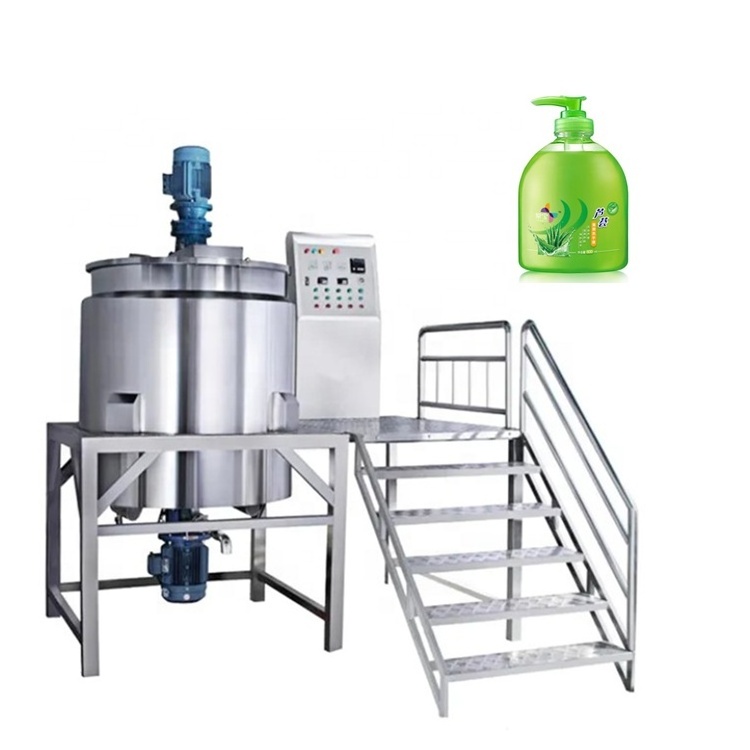

Introduction of Liquid Mixing Tank
Stainless Steel Mixing Tank is widely for manufacturing various liquid products such as liquid detergent, shampoo, hair conditioner, body shower etc. The mixer tank consists of 3 layers stainless steel. The heating method can be electric heating or steam heating, and the temperature can be set according to the different products formula. Bottom homogenizer is optional. The top agitator designed with wall scraper mixer to enhance the mixing efficiency.
Features of Liquid Mixing Tank
1.Finished products can be discharged by valve or match a screw pump;
2.Double mixing systems: top wall scraper mixer and high shear bottom homogenizer;
3.Heating systems: electric heating or steam heating optional, or without heating movable design: the mixing tank can be small batch products mixing;
4.Industrial mixer/mixing equipment/mixing tank with agitator has high speed dispenser, mixing and disperse viscosity, solid and liquid, etc. Various kind of raw material will be dissolve which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production period.
Technical Parameters of Liquid Mixing Tank
|
Volume |
About 2155L |
|
Barrel body size |
About diameter 1400*height 1400mm |
|
Mixing power |
All copper core motor 5.5kw; rotate speed 45r/min |
|
Mixing type |
frame mixing with wall scraping and bottom scraping |
|
Emulsification power |
All copper core motor 11kw; rotate speed 2800r/min |
|
Reducer |
Cycloidal needle B3 |
|
material |
304stainless steel |
|
Material thickness |
Barrel thickness 2.5mm |
|
Discharge port |
400mm above the ground, 2-inch valve |
|
Equipment structure |
Single layer barrel body, upper flat top, lower cone bottom |
