Quick Details
-
Dimension(L*W*H):
-
2625x2680x2130mm
-
Power (kW):
-
37kw, 30kw, 15kw
-
Weight (KG):
-
4300 kg
-
Working air pressure:
-
0.55MPa
-
Working thickness:
-
2-100mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Working length:
-
≥630mm
-
No. 1 sand belt speed:
-
21m/s
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BKS
-
Voltage:
-
380/400/415V
-
Dimension(L*W*H):
-
2625x2680x2130mm
-
Power (kW):
-
37kw, 30kw, 15kw
-
Weight (KG):
-
4300 kg
-
Working air pressure:
-
0.55MPa
-
Working thickness:
-
2-100mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Working length:
-
≥630mm
-
No. 1 sand belt speed:
-
21m/s

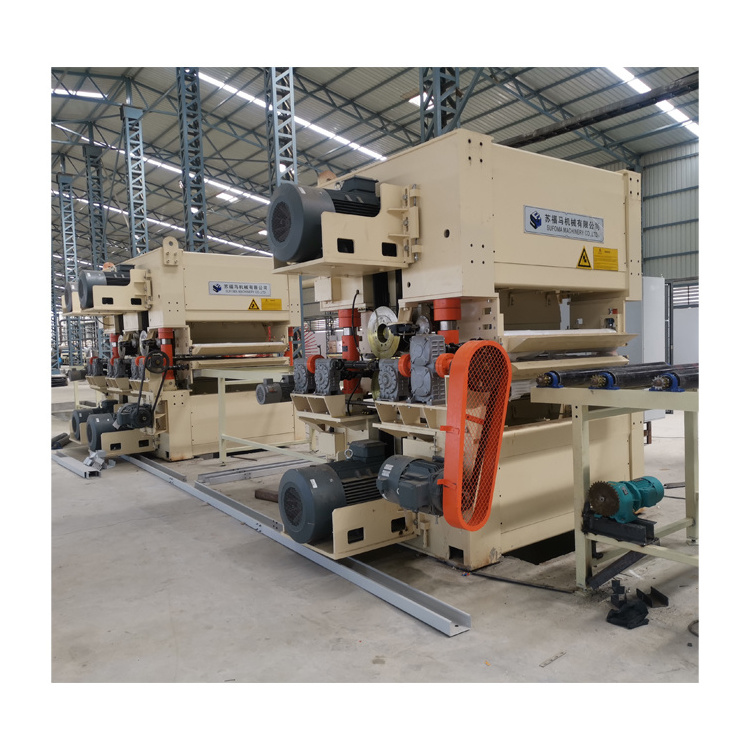

Full automatic plywood s and er sanding machine
automatic sanding machine
This machine is one of the necessary equipment for thickness adjustment, fine sanding, and polishing of fiberboard, shaving board, plywood board, man-made board and panel-type material. It is with high precision,easy and safe operation.
Main Features
1. Heavy-duty wide-belt sanding machine has a set of cleaning equipment (bristle) on the back, saving labors.
2.4 sets of Electro-Optic Systems instead of 4 limit switches, which control the swing of sanding belt, accurate and safer.
3. 14# channel steel , while others' 12# channel steel, heavy shelves, secure, wearable.
4. Big motor, enough power
5. Famous brand electric device: Chint
6. In the width 1000mm machine, roller shaft head diameter is 50mm, solid durable. (In processing, board thickness more than which can be processed, it will hit the rollers. If continue work, board will be not smooth.)
7. In wood planning sanding machine, the pressing roller equip protecting device to keep the board on the feeding table, which keep the operators safe..
8. Wood planning sanding machine’s roller is fromTaiwan, high-quality sand roll.
9. All export products have built-in motor.
10. Processing smoothness: error on the eight points of plate is within 6-7 decimillimetre, higher than the national standard 12 decimillimetre.
11. When there is any emergency or malfunction during work, the machine will be stopped automatically and lifting table will be automatically down to protect the workpiece and operator..
