Quick Details
-
Return Force (kN):
-
1000 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
baixing
-
Year:
-
20210320
-
Voltage:
-
380V50HZ
-
Dimension(L*W*H):
-
1500*1200*3500
-
Weight (T):
-
22 T
-
Model Number:
-
YL32
-
Motor Power (kw):
-
44 kw
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support
Quick Details
-
Machine Type:
-

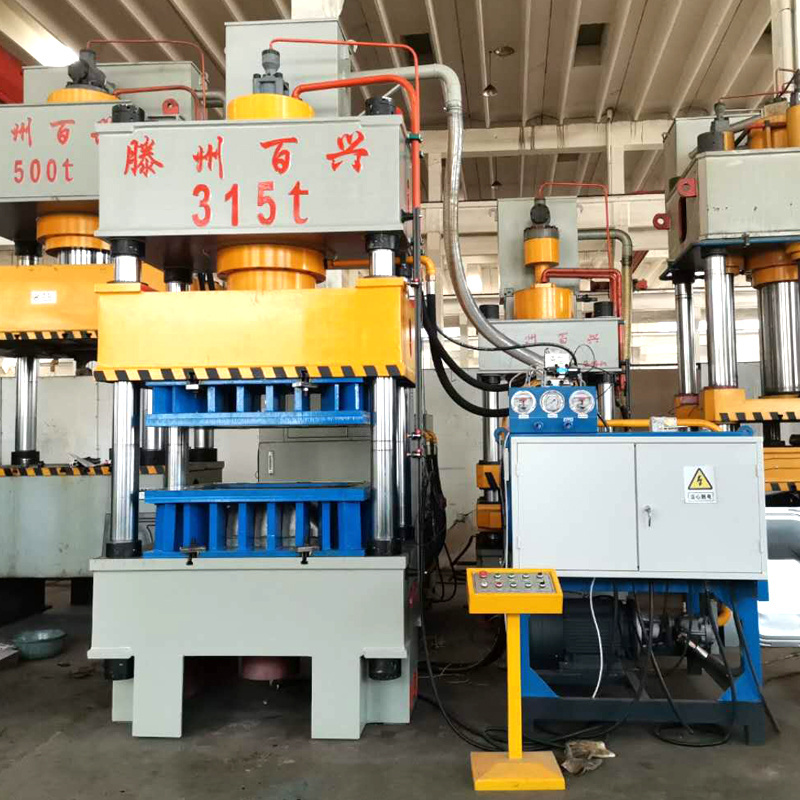

Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
1000
-
Ejector Force (kN):
-
1200
-
Return Force (kN):
-
1000 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
baixing
-
Year:
-
20210320
-
Voltage:
-
380V50HZ
-
Dimension(L*W*H):
-
1500*1200*3500
-
Weight (T):
-
22 T
-
Model Number:
-
YL32
-
Motor Power (kw):
-
44 kw
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support
|
序号(NO.)
|
项目(ITEM)
|
|
单位(UNIT)
|
规格(NORMS)
|
|
|
1
|
(Nominal capacity)
|
|
KN
|
3150
|
|
|
2
|
（Ejection nominal force）
|
|
KN
|
400
|
|
|
3
|
(Working pressure)
|
|
MPa
|
25
|
|
|
4
|
(Master cylinder effective stroke)
|
|
mm
|
800
|
|
|
5
|
(Ejector Stroke)
|
|
mm
|
300
|
|
|
6
|
(Maximum opening height）
|
|
mm
|
1250
|
|
|
7
|
(minimum shut height)
|
|
mm
|
100
|
|
|
8
|
(Effective area ofworking table)
|
左右(L/R)
|
mm
|
1600
|
|
|
|
|
前后(F/B)
|
mm
|
1200
|
|
|
9
|
(Speed)
|
rapid down
|
mm/s
|
120
|
|
|
|
|
working speed
|
mm/s
|
5-10
|
|
|
|
|
return trip
|
mm/s
|
90
|
|
|
10
|
motor power
|
|
KW
|
18.5
|
|
