JUKI Brand High-Speed Automatic PCB SMT SMD Pick and Place Machine New Condition with Good Service for JUKI SMT Electric Feeder

• High-speed placements of up to 100,000 CPH.*¹
• Best-in-class placement rate per square meter(sq ft).*²
• Integrates seamlessly with the production enviroment
• Trace Monitor tracks quality throughout production process
• Low impact placement for flexible circuits
• The P20 high-precision planet head is ideal for high speed pocking and placing from a single reel.
• State-of-the-art centering and inspection vision system
• New high accuracy camera for inspection and centering

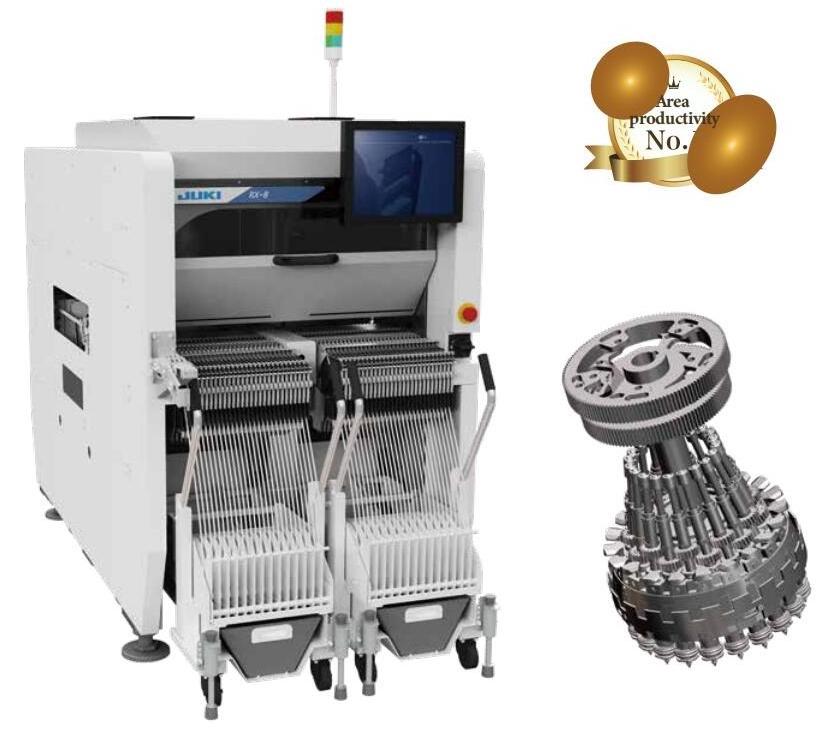

  High -Speed Compact Modular Mounter RX-8
  Board size	50×50~510mm*¹ *²×450mm
  Component height	3mm
  Component size	0201*³~5mm
  Placement speed (Optimum)	Chip	100,000CPH
  Placement Accuracy	±0.04mm (Cpk 1)
  Feeder capacity	Upto 56
  Power supply	3-phase AC200V, 220V 430V *
  Apparent power	2.1kVA
  Operating air pressure	0.5±0.05MPa
  Air consumption (standard)	20L/ min ANR (during normal operation)
  Machine dimensions (W x D x H)*	998mm×1,895mm×1,530mm
  Mass (approximately)	1,810 kg (with fixed bank)/ 1,760 kg (with bank changing)

  *1 BOC, Bad Mark, and 2D barcode can be read only if board length is from 50mm to 350mm
  *2 In long board mode (two boards can be produced simultaneously up to 420mm long).
  *3 Please contact JUKI for details.
  *4 When using RF08AS
  *5 220V – 430V requires a separate transformer
  *6 Depth D does not include the monitor, and height H does not include the signal light when the conveyor height is 900 mm.

1. Local Saled Service Team

2. Training Operators

3. Install & Debug Machines
