Quick Details
-
Brand Name:
-
GEYA
-
Model Number:
-
DXHT-13 ABS without terminal
-
Body material:
-
ABS
-
Transparent door:
-
PC
-
Certificate:
-
CE, ROHS
-
Protection Level:
-
IP65
Quick Details
-
Voltage:
-
Customization
-
Current:
-
Customization
-
Place of Origin:
-
ZHE
-
Brand Name:
-
GEYA
-
Model Number:
-
DXHT-13 ABS without terminal
-
Body material:
-
ABS
-
Transparent door:
-
PC
-
Certificate:
-
CE, ROHS
-
Protection Level:
-
IP65
············This link price is only for DXHT-13 ABS without terminal·············
Product Description

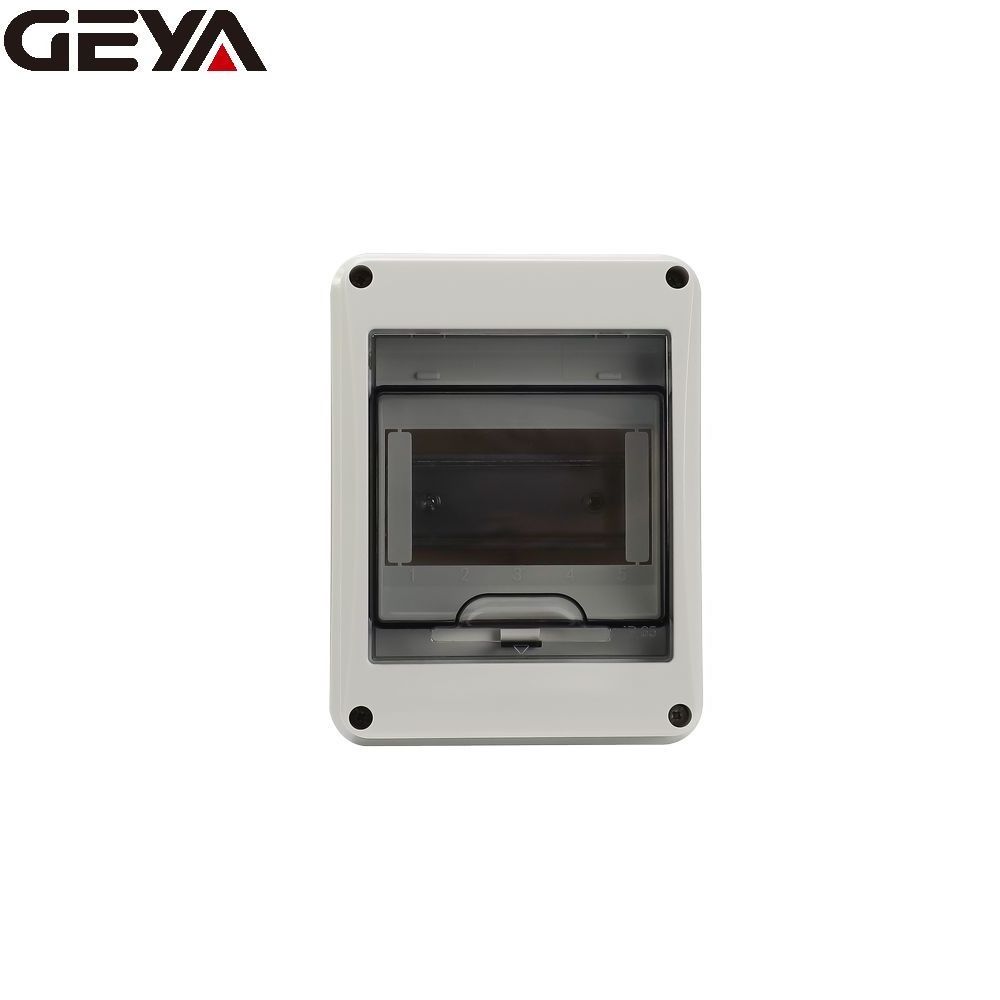

The bottom shell and face frame are made of new ABS material, and the transparent face cover is made of new PC material. It has the characteristics of good toughness, high strength, good impact resistance, and long service life.
▪ It is suitable for waterproof, dustproof, anti corrosion, and other indoor and outdoor places
▪ Executive standard: GB/T 17466.1；GB/T 17466.24；IEC 60529 IP65
▪ Patent No.: 202230220346.8
Specification
|
NO.
|
Model
|
Row Number
|
Dimension(L*W*H)(mm)
|
Zero and earth bus configuration
|
Carton size(mm)(L*W*H)
|
Gross weight（kg）
|
Qty
|
|
1
|
DXHT-5WAY
|
Single
|
129*170*95
|
zero:3 holes
earth:3 holes |
555*365*520
|
18.2
|
40
|
|
2
|
DXHT-8WAY
|
|
183*170*95
|
zero:5 holes
earth:5 holes |
520*390*545
|
17.8
|
30
|
|
3
|
DXHT12WAY
|
|
255*200*105
|
zero:8 holes
earth:8 holes |
520*425*540
|
18
|
20
|
|
4
|
DXHT-15WAY
|
|
309*200*105
|
zero:8 holes
earth:8 holes |
625*460*430
|
17.3
|
16
|
|
5
|
DXHT-18WAY
|
|
363*200*110
|
zero:8 holes
earth:8 holes |
575*383*430
|
12.6
|
10
|
|
6
|
DXHT-24WAY
|
Double
|
272*350*110
|
zero:two line 8 holes
earth:two line 8 holes |
595*380*574
|
16.6
|
10
|
Packing List
|
Model
|
Size
|
|
|
PCS/CTN
|
Inner box size
(CM)
|
Carton Size
(CM)
|
G.W.
(KG)
|
||
|
|
L
|
W
|
H
|
|
|
|
|
||
|
HT-5
|
129
|
170
|
95
|
40
|
13.4*17.5*10
|
55.5*36.5*52
|
18.2
|
||
|
HT-8
|
183
|
170
|
95
|
30
|
17.5*18.8*10
|
52*39*54.5
|
17.8
|
||
|
HT-12
|
255
|
200
|
105
|
20
|
20.5*26*11
|
57*42.5*54
|
18
|
||
|
HT-15
|
309
|
200
|
105
|
16
|
20.5*31.4*11
|
64.8*46*43
|
17.3
|
||
|
HT-18
|
363
|
200
|
110
|
10
|
20.5*36.8*11.5
|
60.5*38.8*43
|
12.6
|
||
|
HT-5
|
129
|
170
|
95
|
40
|
13.4*17.5*10
|
55.5*36.5*52
|
18.2
|
||
|
HT-8
|
183
|
170
|
95
|
30
|
17.5*18.8*10
|
52*39*54.5
|
17.8
|
||
|
HT-12
|
255
|
200
|
105
|
20
|
20.5*26*11
|
57*42.5*54
|
18
|
||
|
HT-15
|
309
|
200
|
105
|
16
|
20.5*31.4*11
|
64.8*46*43
|
17.3
|
||
|
HT-18
|
363
|
200
|
110
|
10
|
20.5*36.8*11.5
|
60.5*38.8*43
|
12.6
|
||
