- Product Details
- {{item.text}}
Quick Details
-
Power Source:
-
Electric
-
Capacity:
-
22
-
Power (W):
-
480
-
Voltage (V):
-
220
-
Model Number:
-
UC-5480
-
Brand Name:
-
ZZKD
-
Place of Origin:
-
Henan, China
-
Product name:
-
Ultrasonic Jewelry Bowling Ball Cleaner Machine
-
Working frequency:
-
40KHz
-
Time control:
-
(1-99 minutes timing)
-
Net weight:
-
12.3KG
-
Gross weight:
-
14.5KG
-
The slot size:
-
500*300*150mm(L*W*H)
-
Packing size:
-
657*452*430mm(L*W*H)
-
Heating power:
-
500W/220v
-
Power frequency is adjustable:
-
0-100%
-
Optional drain valve:
-
YES
Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Warranty:
-
1 Year
-
Application:
-
Household
-
Power Source:
-
Electric
-
Capacity:
-
22
-
Power (W):
-
480
-
Voltage (V):
-
220
-
Model Number:
-
UC-5480
-
Brand Name:
-
ZZKD
-
Place of Origin:
-
Henan, China
-
Product name:
-
Ultrasonic Jewelry Bowling Ball Cleaner Machine
-
Working frequency:
-
40KHz
-
Time control:
-
(1-99 minutes timing)
-
Net weight:
-
12.3KG
-
Gross weight:
-
14.5KG
-
The slot size:
-
500*300*150mm(L*W*H)
-
Packing size:
-
657*452*430mm(L*W*H)
-
Heating power:
-
500W/220v
-
Power frequency is adjustable:
-
0-100%
-
Optional drain valve:
-
YES

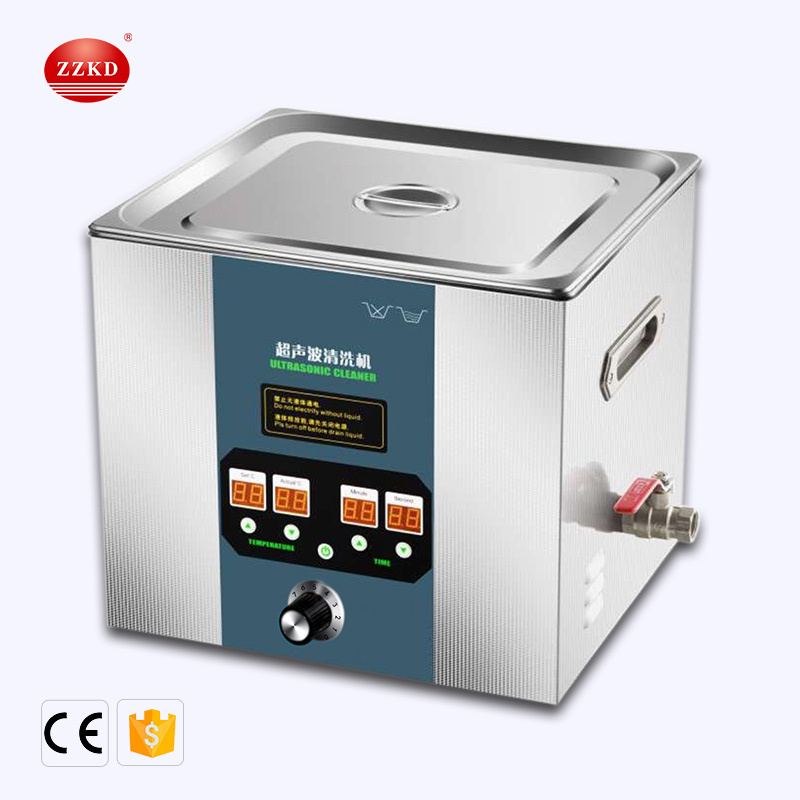

Ultrasonic Jewelry Bowling Ball Cleaner Machine
The ultrasonic cleaning machine converts the high-frequency oscillating signal generated by the ultrasonic generator into a high-frequency mechanical oscillation through a transducer and propagates into the liquid. The ultrasonic wave radiates forward and densely in the liquid and generates tens of thousands of tiny bubbles. These bubbles form and grow in the negative pressure zone during the propagation process, and close rapidly in the positive pressure zone. In this process called "cavitation effect", the bubble closure can form an instantaneous high pressure of thousands of atmospheres. The continuous high pressure is like a myriad of small "explosions" that constantly impact the surface of the object, causing the surface of the object and the dirt in the gap to peel off quickly, thereby achieving cleaning purposes.
|
Model
|
Internal Dimensions( L*W*H ) |
External Dimensions( L*W*H ) |
Volume (L) |
Gross Weight ( KG) |
Ultrasonic Power ( W ) |
Heating Power (W)
|
|
UC- 5 120 |
240*135*100 |
268*170*2 90 |
3. 2 |
6.7 |
120 |
100 |
|
UC- 5120L |
240 *1 35 *1 5 0 |
268 *170* 290 |
5.0 |
7.2 |
1 2 0 |
200 |
|
UC- 5180 |
30 0 *150*1 0 0 |
325*178*290 |
4.5 |
7.5 |
180 |
200 |
|
UC- 5180L |
300* 15 0*1 5 0 |
3 25 * 178*290 |
6.8 |
7.7 |
180 |
2 00 |
|
UC- 5 240L |
300*240*150 |
368*270* 290 |
11 |
8.5 |
240 |
300 |
|
UC- 5 360 |
330*300*150 |
397*335*317 |
15 |
11.5 |
360 |
400 |
|
UC- 5 360L |
330*300*200 |
397*335*368 |
20 |
12.5 |
360 |
400 |
|
UC- 5 480 |
500*300*150 |
560*320*3 17 |
22 |
14.5 |
480 |
500 |
|
UC- 5 600 |
500*300*200 |
560*32 0 *385 |
30 |
16.0 |
600 |
5 00 |
1. Independently research and develop MCU-weep ultrasonic generator drive circuit, the ultrasonic effect is even and strong.
2. Independent research and development of industrial grade high Q value transducer, high ultrasonic conversion efficiency and long service life.
3. One-button degassing function, quick removal of water in the air, better ultrasonic cleaning effect
4. Power adjustment function can be adjusted according to different requirements of cleaning products to achieve the best cleaning effect
5. Imported high-strength glue, no nail bonding process, longer service life of the tank.
6. Digital timing, cleaning time 1-99min and digital heating control, temperature 1-80 °C arbitrary setting.
7. The inner tank is made of imported SUS304 and 1.0mm stainless steel.
8. The washing basket is made of high quality 304 stainless steel mesh and the surface is electrolytically polished.
9. The shell is made of high quality stainless steel for better anti-corrosion effect.
Warranty & Service:
Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.
| Shipping method | Note |
| Express | Door to door, very convenient, don't need to clearance or pick-up |
| By air |
Airport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you. |
| By sea |
Port to port and you need to do the customs clearance and pick-up the goods
at your local port, which you can have a local shipping agent to do for you. |
1.What's the
minimum order quantity
?
One set at present
2.What kind of
payment term
do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term will be discussed during the deal.
3. How will you
delivery
these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4.How will
package
glass equipment?
We package these glass equipment in good and non fumigation standard plywood case
5.Can you accept
OEM
terms?
Sure.
We have the confidence in providing the professional products that you want.
