Quick Details
-
Brand Name:
-
Twilight Optic
-
Use:
-
FTTH
-
Warranty Time:
-
Limited
-
Product name:
-
24 ports fiber optic patch panel
-
Connector Type:
-
Singlemode or multimode
-
Module Type:
-
rack mounted
-
Simplex or Duplex:
-
Max 48 cores
-
Connector:
-
SC Simplex or LC Duplex
-
Dimension:
-
1U, 19in
-
Material:
-
cold rolled steel sheet
-
Size:
-
485*295*47MM
-
Color:
-
Black white grey
-
Warranty:
-
Limited life
Quick Details
-
Type:
-
Fiber optic patch panel
-
Model Number:
-
TW-DR03 -1U
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Twilight Optic
-
Use:
-
FTTH
-
Warranty Time:
-
Limited
-
Product name:
-
24 ports fiber optic patch panel
-
Connector Type:
-
Singlemode or multimode
-
Module Type:
-
rack mounted
-
Simplex or Duplex:
-
Max 48 cores
-
Connector:
-
SC Simplex or LC Duplex
-
Dimension:
-
1U, 19in
-
Material:
-
cold rolled steel sheet
-
Size:
-
485*295*47MM
-
Color:
-
Black white grey
-
Warranty:
-
Limited life

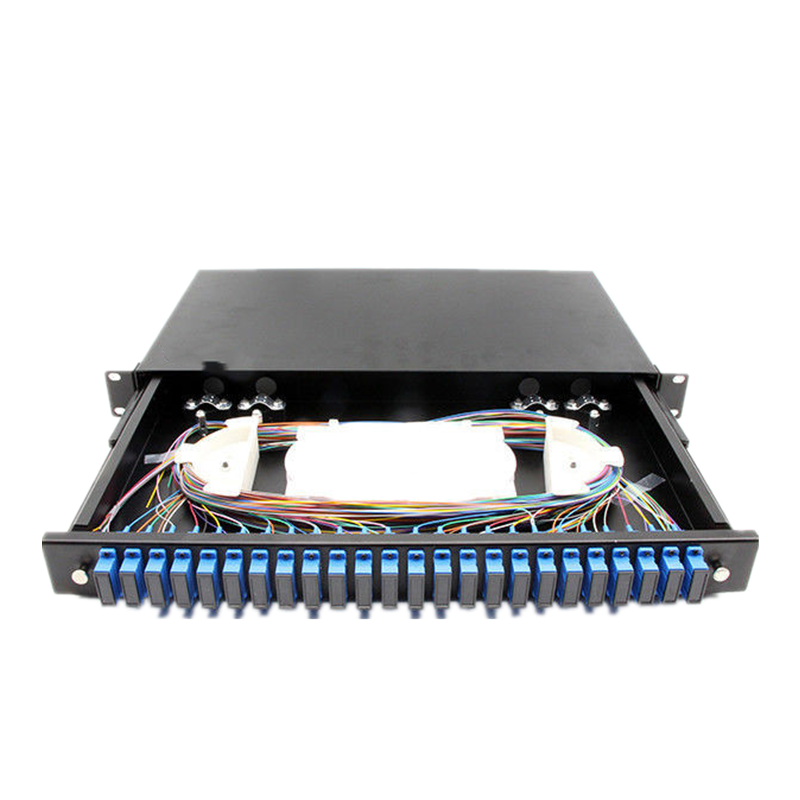

12/24 ports rack mounted fiber optic patch panel
Product details
| Product name | 12/24 ports fiber optic patch panel |
| Connector Type | Singlemode or multimode |
| Module Type | rackr type |
| Simplex or Duplex | Max 48 cores |
| Connector | SC Simplex or LC Duplex |
| Dimension | 1U, 19in |
| Material | cold rolled steel sheet |
| Size | 485*295*47mm |
| Color | Black white grey |
| Warranty | Limited life |
| Product Keywords | 24 Cores Rack Fiber Patch Panel,fiber distribution frame,ODF 96 puertos |
Description:
Fiber optic patch panel is also called fiber distribution panel. Its main function is to terminate the fiber optic cable and provide connection access to the cable’s individual fibers. Fiber patch panels are termination units, which are designed to provide a secure, organized chamber for housing connectors and splice units. Fiber patch panels are available in rack mounted or wall mounted. Both types can house, organize, manage and protect fiber optic cable, splices and connectors. Rack mount panels is usually 19" or 23" universal width. The height of patch panel can be 1U, 2U, 3U, 4U, 6U, etc. The opening of the optical fiber patch panels can be slidable or fixed or revolving. Wall mount patch panel is more customized, it can be any structure and dimension. And the patch panels can be used for indoor or outdoor application.
Specifications
Case size: 483*210*43mm. It occupies 1U in a 19 "rack cabinet.
Made of black sheet metal.
Easily removable connection tray.
The front has 24 vertical holes to install fiber optic couplers in SC Duplex format (2 FO connectors).
The connectors are not supplied and must be purchased separately. Compatible with SC Duplex adapter
Application:
Telecommunications
Fiber to the home (FTTH)
LAN / WAN
CATV
