Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
≥30T
-
Drive Wheel:
-
8X4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Field installation, commissioning and training, Online support, Field maintenance and repair service
-
Place of Origin:
-
Hubei, China
-
Dimensions (L x W x H) (mm):
-
11245x2496x3600 mm
-
Cargo Tank Dimension:
-
8000x2300x1650mm
-
Product name:
-
8x4 Tipper Truck Dump truck
-
Drive Type:
-
Heavy Duty Right Hand Drive, Or Left Hand Drive
-
Drive Model:
-
8X4 12 Wheels
-
Tipper Type:
-
Front Tipping, Or Middle Tipping, T-Type
-
Hydraulic System:
-
Hyva Brand 191
-
Tipper Body:
-
8000*2300*1650mm, As Customer's Requirement
-
Loading Capacity:
-
60 Ton
-
Other Brand:
-
HOWO,SHACMAN,FAW,BEIBEN,FOTON
-
Application:
-
Transport Sand Stone Soil Coal
-
Brand:
-
SHACMAN
Quick Details
-
Condition:
-
New
-
Horsepower:
-
351 - 450hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
≥30T
-
Drive Wheel:
-
8X4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Field installation, commissioning and training, Online support, Field maintenance and repair service
-
Place of Origin:
-
Hubei, China
-
Dimensions (L x W x H) (mm):
-
11245x2496x3600 mm
-
Cargo Tank Dimension:
-
8000x2300x1650mm
-
Product name:
-
8x4 Tipper Truck Dump truck
-
Drive Type:
-
Heavy Duty Right Hand Drive, Or Left Hand Drive
-
Drive Model:
-
8X4 12 Wheels
-
Tipper Type:
-
Front Tipping, Or Middle Tipping, T-Type
-
Hydraulic System:
-
Hyva Brand 191
-
Tipper Body:
-
8000*2300*1650mm, As Customer's Requirement
-
Loading Capacity:
-
60 Ton
-
Other Brand:
-
HOWO,SHACMAN,FAW,BEIBEN,FOTON
-
Application:
-
Transport Sand Stone Soil Coal
-
Brand:
-
SHACMAN

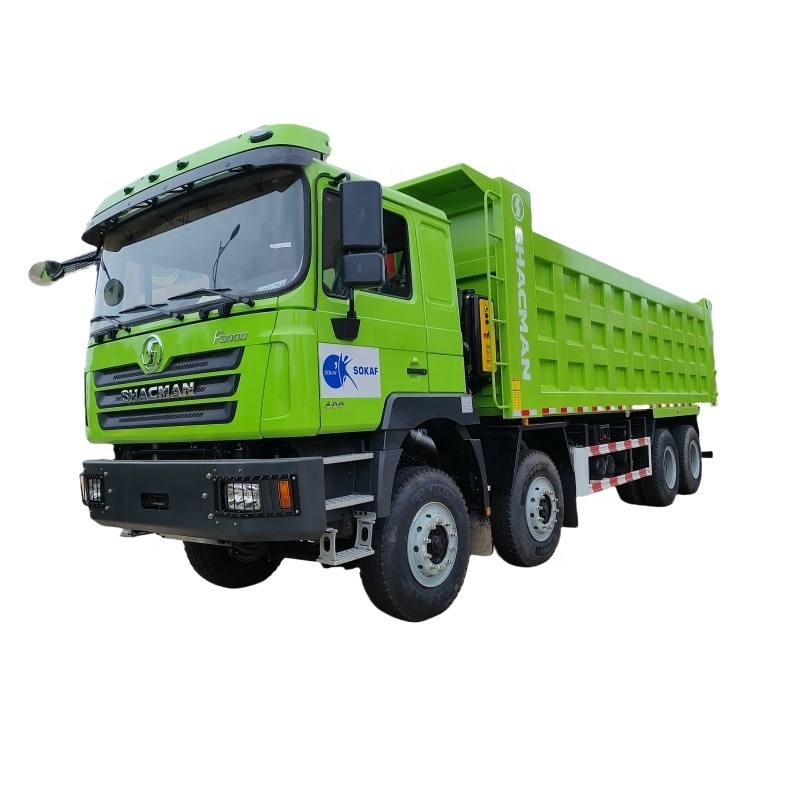

SHACMAN 8x4 F3000 60 tons Heavy Duty Dump Trucks 12 Wheeler 400HP Dump Truck tipper for sale
Product features:
Dump truck, also called tipper truck, which mainly use for transporting cargo,sand,or garbage.
Currently the dump truck are most off road dump truck, another kind is articulated dump truck.
Dump truck design 4*2.4*4.6*2.6*4.6*6.8*4.8*6.8*8. road dump truck, mine dump truck.
Our company produce the dump truck with the loading capacity from 3 tons ~ 40 tons.
Product display:
| Cabin | Driving type , 8x4, Left hand drive . | |
| F3000 medium long flat top cab, with A/C | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10245×2496×3386 |
| Wheel base (mm) | 1800+3500+1350 | |
| Wheel track (front/rear) (mm) | 2020/1800 | |
| Approach/Departure angle(°) | 19/18 | |
| Weight in KGS | Tare Weight | 14860 |
| Rated payload | 36000 | |
| Front axles loading capacity |
MAN 9.5T |
|
| Rear axles loading capacity |
16T*2 MAN |
|
| Max. driving speed ( km/h ) | 80 | |
| Engine | Brand | WEICHAI |
| Model |
WP12.400E201 |
|
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 400hp | |
| Emission standard | Euro Ⅱ | |
| Gearbox |
10JSD180, 10 Forwards gear & 2 reverse gear |
|
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 400 | |
| Tire |
12.00R20, 13 pieces including one spare |
|
| Brakes |
Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
|
|
|
Thickness |
Side | 6mm in high tensile strength steel Q345/B |
| Front | 6mm in high tensile strength steel Q345/B | |
| Bottom | 8mm in high tensile strength steel Q345/B | |
| Dump body Size | (L x W x H) | 8000mm x 2300mm x 1650mm |
|
Tipping hydraulics |
Tipping type | front tipping type |
| Tipping system | Complete set of HYVA brand hydraulics system |
