Quick Details
-
Voltage:
-
Clients Local Standard
-
Dimension(L*W*H):
-
Different Model
-
Weight:
-
1000 KG
-
Marketing Type:
-
Hot Product
-
Name:
-
Sand Washer Gold Wash Plant Spiral Screw Classifier For Sale
-
Keywords:
-
Spiral Classifier
-
Application:
-
Gold
-
Function:
-
Gold Separator
-
Quality:
-
High Leval
-
Installation:
-
Engineer Guide
-
Feature:
-
Easy Maintenance
-
Capacity:
-
High Efficient
-
Price:
-
Negotible
-
Color:
-
Customers' Requirements
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SHUNZHI
-
Voltage:
-
Clients Local Standard
-
Dimension(L*W*H):
-
Different Model
-
Weight:
-
1000 KG
-
Marketing Type:
-
Hot Product
-
Name:
-
Sand Washer Gold Wash Plant Spiral Screw Classifier For Sale
-
Keywords:
-
Spiral Classifier
-
Application:
-
Gold
-
Function:
-
Gold Separator
-
Quality:
-
High Leval
-
Installation:
-
Engineer Guide
-
Feature:
-
Easy Maintenance
-
Capacity:
-
High Efficient
-
Price:
-
Negotible
-
Color:
-
Customers' Requirements

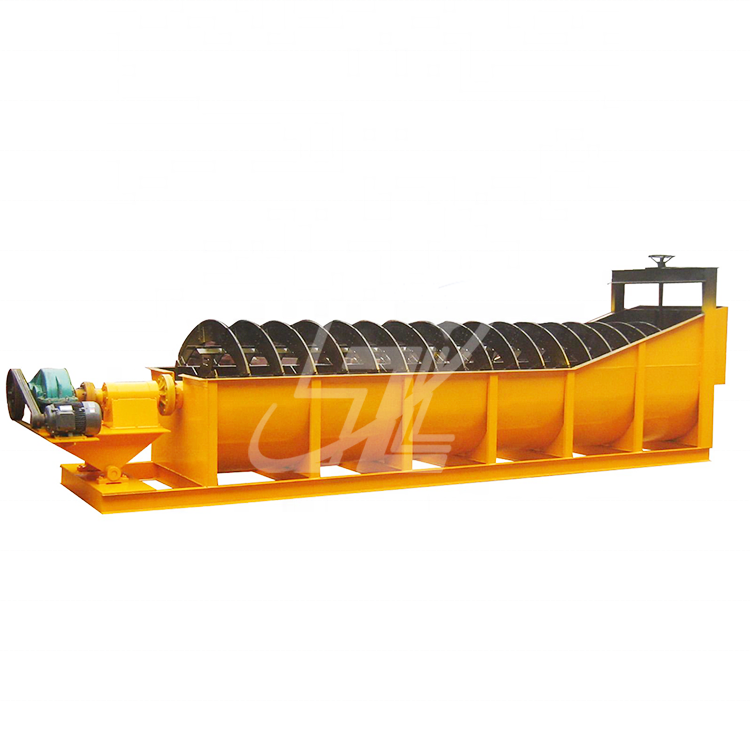

SPIRAL CLASSIFIER
Spiral classifier is mainly composed of transmission device, spiral body, groove body, lifting mechanism, lower support and ore discharge valve. The spiral classifier is widely used in the grinding circuit of beneficiation as the pre-classification and inspect classification machine, and also in the ore washing and desilting operation. It has advantage of simple structure,reliable running, easy operation and so on.
PRODUCT DETAILS
High spiral classifier operation: the grinded pulp is fed into tank from the inlet in the middle of settlement region, and the slurry classification sedimentation area is under the inclined tank. The spiral with low speed rotation stirs the slurry, so that the fine particles rise, and the coarse particles sinks to the bottom of tank. Overflow weir is above the bearing center which is under screw shaft, and is underneath overflow end.
SCOPE OF APPLICATION
GOLD
ORE
QUARTZ
STONE
IRON
ORE
COPPER
ORE
Applicable of spiral classifier:
1. Contral material size from ball mill in the benefication process.
2. Seperate mineral samd amd fine mud in the gravity concentration.
3. Classify the ore pulp according to granularity during the metal ore separation process;
4. Remove sludge/water at the ore separation process.
4. Remove sludge/water at the ore separation process.
5. Clean mud and water in washing mineral process.
Features of spiral classifier:
1. Can be very convenient to control the content of sand ore powder.
2. Spiral classifier has advanced technology and simple process, particularly suitable for ore beneficiation and sand making line.
3. The content of powder with size of 0.00--0.75mm is between 2%-15% and can be adjusted.
4. The quality of powder is easy to control. The adjustment of fine powder is convenient,flexible, and reliable.
1. Can be very convenient to control the content of sand ore powder.
2. Spiral classifier has advanced technology and simple process, particularly suitable for ore beneficiation and sand making line.
3. The content of powder with size of 0.00--0.75mm is between 2%-15% and can be adjusted.
4. The quality of powder is easy to control. The adjustment of fine powder is convenient,flexible, and reliable.
TECHNICAL PARAMETERS
|
Model
|
Type
|
Spiral Dia.
(mm) |
Flume Length
(mm) |
Spiral
Speed (r/min) |
Capacity(t/d）
|
|
Motor Power(kw)
|
|
||
|
|
|
|
|
|
Return Sand
|
Overflow
|
Drive
|
Upgrade
|
||
|
High-weir
single spiral classifier |
FG7.5
|
750
|
5500
|
6.0-10.0
|
340-570
|
65
|
3.0
|
Manual
|
||
|
|
FG10
|
1000
|
6500
|
5.0-8.0
|
675-1080
|
110
|
5.5
|
Manual
|
||
|
|
FG12
|
1200
|
6500
|
5.0-8.0
|
1170-1870
|
155
|
5.5
|
1.5
|
||
|
|
FG15
|
1500
|
8400
|
4.0-6.0
|
1830-2740
|
235
|
7.5
|
2.2
|
||
|
|
FG20
|
2000
|
8400
|
4.0-6.0
|
3240-5400
|
400
|
11
|
2.8
|
||
|
|
FG24
|
2400
|
9210
|
3.6
|
4650-7450
|
580
|
15
|
3.0
|
||
|
|
FG30
|
3000
|
1250
|
3.2
|
11625
|
890
|
22
|
4.0
|
||
|
High-weir
double spiral classifier |
2FG12
|
1200
|
6500
|
5.0-8.0
|
2340-3740
|
310
|
5.5*2
|
1.5*2
|
||
|
|
2FG15
|
1500
|
8400
|
4.0-6.0
|
3660-5480
|
470
|
7.5*2
|
1.5*2
|
||
|
|
2FG20
|
2000
|
8400
|
3.0-5.5
|
7780-11880
|
800
|
11*2
|
2.8*2
|
||
|
|
2FG24
|
2400
|
9210
|
3.6
|
13600
|
1160
|
15*2
|
3*2
|
||
|
|
2FG30
|
3000
|
12500
|
2.0-3.2
|
14600-23400
|
1785
|
22*2
|
4*2
|
||
|
Sumbmerged singlespiral
classifier |
FC12
|
1200
|
8400
|
5.0-8.0
|
1170-1870
|
120
|
7.5
|
2.2
|
||
|
|
FC15
|
1500
|
10500
|
4.0-6.0
|
1830-2740
|
185
|
7.5
|
2.2
|
||
|
|
FC20
|
2000
|
12900
|
2.0-5.5
|
3895-5940
|
320
|
15
|
2.8
|
||
|
|
FC24
|
2400
|
14200
|
2.5-4.0
|
4650-7450
|
455
|
18.5
|
4
|
||
|
|
FC30
|
3000
|
14300
|
3.2
|
11625
|
705
|
30
|
4
|
||
|
Sumbmerged double spiral
classifier |
2FC15
|
1500
|
10500
|
4.0-6.0
|
2280-5480
|
370
|
7.5*2
|
1.5*2
|
||
|
|
2FC20
|
2000
|
12900
|
3.0-5.5
|
6480-11800
|
640
|
11*2
|
3*2
|
||
|
|
2FC24
|
2400
|
14200
|
3.67
|
9300-14900
|
910
|
18.5*2
|
4*2
|
||
|
|
2FC30
|
3000
|
14300
|
3.2
|
23300
|
1400
|
30*2
|
4*2
|
||
