Quick Details
-
Dimension(L*W*H):
-
1785x800x1520mm
-
Year:
-
2022
-
Power (kW):
-
30 kW
-
Weight (KG):
-
3000 KG
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
Color:
-
Customers' Demand
-
Marketing Type:
-
New Product 2022
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dongnuo
-
Voltage:
-
380v or as required
-
Dimension(L*W*H):
-
1785x800x1520mm
-
Year:
-
2022
-
Power (kW):
-
30 kW
-
Weight (KG):
-
3000 KG
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
Color:
-
Customers' Demand
-
Marketing Type:
-
New Product 2022

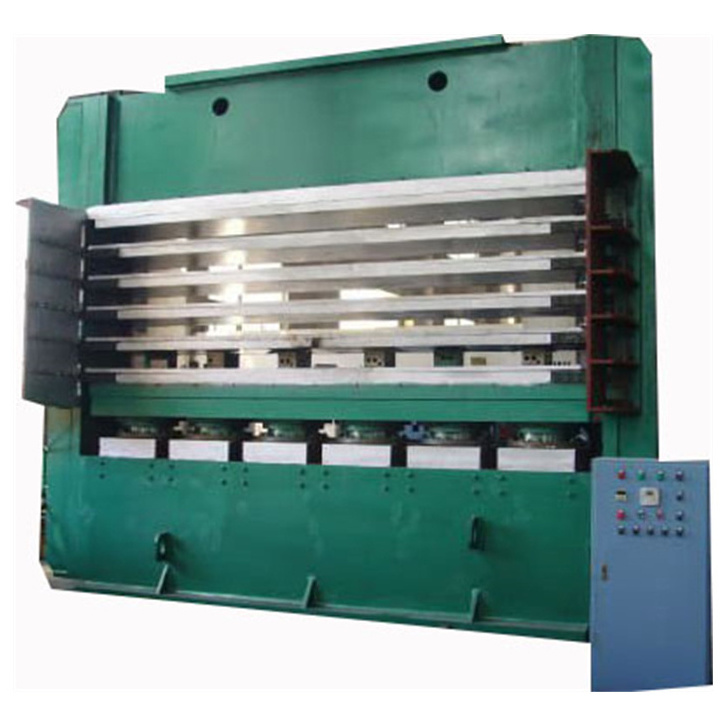

China manufacturer C type tyre tread vulcanizing press/jaw type tyre tread vulcanizing machine
Note:
1-The press has automatic fill pressure, alarm, and opening and closing Etc.
2-The machine pressure can not fell pressure in 30-40 minutes, If fell pressure, it will automatic fill pressure
3-the frame: use Q235A steel, the structure for welding frame After mechanical grinding derusting, paint processing
4-hydraulic cylinder: use ZG270-500 raw material, the Piston use high-density alloy cold cast iron, The seal form of hydraulic cylinder is the YX type sealing ring.
5-The hot plate: Using high strength steel production, Double-sided processing, thickness for 90 mm, The surface roughness as 1.6. Every plate has 16 sets temperature measuring system, and equipped with temperature alarm function. The hot plate is Adopt double bolt connection with the movable decking, Each heating area is equipped with a set of manual regulator, and control Hot plate temperature.
6-Control system: using "mitsubishi" PLC control, It can achieve both manual and automatic control method. Automatic control can achieve automatic switching mode, automatic exhaust, vulcanization timing, automatic fill pressure, vulcanization alarm and fault automatic diagnosis, and other functions. Auxiliary equipment adopts site and remote control, Convenient
Qingdao Dongnuo Rubber Machinery Co., Ltd. is a professional enterprise that develops and sells rubber machinery. It was put into production in 2009. It has 8 experienced rubber machinery professional R&D technicians and 2 external rubber product technical experts from Qingdao University of Science and Technology. 10 CNC machining centers and various large, medium and small machining equipment, heat treatment equipment and precision testing instruments. Professionally undertake the production installation and product technical support of NBR rubber foam hot air vulcanization production line and rubber compound production line. The company's main products are NBR rubber foam hot air vulcanization production line, film cooling line, flat vulcanizing machine, open mill, internal mixer, rubber floor tile forming machine, gym floor mat production line, rubber sealing strip production line, EVA foam vulcanization machine, waste Tire processing equipment, extruders, etc.
The company has passed ISO9001, CE and SGS certification, and its products are sold all over the country, and are also exported to France, Russia, Japan, South Korea, Thailand, Egypt, Indonesia, India, Sri Lanka, Nigeria, Chile and more than 40 countries and regions.
