Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UTECH
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
2950*1980*1750mm
-
Power (kW):
-
15
-
Weight (KG):
-
1100
-
Product name:
-
ATC cnc carving machine
-
Working area:
-
1300*2500*200mm
-
Table Surface:
-
Vacuum adsorption
-
Tool change:
-
Linear tool (optional)
-
Control system:
-
Xingduowei HC-203C
-
Spindle power:
-
9kw air cooled spindle
-
Driving motor:
-
750W JMC 7502 Servo
-
Z axis structure:
-
PMI rail guide+T6 Z axis pieces
-
Inverter:
-
9kw Best
-
Resolution:
-
0.01mm
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
12000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UTECH
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
2950*1980*1750mm
-
Power (kW):
-
15
-
Weight (KG):
-
1100
-
Product name:
-
ATC cnc carving machine
-
Working area:
-
1300*2500*200mm
-
Table Surface:
-
Vacuum adsorption
-
Tool change:
-
Linear tool (optional)
-
Control system:
-
Xingduowei HC-203C
-
Spindle power:
-
9kw air cooled spindle
-
Driving motor:
-
750W JMC 7502 Servo
-
Z axis structure:
-
PMI rail guide+T6 Z axis pieces
-
Inverter:
-
9kw Best
-
Resolution:
-
0.01mm

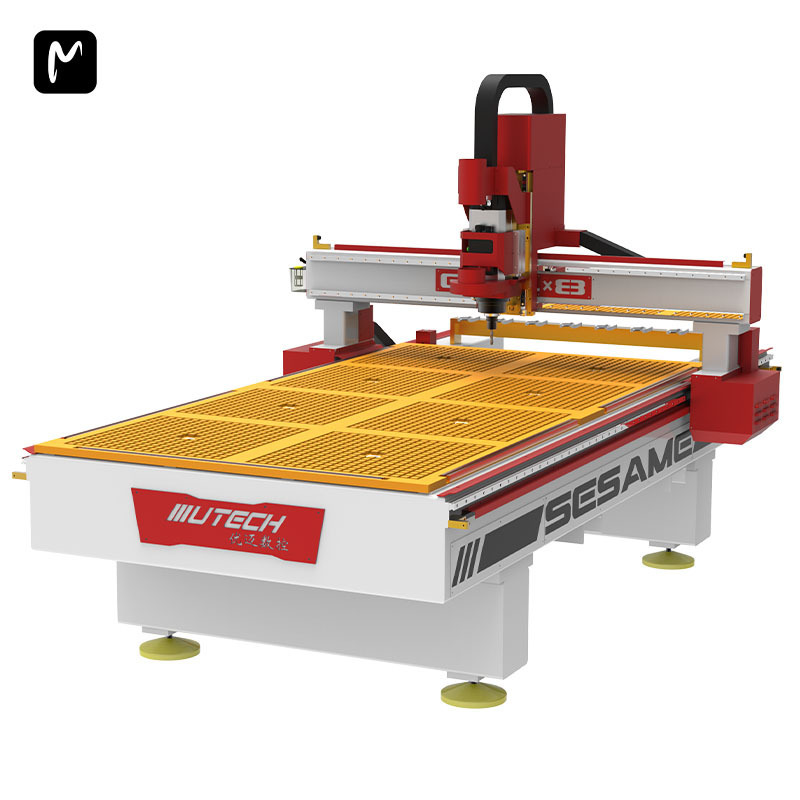

Hot sale 1325 1224 1212 atc cnc router wood engraving woodworking acrylic milling machine automatic tool changer with rotary
Product Description
1. UTECH ATC CNC Router compared with other engraving and milling machines with the same configuration specifications, has a thicker mechanical structure, which makes it excellent in mechanical rigidity, stability, etc.
2. UTECH ATC CNC Router adopts industrial-grade electric spindle, and the transverse shear force is greatly improved, so that it can adapt to cutting schemes with different speed parameters
3. UTECH ATC CNC Router transmission structure adopts 1.5-mode large tooth pitch module, cooperate with the reducer structure to make the rated no-load speed reach 60m/min and the limit speed reach 80m/min under the premise of ensuring accuracy
4. UTECH ATC CNC Router is modularized as a whole. The whole machine plus all accessories are packaged with only a space close to 8m³, which greatly reduces logistics costs and assembly difficulty, and is fast and convenient to plug and play.
5. UTECH ATC CNC Router adopts industrial-grade offline cnc motion control system:
(1) USB read and write speed can reach 3MB/SUSB good compatibility, can be compatible with most of the U disk on the market with industrial USB interface dustproof and dropproof
(2) Frequently used functions are completed with one key, with fewer combined keys and mechanical buttons for a better experience
(3) The development of a new architecture, more secure, stable and fast, the system starts in 1 second, the control card has built-in storage, the parameters can be backed up to the control card, the updated system parameters will not be lost, and the stability of the new architecture system is better
(4) Large-capacity 4GB high-speed memory supports more files, and industrial-grade memory is more reliable
(5) Ultra-multiple I/O interfaces support users to DIY their own CNC!
Support boot interface customization
2. UTECH ATC CNC Router adopts industrial-grade electric spindle, and the transverse shear force is greatly improved, so that it can adapt to cutting schemes with different speed parameters
3. UTECH ATC CNC Router transmission structure adopts 1.5-mode large tooth pitch module, cooperate with the reducer structure to make the rated no-load speed reach 60m/min and the limit speed reach 80m/min under the premise of ensuring accuracy
4. UTECH ATC CNC Router is modularized as a whole. The whole machine plus all accessories are packaged with only a space close to 8m³, which greatly reduces logistics costs and assembly difficulty, and is fast and convenient to plug and play.
5. UTECH ATC CNC Router adopts industrial-grade offline cnc motion control system:
(1) USB read and write speed can reach 3MB/SUSB good compatibility, can be compatible with most of the U disk on the market with industrial USB interface dustproof and dropproof
(2) Frequently used functions are completed with one key, with fewer combined keys and mechanical buttons for a better experience
(3) The development of a new architecture, more secure, stable and fast, the system starts in 1 second, the control card has built-in storage, the parameters can be backed up to the control card, the updated system parameters will not be lost, and the stability of the new architecture system is better
(4) Large-capacity 4GB high-speed memory supports more files, and industrial-grade memory is more reliable
(5) Ultra-multiple I/O interfaces support users to DIY their own CNC!
Support boot interface customization
Support more M codes, users can write macro programs
Support clamp avoidance
Support single head, in-line tool change, multi-process, round carving, swing head, independent double head
Support advanced processing line number, breakpoint, breakpoint, mirror, repeat, array
Support processing at the nearest point
Support processing or pause to adjust the processing position
Support multiple languages
Support configuration of input and output point functions and IO numbers
Support laser safety barrier
Support clamp avoidance
Support single head, in-line tool change, multi-process, round carving, swing head, independent double head
Support advanced processing line number, breakpoint, breakpoint, mirror, repeat, array
Support processing at the nearest point
Support processing or pause to adjust the processing position
Support multiple languages
Support configuration of input and output point functions and IO numbers
Support laser safety barrier
Specification
|
Condition
|
New
|
|
Range of Spindle Speed(r.p.m)
|
12000rpm - 24000rpm
|
|
Positioning Accuracy (mm)
|
0.01mm
|
|
Number of Axes
|
3
|
|
No. of Spindles
|
Single
|
|
Working Table Size(mm)
|
1300×2500
|
|
Machine Type
|
CNC Router
|
|
Repeatability (X/Y/Z) (mm)
|
0.01mm
|
|
Spindle Motor Power(kW)
|
9
|
|
Reducer
|
Japan Xinbao 1:10 reducer
|
|
Brand Name
|
UTECH
|
|
Voltage
|
220v/380v
|
|
Dimension(L*W*H)
|
2950*1980*1750mm
|
|
Weight (KG)
|
1100
|
|
Product name
|
ATC cnc carving machine
|
|
Working area
|
1300*2500*200mm
|
|
Table Surface
|
Vacuum adsorption
|
|
Tool change
|
Linear tool (optional)
|
|
Control system
|
Xingduowei HC-203C
|
|
Spindle power
|
9kw air cooled spindle
|
|
Driving motor
|
750W JMC 7502 Servo
|
|
Z axis structure
|
PMI rail guide+T6 Z axis pieces
|
|
Inverter
|
9kw Best
|
|
Resolution
|
0.01mm
|
Application
Advertising industry:
Acrylic cutting, density board cutting, snowflake cutting, double color board carving, various advertising boards.
Furniture industry:
Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, all kinds of composite sheet cutting carving.
Plate processing industry:
Insulation board, plastic work piece, PCB board, anti-double board, epoxy resin, ABS, PP, PE and other carbon mixtures.
Crafts industry:
Artificial marble, PVC, wood, plexiglass, copper aluminum and so on.
Decoration industry:
The screen, wave plate, wood, artificial marble, organic board, decorative board, double color board and other.
