Quick Details
-
Product name:
-

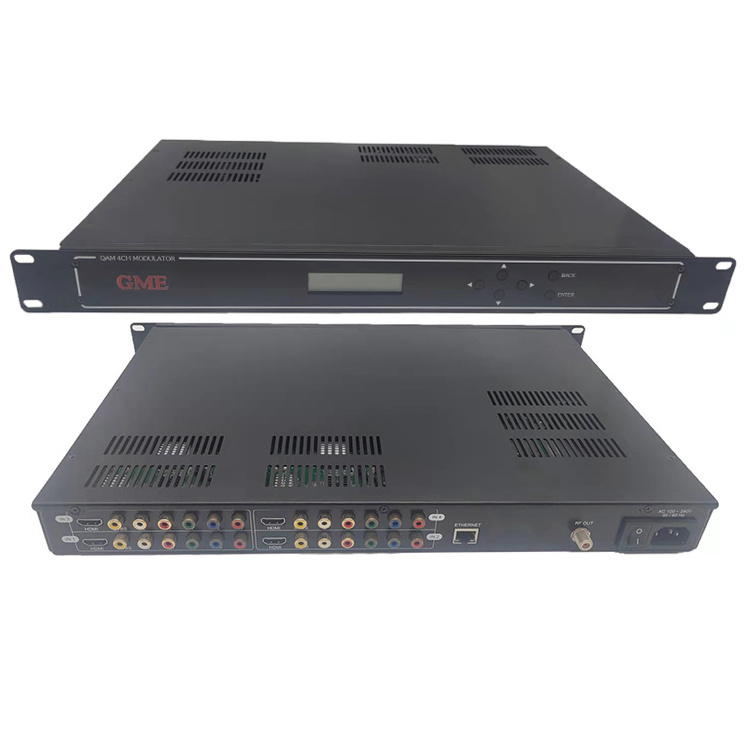

4CH HD QAM Modulator
-
Color:
-
Black
-
Key Word:
-
4CH HDMI Digital Modulator
-
Frequency Range:
-
177.5~858MHz
-
Output:
-
RF OUT
-
Language:
-
English
-
Support:
-
Support network remote operation
-
Input:
-
Ypbpr CVBS HDMI
-
Power SUpply:
-
AC100~240V
-
Support protocols:
-
European certification
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GME, OEM/ODM
-
Model Number:
-
GDM-009-3(GFTM-860Q)
-
Product name:
-
4CH HD QAM Modulator
-
Color:
-
Black
-
Key Word:
-
4CH HDMI Digital Modulator
-
Frequency Range:
-
177.5~858MHz
-
Output:
-
RF OUT
-
Language:
-
English
-
Support:
-
Support network remote operation
-
Input:
-
Ypbpr CVBS HDMI
-
Power SUpply:
-
AC100~240V
-
Support protocols:
-
European certification
Products Description
Specification
|
Place of Origin:Guangdong,China
|
|
|
|
|||
|
Model Number:GDM-009(GFTM-860Q)
|
|
|
|
|||
|
ITEM
|
TYPICAL
|
Q.C LIMIT
|
TEST CONDITIONS
|
|||
|
1. Encoding Section
|
|
|
|
|||
|
Video
|
|
|
|
|||
|
Encoding
|
H.264/MPEG-2
|
|
HD:H.264 AVC/HP@L4.0 SD:MPEG-2/MP@ML
|
|||
|
Bit Rate
|
|
256QAM:7.6Mbps
64QAM:4.8Mbps |
|
|||
|
Aaverage Encoding
|
|
256QAM:8Mbps
64QAM:5Mbps |
|
|||
|
Resolution
|
|
HD 1080p(HDMI IN)
SD 480i,576i |
|
|||
|
Audio
|
|
|
|
|||
|
Encoding
|
MPEG2/AAC
|
|
|
|||
|
Sample Rate
|
|
48KHz
|
|
|||
|
Bit Rate
|
|
384kbps
|
|
|||
|
2. Input
|
|
|
|
|||
|
Video Input
|
|
HDMI:1080p 25/30, 1080i 50/60 Max, YPbPr ( 1080i,720P,576i/P,480i/P),
CVBS: NTSC, PAL |
|
|||
|
Y Input Level
|
1Vp-p
|
1V±0.2Vp-p
|
|
|||
|
Pb/Pr Input Level
|
0.5Vp-p
|
0.5V±0.1Vp-p
|
|
|||
|
CVBS Input Level
|
1Vp-p
|
1V±0.2Vp-p
|
|
|||
|
Audio Input
|
|
R/L
|
|
|||
|
R Input Level
|
3Vp-p
|
3V±0.5Vp-p
|
|
|||
|
L Input Level
|
3Vp-p
|
3V±0.5Vp-p
|
|
|||
|
Input Connectors
|
|
Video (RCA) / Audio (RCA) /
HDMI |
|
|||
|
3. QAM Modulator
|
|
|
|
|||
|
Modulation Types
|
|
ITU-T J83 Annex B
|
|
|||
|
Cable Standard
|
|
STD
|
|
|||
|
QAM
|
|
64QAM, 256QAM
|
|
|||
|
MER
|
|
≥32dB
|
|
|||
|
RF Frequency
|
|
57 – 861MHz
|
|
|||
|
RF Output Level
|
100dBμV
|
100dBμV ±5dBμV
|
|
|||
|
RF Level Adj
|
|
0dB ~ -36dB
|
|
|||
|
Attenuation step
|
|
2dB per step
|
|
|||
|
4. System
|
|
|
|
|||
|
Local Interface
|
LCD + control buttons
|
|
|
|||
|
Remote management
|
|
Web Management
|
|
|||
|
Ethernet port
|
|
RJ45,100M
|
|
|||
|
5. General
|
|
|
|
|||
|
Power supply
|
|
AC Input:100V ~240V 50/60Hz
|
|
|||
|
Operation Temperature
|
|
0°C - 50°C
|
|
|||
|
Relative Humidity
|
|
20% ~ 80%
|
|
|||
|
Dimensions
|
|
19” x 12.5” x 1.75”
|
|
|||
|
Weight
|
|
2.8Kg
|
|
|||
