Quick Details
-
Material:
-
water based PU
-
Application:
-
Playground
-
Color:
-
red, green, blue or customized
-
Certificate:
-
IAAF, CE
-
Thickness:
-
13 mm
-
Wear resistance:
-
Outstanding
-
Useful life:
-
more than 10 years
-
Subbase:
-
concrete or asphalt
-
Shock absorption:
-
42 %
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JRACE
-
Model Number:
-
JR-SP
-
Material:
-
water based PU
-
Application:
-
Playground
-
Color:
-
red, green, blue or customized
-
Certificate:
-
IAAF, CE
-
Thickness:
-
13 mm
-
Wear resistance:
-
Outstanding
-
Useful life:
-
more than 10 years
-
Subbase:
-
concrete or asphalt
-
Shock absorption:
-
42 %
IAAF Approved PU Synthetic Flooring ECO-friendly Synthetic Running Track Tartan Track Rubber Flooring
JRACE-Carbon Structure water-based running track material is a health running track material, use water-based resin material as binder.
With excellent ageing resistance and ultraviolet resistance due to the stable carbon structure.
It ’ s non-toxic , odourless and green product, with superior physical properties.
Product Advantage
1. Waterborne system, free of heavy metals, very less VOC
2. It ’ s non-toxic , odourless, no irritating smell during construction
3. A variety of bright colors for your choice, high color retention and good weather resistance
4. Diffuse reflection design, reduce glare and protect eyes.
5. Soft and elastic surface can prevent sports injury
6. Seldom static electricity, easy to clean

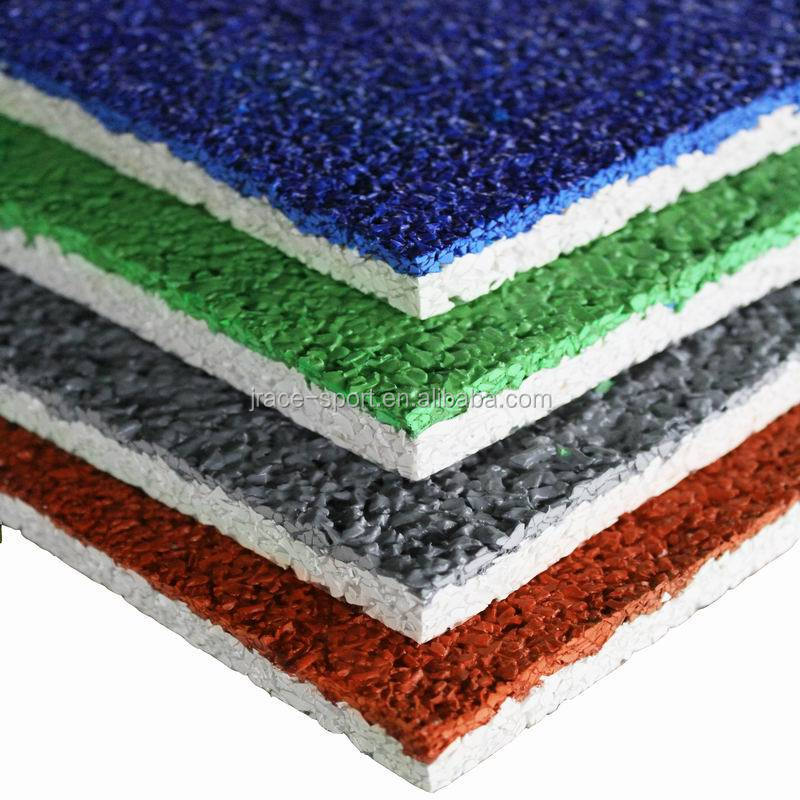

Product Sturture
|
Structure Specification |
Water-based running track (permeable) |
|
Primer layer |
105# glue |
|
Elastic layer |
105# glue + epdm granule |
|
Top coat |
Water-based top coat + epdm granule |
Technical Data
|
No. |
Test Item |
National standard |
Testing data |
|
|
1 |
|
30-50 % |
42 % |
|
|
2 |
vertical deformation |
0.6-2.5 mm |
2.2 mm |
|
|
3 |
skip resistance( BPN , 20℃ ) |
≥ 47 |
51 |
|
|
4 |
Tensile Strength |
≥ 0.4 MPa |
0.45 Mpa |
|
|
5 |
Elongation at Break |
≥ 40 % |
68 % |
|
|
6 |
Flame Retardance |
Level I Burning diameter ≤ 50 mm |
Level I |
|
|
7 |
Benzene |
≤ 0.05 g / kg |
Not detected |
|
|
8 |
Toluene and Xylene |
≤ 0.05 g / kg |
Not detected |
|
|
9 |
TDI |
≤ 0.2 g / kg |
Not detected |
|
|
10 |
heavy metals |
Pb |
≤ 90 mg / kg |
Not detected |
|
Cd |
≤ 10 mg / kg |
Not detected |
||
|
Cr |
≤ 10 mg / kg |
Not detected |
||
|
Hg |
≤ 2 mg / kg |
Not detected |
||
About Us
JRace produces the highest-performance running track materials since 2007.
The main products include:PU running tracks,SPU and Acrylic sports field materials.
JRace has two factories, 8000 square meters in Guangzhou and 40000 square meters in Qingyuan. Equipped with advanced production line, the a nnual production capacity reach 43800 Tons .
