Quick Details
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
1000*1000*2000 mm
-
Warranty:
-
1 Year
-
Certification:
-
ISO9001
-
Power:
-
3Kw
-
Weight:
-
1000kg
-
Max Current:
-
40 A
-
Pump:
-
Air drive pump
-
Spindle turning speed:
-
0-500 rpm
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
MODIIS
-
Model Number:
-
MDS-340A
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
1000*1000*2000 mm
-
Warranty:
-
1 Year
-
Certification:
-
ISO9001
-
Power:
-
3Kw
-
Weight:
-
1000kg
-
Max Current:
-
40 A
-
Pump:
-
Air drive pump
-
Spindle turning speed:
-
0-500 rpm

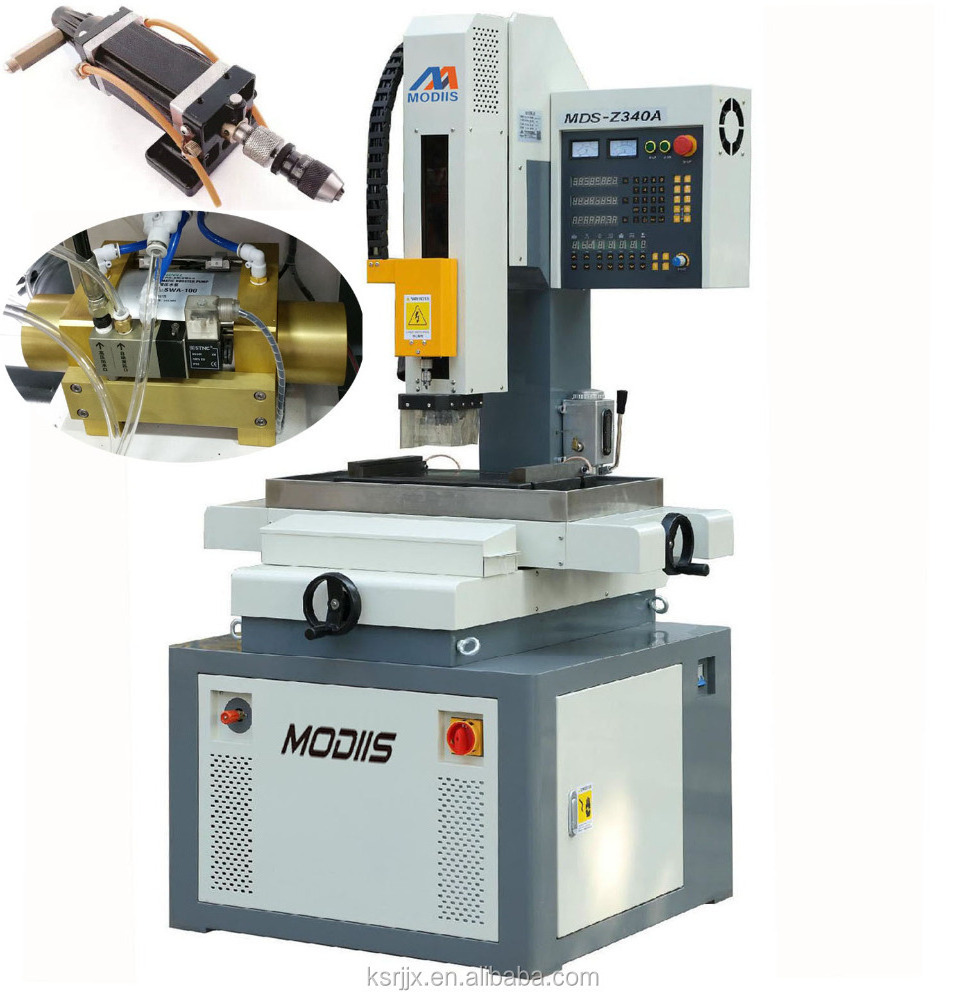

EDM Small Hole Drilling Machine MS-DZ340A
|
Electrode diameter |
0. 2 --- 3.0 mm |
|
Max Drilling Speed |
100mm/min |
|
Z1 axis travel |
25 0mm |
|
Z2 axis travel( Servo Motor Travel ) |
370 mm |
|
Rotation speed of rotary head |
20~120rpm |
|
Working table size |
400 × 70 0 mm |
|
Working table travel |
400 ×3 0 0 mm |
|
Max. distance between guide and working table |
320 mm |
|
Height of working table above the ground |
90 0mm |
|
Max. processing current |
30A |
|
Max. power consumption |
3.0 KVA |
|
Power supply |
380V/50HZ |
|
Filter Type |
Shallow Seam Type |
|
Max working solution pressure |
8 ( Mpa ) |
|
Max table load |
250 kg |
|
Method of working fluid filter |
Thread gap |
|
Controller type |
Automatic Z axis |
|
Capacity of working fluid tank |
30L |
|
Machine size |
1000 × 1000 × 2000 mm |
|
Digital Display |
D R O for X,Y,Z-axis |
|
Machine weight |
700 kg |
