- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
UShineray
-
Model Number:
-
YXR-FL-150W-H
-
Color Temperature(CCT):
-
2700-6500K, 2700-6500K Optional
-
Beam Angle(°):
-
30°/60°/90°/120°
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC100-277V AC100-305V
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 60
-
Product Weight（kg）:
-
4.8
-
LED Driver:
-
Meanwell
-
Power Factor:
-
0.95
-
Product Name:
-
Led Flood Light Outdoor
-
Material:
-
Aluminium Alloy + PC
-
Usage:
-
Indoor/Outdoor LED IP66 Floodlight
-
IP Grade:
-
IP 66
-
LED Chip:
-
SMD 3030 Chips
-
Driver:
-
Meanwell Driver/Normal
Quick Details
-
Lamp Luminous Flux(lm):
-
18000
-
Warranty(Year):
-
5-Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UShineray
-
Model Number:
-
YXR-FL-150W-H
-
Color Temperature(CCT):
-
2700-6500K, 2700-6500K Optional
-
Beam Angle(°):
-
30°/60°/90°/120°
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC100-277V AC100-305V
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 60
-
Product Weight（kg）:
-
4.8
-
LED Driver:
-
Meanwell
-
Power Factor:
-
0.95
-
Product Name:
-
Led Flood Light Outdoor
-
Material:
-
Aluminium Alloy + PC
-
Usage:
-
Indoor/Outdoor LED IP66 Floodlight
-
IP Grade:
-
IP 66
-
LED Chip:
-
SMD 3030 Chips
-
Driver:
-
Meanwell Driver/Normal
Product Description
Features:
1. Using imported LED chip, effectively improve the brightness of about 30%.
1. Using imported LED chip, effectively improve the brightness of about 30%.
2. Meanwell LED Drivers,AC100V~277V,PF>0.98,THD>15%.
3. 30°/60°/90°/120°beam angles and excellent uniformity.
4. 1070 pure aluminum stamping process,better heat dissipation, lighter weight,and effectively extend lifespan.
5.IP66 rating is applicable to outdoor environment.
6. Intelligent dimming system.0~10V,DMX and DALI dimming models are available.
7. Ultra-low luminous decay<10% in 5 years.Life span>50,000hrs.
4. 1070 pure aluminum stamping process,better heat dissipation, lighter weight,and effectively extend lifespan.
5.IP66 rating is applicable to outdoor environment.
6. Intelligent dimming system.0~10V,DMX and DALI dimming models are available.
7. Ultra-low luminous decay<10% in 5 years.Life span>50,000hrs.

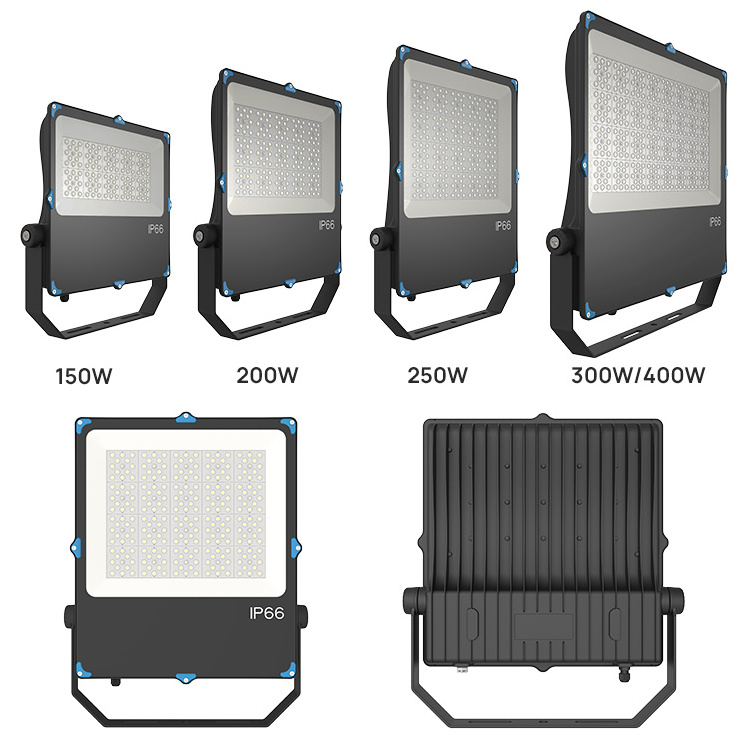

Product Paramenters
|
Model H
YXR-FL-
|
30W-H
|
50W-H
|
100W-H
|
150W-H
|
200W-H
|
250W-H
|
300W-H
|
400W-H
|
||||||||
|
Power
|
30W
|
50W
|
100W
|
150W
|
200W
|
250W
|
300W
|
400W
|
||||||||
|
Lumens(lm)
|
4200
|
7000
|
14000
|
21000
|
28000
|
35000
|
42000
|
56000
|
||||||||
|
Efficacy
|
140lm/W
|
|
|
|
|
|
|
|
||||||||
|
CCT
|
2700-6500K
|
|
|
|
|
|
|
|
||||||||
|
CRI
|
≥80Ra
|
|
|
|
|
|
|
|
||||||||
|
LED
|
San'an/Lumileds/Osram SMD 3030
|
|
|
|
|
|
|
|
||||||||
|
PF
|
>0.97
|
|
|
|
|
|
|
|
||||||||
|
Input
Voltage |
AC100-277V(Normal); AC100-305V(Meanwell)
|
|
|
|
|
|
|
|
||||||||
|
Weight(kg)
|
1.3
|
1.7
|
2.8
|
4.8
|
5.4
|
6.2
|
9.8
|
10.2
|
||||||||
|
Sizes(mm)
|
242*169*51
|
283*220*52
|
369*278* 52
|
394*395* 57
|
445*392* 57
|
497*392* 59
|
524*545* 65
|
524*545* 65
|
||||||||
|
Beam Angle
|
30°/60°/90°/120°
|
|
|
|
|
|
|
|
||||||||
|
Work Temp
|
-35~55℃
|
|
|
|
|
|
|
|
||||||||
|
Humidity
|
15%~90% RH, no condensing
|
|
|
|
|
|
|
|
||||||||
|
Finish
|
Sprayed with outdoor special powder
|
|
|
|
|
|
|
|
||||||||
|
Life Span
|
≥50000 hours
|
|
|
|
|
|
|
|
||||||||
|
IP Grade
|
IP66
|
|
|
|
|
|
|
|
||||||||
|
IK Grade
|
IK08
|
|
|
|
|
|
|
|
||||||||
|
Product Material
|
|
|
|
|
|
|
|
|
||||||||
|
Power Wire
|
|
|
Body material
|
|
|
Electronic safety grade
|
|
|
||||||||
|
Rubber cable(3*1mm²) L=0.5m
|
|
|
PC lens + Aluminum housing
|
|
550
|
Class I
|
|
|
||||||||
Related Products
Detailed Images
Installation Instructions
Applications
Company Introduction
Shenzhen YongXinRui Lighting Technology Co., Ltd,
estalished in 2010, we are a manufacturing and trading combo, specialized in Outdoor LED Lighting: LED Stadium Lights, LED Flood Lights, LED Street Lights and Tunnel Lights etc. Our main markets are in Europe, South America, Southeast Asia, Oceania, and also we exported to North America and some Middle East countries; all of our LED lights are with CE, RoHS, and some of them are with ETL, DLC, TUV etc.
YongXinRui Lighting is committed to R&D and promoting of semiconductor lighting products and has accumulated a wealth of experience. We provide high-quality products, excellent pre-sales and after-sales service to customers.
Mutual benefit and common development is our aim. We sincerely look forward to cooperate with more customers in the world.
Provided service from Yongxinrui:
OEM/ODM(Lighting product design)
Providing LED energy saving program
Free lighting consultation
Lighting and circuitry design
DIALux caculation and visualization
Auto CAD layout
OEM/ODM(Lighting product design)
Providing LED energy saving program
Free lighting consultation
Lighting and circuitry design
DIALux caculation and visualization
Auto CAD layout
Combined with your on-site project needs, we will wholeheartedly provide you with professional and detailed light distribution advice and light simulation solutions.
FAQ
Q1. Are you a manufacturer?
Yes, we have our own factory with over 10 years of R&D and manufacturing experience based on ISO quality management since 2011.
Q2. Do you have any MOQ limit for led light orders?
No MOQ, 1pc for sample checking is available.
Q3. Can I get a lower price for large quantity order?
Yes, please check with our sales staff for the details.
Q4. How about the lead time of the LED Stadium Lights?
Our standard lead time for samples is 3-5 days, and the normal bulk order lead time is 7-10 days, for the large bulk order lead time, please check with our sales team.
Q5. Can you provide OEM and ODM services?
OEM and ODM services can be provided, we can provide the services of customized design box and carton as well as laser print logo on the lamp fixture, besides, our engineer can design the lighting products according to your idea.
Q6. What are the payment terms of your formal order?
We accept payment via TT, Alibaba Trade Insurance payment, Paypal, and Western Union, and we offer Ex-works, FOB, CIF price terms.
Q7. How to deal with the defective?
All of our products are produced in a strict quality control system, the defective rate is less than 0.2% according to our shipment records. We offer 3- 5 years warranty for this product, if there is any defective during the warranty, please provide a picture or video of the working situation of the defective lights, we will ship the new lights to you within a few days or send them together with your next order.
Yes, we have our own factory with over 10 years of R&D and manufacturing experience based on ISO quality management since 2011.
Q2. Do you have any MOQ limit for led light orders?
No MOQ, 1pc for sample checking is available.
Q3. Can I get a lower price for large quantity order?
Yes, please check with our sales staff for the details.
Q4. How about the lead time of the LED Stadium Lights?
Our standard lead time for samples is 3-5 days, and the normal bulk order lead time is 7-10 days, for the large bulk order lead time, please check with our sales team.
Q5. Can you provide OEM and ODM services?
OEM and ODM services can be provided, we can provide the services of customized design box and carton as well as laser print logo on the lamp fixture, besides, our engineer can design the lighting products according to your idea.
Q6. What are the payment terms of your formal order?
We accept payment via TT, Alibaba Trade Insurance payment, Paypal, and Western Union, and we offer Ex-works, FOB, CIF price terms.
Q7. How to deal with the defective?
All of our products are produced in a strict quality control system, the defective rate is less than 0.2% according to our shipment records. We offer 3- 5 years warranty for this product, if there is any defective during the warranty, please provide a picture or video of the working situation of the defective lights, we will ship the new lights to you within a few days or send them together with your next order.
