1200V DC 4 Pole 3 Three Phase Solar DC Isolator Switch for PV Array

1200V DC 4 Pole 3 Three Phase Solar DC Isolator Switch for PV Array

FOB Reference Price: Get Latest Price

≥5 Pieces

US $16.8

≥100 Pieces

US $16.5

≥500 Pieces

US $15.6

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: OEM

Model Number:: ELR1 Series

Product name:: Isolator Switch Disconnector

Rated voltage:: 300V,600V,800V,1000V,1200V

Material:: PC + ABS

Max. Voltage:: 1200V

Max. Current:: 32A

Standard:: IEC/60947-3

Usage:: Power System

Pole:: 4poles

Color:: Grey

IP Rate:: IP66

Quick Details

Number of Pole:: 4

Rated Current:: 8-32A

Place of Origin:: Zhejiang, China

Brand Name:: OEM

Model Number:: ELR1 Series

Product name:: Isolator Switch Disconnector

Rated voltage:: 300V,600V,800V,1000V,1200V

Material:: PC + ABS

Max. Voltage:: 1200V

Max. Current:: 32A

Standard:: IEC/60947-3

Usage:: Power System

Pole:: 4poles

Color:: Grey

IP Rate:: IP66

Product Description

Application

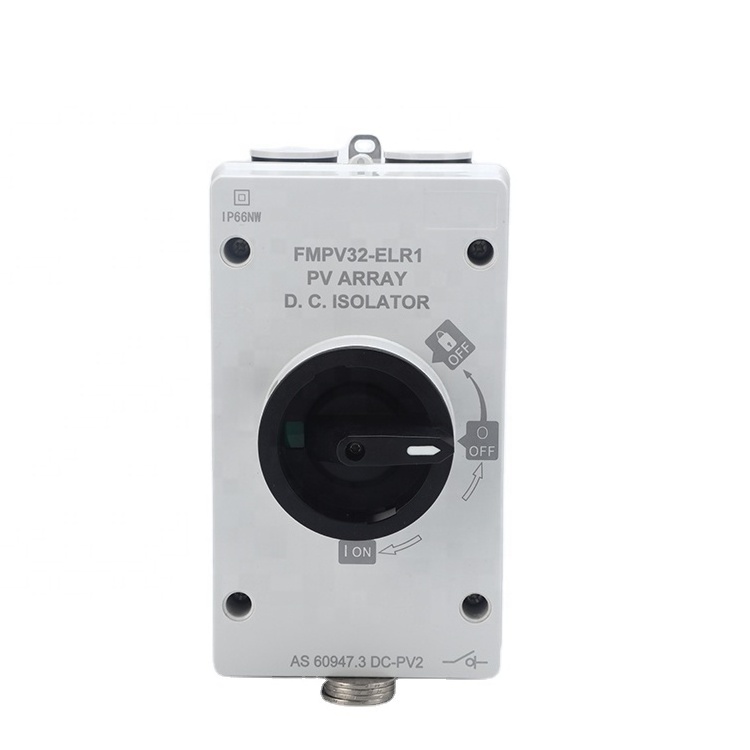

ELR1 Series DC Isolator Switch in plastic enclosure is applied to 1~20 KW residential or commercial photovoltaic system, placed between photovoltage modules and inverters. Arcing time is less than 8ms, that keeps solar system more safe. To ensure its stability and long service life, our products are made by components with optimum quality. Max voltage is up to 1200V DC. It holds a safe lead among similar products.
Feature
● IP66 rated enclosure, UV Resistant

● 2x mounting tabs,4 x M25 threaded holes ● The handle can be padlocked in the "OFF"position
● MC4 plugs with adaptor or cable gland can be selected for convenient connection and space saving
● IP66 Air valve helps air flowing and reducing temperature
● 2Pole,4 Poles are viable(Single I Double String)
● Standard:IEC60947-3,AS60947.3
● DC-PV2,DC-PV1,DC-21B
● 16A,25A,32A,1200VDC

Specification

Electrical Characteristics
Type	FMPV16-ELR1.FMPV25-ELR1.FMPV32-ELR1
Function	Isolator, Control
Standard	IEC60947-3.AS60947.3
Utilization category	DC-PV2/DC-PV1/DC-21B
Pole	4P
Rated frequency	DC
Rated operational voltage( U e )	300V,600V,800V,1000V,1200V
Rated operational voltage( I e )	See the next picture
Rated insulation voltage ( U i )	1200V
Conventional free air themal current ( I th )	//
Conventional enclosed thermal current( I the )	Same as Ie
Rated short-time withstand current( Icw )	1KA,1S
Rated impulsed withstand voltage( Uimp )	8.0KV
Overvoltage category	II
Suitability for isolation	Yes
Polarity	No polarity,”+”and”-“polarities could be interchanged.
Service life/cycle operation
Mechanical	18000
Electrical	2000
Installation Environment
Ingress protection丨Enclosure	IP66
Storge temperature	-40℃ ~+85℃
Mounting Type	Vertically or horizontally
Pollution degree	3
