- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ebasee
-
Model Number:
-
elr2
-
Max. Current:
-
32A
-
Product name:
-
DC Isolator
-
Model:
-
ELR2
-
Rated Current:
-
32A
-
Rated Voltage:
-
1000V
-
Rated insulation voltage:
-
1200V
-
Waterproof Levl:
-
IP66
-
Pole:
-
4P
-
Rated short-time withstand current(Icw):
-
1kA, 1s
-
Installation:
-
On symmetrical DIN-rail 35mm Panel mounting
-
Certification:
-
CE,IEC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
1200V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ebasee
-
Model Number:
-
elr2
-
Max. Current:
-
32A
-
Product name:
-
DC Isolator
-
Model:
-
ELR2
-
Rated Current:
-
32A
-
Rated Voltage:
-
1000V
-
Rated insulation voltage:
-
1200V
-
Waterproof Levl:
-
IP66
-
Pole:
-
4P
-
Rated short-time withstand current(Icw):
-
1kA, 1s
-
Installation:
-
On symmetrical DIN-rail 35mm Panel mounting
-
Certification:
-
CE,IEC
Products Description

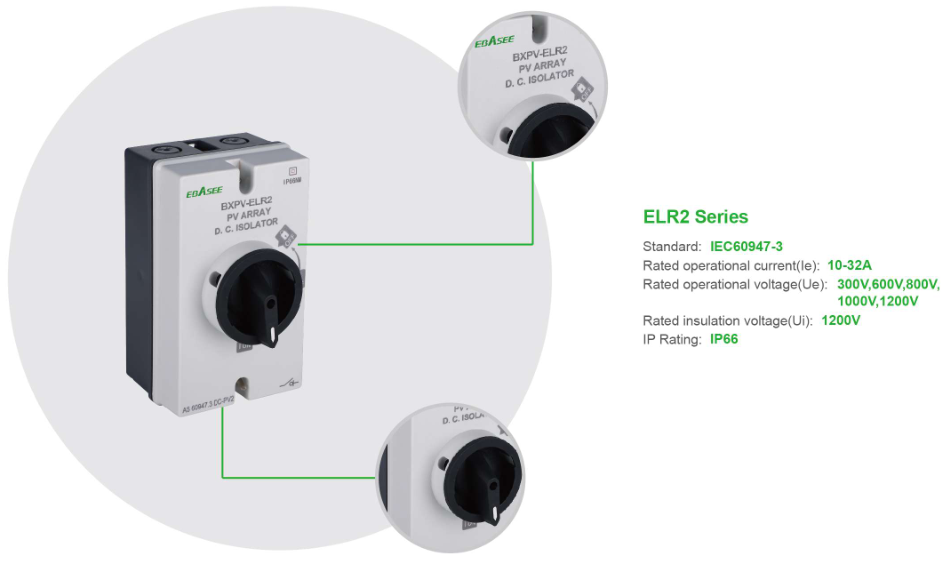

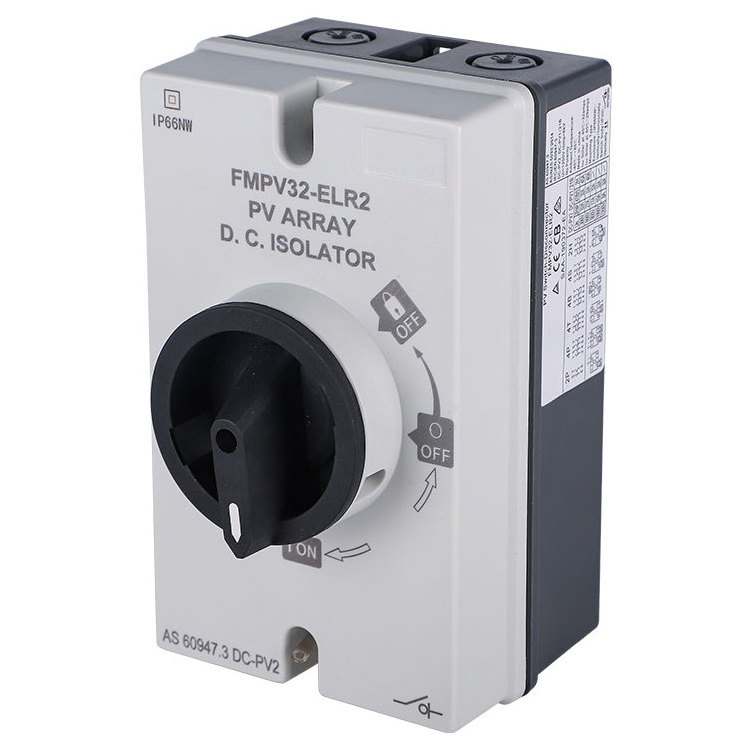

Introduction:
IP66
DC isolating switch
for solar system with CE SAA TUV IEC passed IEC authorized Lab IP66 waterproof testing.Also our company will take simulation tests irregularly,similar to customer's using environment , to make sure this product completely conforms to IP66 protection grade
|
Model name
|
BXPV-ELR1/ELR2
|
|
Standard
|
IEC60947-3; AS60947.3
|
|
Poles
|
4P
|
|
Utilization Catagory
|
DC-PV2/DC-PV1/DC-21B
|
|
Rated operational voltage Ue(V)
|
1000V
|
|
Rated insulation voltage Ue(V)
|
1000V DC
|
|
Rated short-time withstand current(Icw)
|
1kA, 1s
|
|
Installation
|
On symmetrical DIN-rail 35mm Panel mounting
|
