Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1270mm*900mm*2.5mm
-
Panel Efficiency:
-
20.9%
-
Product name:
-
MWT Flexible Balcony Solar Panles
-
Installation Module Dimension:
-
1270mm*900mm*2.5mm
-
Weight:
-
3.4kg
-
Back material:
-
Back Sheet(black)
-
Cell:
-
70(5X14)/Mono/166*83mm/223mm
-
Frame:
-
None
-
Junction box(protection degree):
-
IP68
-
Cable (length/cross-section area):
-
Customizable / 4mm2
-
Connector:
-
MC4 Compatible
Quick Details
-
Cell size:
-
166*83mm
-
Brand Name:
-
Sunport
-
Model Number:
-
QH70S(B)(H)
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1270mm*900mm*2.5mm
-
Panel Efficiency:
-
20.9%
-
Product name:
-
MWT Flexible Balcony Solar Panles
-
Installation Module Dimension:
-
1270mm*900mm*2.5mm
-
Weight:
-
3.4kg
-
Back material:
-
Back Sheet(black)
-
Cell:
-
70(5X14)/Mono/166*83mm/223mm
-
Frame:
-
None
-
Junction box(protection degree):
-
IP68
-
Cable (length/cross-section area):
-
Customizable / 4mm2
-
Connector:
-
MC4 Compatible
Specification
|
Electrical Characteristics at Standard Test Conditions(STC)
|
|
|
|
|||
|
Spec/Model
|
Unit
|
SPP200QH70S
|
SPP205QH70S
|
|||
|
Max-Power(Pm)
|
W
|
200
|
205
|
|||
|
Power Tolerance
|
W
|
0~+5
|
|
|||
|
Max-Power Voltage(Vm)
|
V
|
19.8
|
20
|
|||
|
Max-Power Current(lm)
|
A
|
10.11
|
10.25
|
|||
|
Open-Circuit Voltage(Voc)
|
V
|
23.9
|
24.1
|
|||
|
Short-Circuit Current(lsc)
|
A
|
10.65
|
10.81
|
|||
|
Module Efficiency(qm)
|
%
|
17.5
|
17.9
|
|||

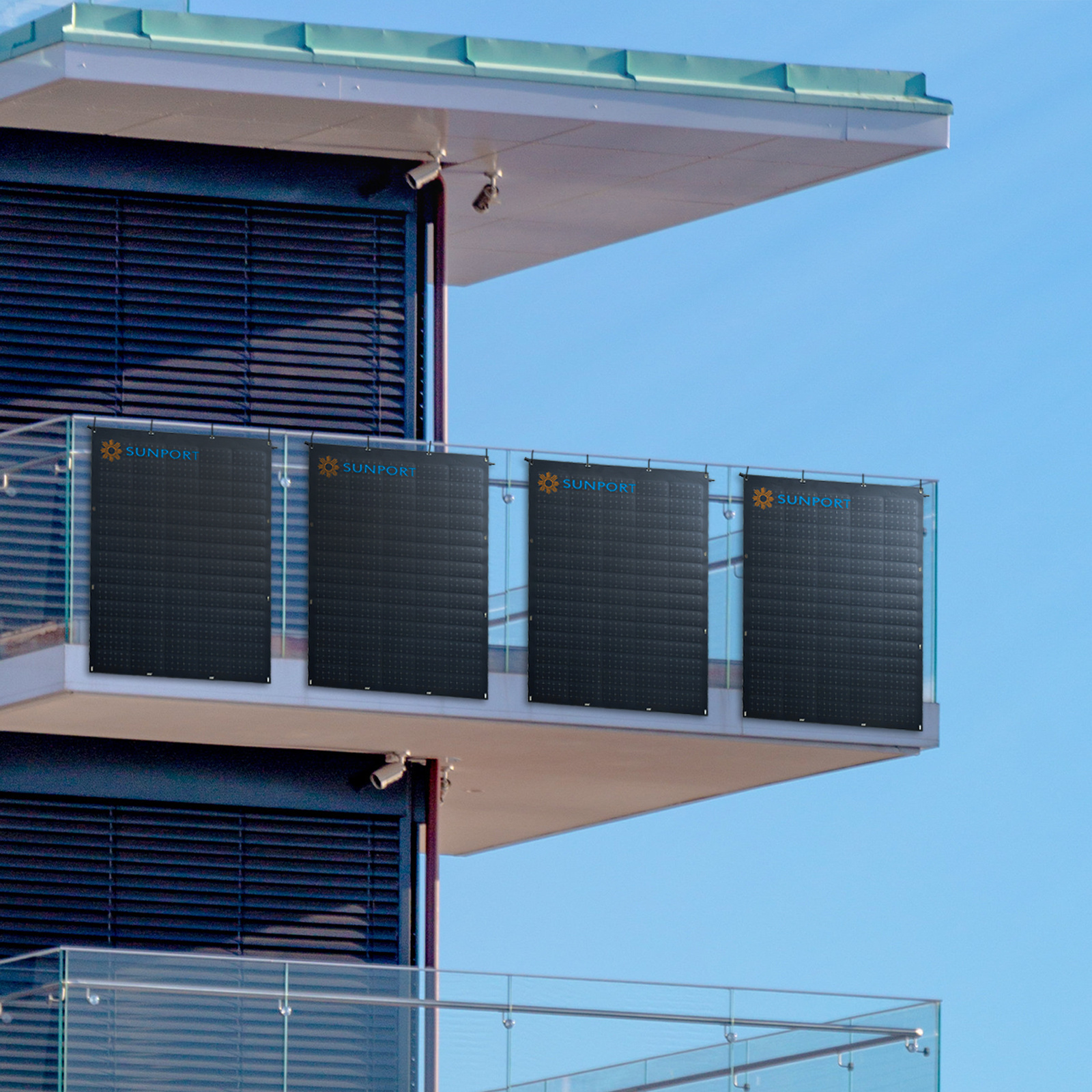

Application
Module Size
Technology Comparison
TECHNOLOGY COMPARISON
Compared with conventional module, MWT modules reduce 3% shaded area with no busbars. MWT module technology replaces string ribbon by conductive back sheet, abandoning strain, micro-crack and results power degradation, greatly improving stability and reliability.
— Structural Feature —
MWT
Positive and negative electrodes are both on the rear side of solar cell
Conventional
Positive and negative electrodes are located on opposite sides of the cell
— Cell Structure —
MWT
Busbar-free design exhibits higher power output by decreasing shading area up to 3 %
Conventional
Conventional design covers more cell surface from the main busbars, therefore the power output is limited
— Module Encapsulation —
Replace conventional soldering with conductive foil and 2D encapsulation structure
Conventional Cells connected by string ribbons
