Quick Details
-
Fork Length:
-
1250mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
6970*2430*2550mm
-
Weight (KG):
-
13500 kg
-
Engine:
-
Cummins engine
-
Load Capacity:
-
4000kg
-
Tire(Front):
-
Pneumatic 440/80-24
-
Product Name:
-

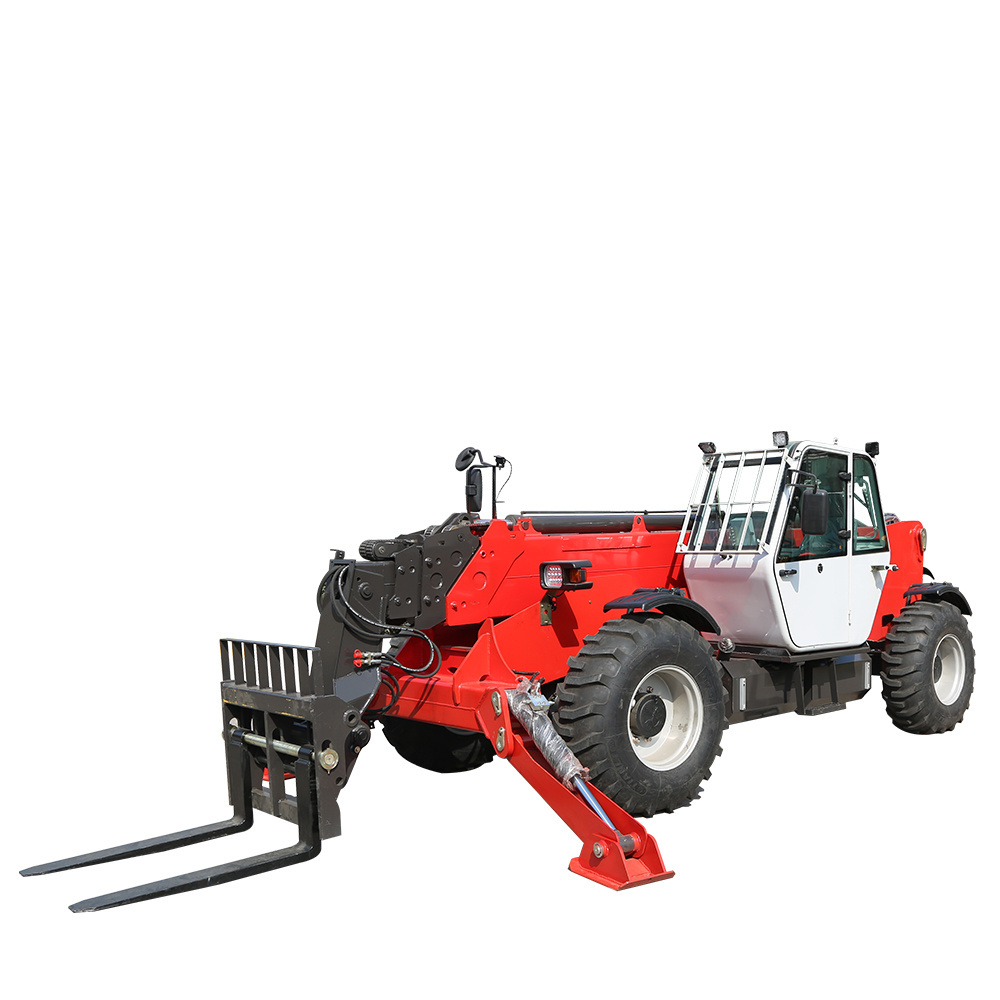

Tures telescopic handle pneumatic telescopic handler forklift
-
Driving method:
-
4x4x4
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
shandong
-
Brand Name:
-
Tures
-
Fork Length:
-
1250mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
6970*2430*2550mm
-
Weight (KG):
-
13500 kg
-
Engine:
-
Cummins engine
-
Load Capacity:
-
4000kg
-
Tire(Front):
-
Pneumatic 440/80-24
-
Product Name:
-
Tures telescopic handle pneumatic telescopic handler forklift
-
Driving method:
-
4x4x4
-
Marketing Type:
-
Ordinary Product
MAIN PRODUCTS
PRODUCT DESCRIPTION
TR1840
1. Flexibility. The telescopic forklift adopts four-wheel drive type, has three steering modes (front-wheel steering, four-wheel steering, and oblique travel), can work flexibly, quickly and accurately in a small space .
2. Versatility. Telehandlers are versatile and can work continuously for long periods of time. Choose from a range of quick-change attachments including forks, buckets, lattice arms, vertical masts and more.
3. Stability and security. Telehandler has long wheelbase, low center of gravity, stable outriggers can be installed at the front of the frame, and the boom has extension and lowering automatic locking functions.
|
Capacities
|
|
|
||
|
Max. capacity
|
Kg
|
4000
|
||
|
Max. lifting height
|
mm
|
17550
|
||
|
Max. Reach
|
mm
|
13080
|
||
|
Breakout force with bucket
|
KN
|
≥70
|
||
|
Weight and dimensions
|
|
|
||
|
Overall length to carriage
|
mm
|
6970
|
||
|
Overall width
|
mm
|
2430
|
||
|
Overall height
|
mm
|
2550
|
||
|
Ground clearance
|
mm
|
420
|
||
|
Total width(the leg whole open)
|
mm
|
3800
|
||
|
Wheelbase
|
mm
|
3670
|
||
|
External turning radius (over tyres)
|
mm
|
≤4500
|
||
|
Forks length / width / section
|
mm
|
1200 x 125 x 50
|
||
|
Tyres type
|
|
Pneumatic
|
||
|
Standard Tyres
|
/
|
440/80-24
|
||
|
Unladen weight (with forks)
|
kg
|
13500
|
||
|
Transmission
|
|
|
||
|
Steering method
|
/
|
2 wheels/4 wheels/crab wheels
|
||
|
Driving method
|
|
4x4x4
|
||
|
Transmission type
|
/
|
Torque Converter
|
||
|
Number of gears (forward / reverse)
|
/
|
4/4
|
||
|
Max.speed
|
km/h
|
30
|
||
|
Service brake
|
/
|
Oil-immersed multi-discs braking on front & rear axles
|
||
|
Parking brake
|
/
|
Automatic parking brake
|
||
|
Engine
|
|
|
||
|
Model
|
/
|
DF Cummins 4BT3.9-C100
|
||
|
Rated power
|
kw/r/min
|
74/2200
|
||
|
Transmission
|
/
|
Euro 2
|
||
|
Hydraulic
|
|
|
||
|
Hydraulic pump type
|
|
Gear pump
|
||
|
Hydraulic flow / Pressure
|
|
106 l/min / 270 Bar
|
||
|
Tank capacities
|
|
|
||
|
Engine oil
|
|
7.50 l
|
||
|
Hydraulic oil
|
|
135 l
|
||
|
Fuel tank
|
|
140 l
|
||
|
DEF tank capacity
|
|
21.60 l
|
||
|
Performance
|
|
|
||
|
Lifting
|
s
|
18
|
||
|
Lowering
|
|
13
|
||
|
Extension
|
|
17
|
||
|
Retraction
|
|
16
|
||
|
Crowd
|
|
5
|
||
|
Dump
|
|
4
|
||
|
Controls
|
/
|
JSM
|
||
ATTACHMENTS LIST
