Quick Details
-
Color:
-
Silver, Red, Green
-
Display:
-
LCD/LED Display
-
DC voltage:
-
12V/24V/48V
-
Overvoltage protection:
-
YES
-
Appplication:
-
Security / Monitoring / Alarm
-
Interface:
-
Terminal
-
Output waveform:
-
Pure Sine Wave
-
Spare parts supply:
-
2%
-
Warranty:
-
12 months
Quick Details
-
Output Current:
-
4.5A
-
Place of Origin:
-
Guangdong, China
-
Inverter type:
-
Low Freqnency Solar Inverter
-
Color:
-
Silver, Red, Green
-
Display:
-
LCD/LED Display
-
DC voltage:
-
12V/24V/48V
-
Overvoltage protection:
-
YES
-
Appplication:
-
Security / Monitoring / Alarm
-
Interface:
-
Terminal
-
Output waveform:
-
Pure Sine Wave
-
Spare parts supply:
-
2%
-
Warranty:
-
12 months

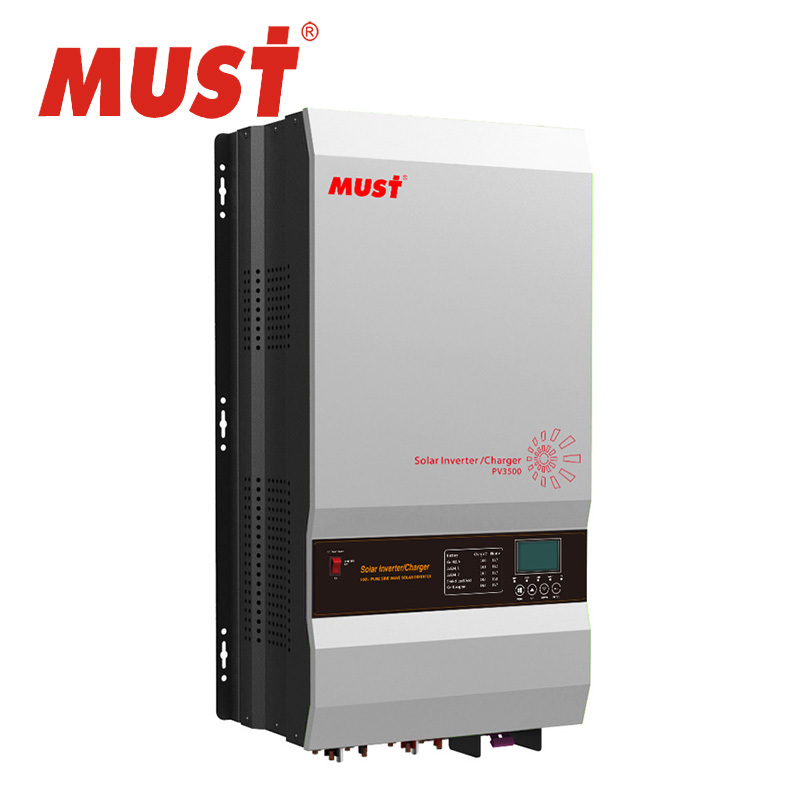

AGS BTS Inverter with Charger 12V 220V 4KW-12KW --- PV3500 Series
- Power range 1KW-12KW
- 12V/24V/48V DC input voltage
- Powerful Charge Rate Up to 100A
- Built-in pure copper transformer
- Pure sine wave output
- LED+LCD display
- MPPT solar charge controller 45A / 60A (120A Optional)
- MPPT efficiency max 98%
- 50/60HZ automatic sensing
- RS485 with free CD
- Battery priority function
- Automatically send signal to start generator
- DC Start & Automatic Self-Diagnostic Function
- High efficiency design & "Power Saving Mode" to conserve energy
Competitive Advantage
PV3500 is an advanced low frequency pure sine wave off-grid solar inverter with built-in MPPT charge controller.
Technical Specification
| MODEL | PV35-1K | PV35-2K | PV35-3K | PV35-4K | ||||||
| Default Battery System Voltage (VDC) | 12V | 24V | 12V | 24V | 12V | 24V | 24V | 48V | ||
| INVERTER OUTPUT | Rated Power | 1KW | 2KW | 3KW | 4KW | |||||
| Surge Rating (20ms) | 3KW | 6KW | 9KW | 12KW | ||||||
| Capable Of Starting Electric Motor | 1HP | 1HP | 1.5HP | 2HP | ||||||
| Waveform | Pure sine wave/ same as input (bypass mode) | |||||||||
| Nominal Output Voltage RMS | 100V/110V/120VAC 220V/230V/240VAC(+/-10% RMS) | |||||||||
| Output Frequency | 50Hz/60Hz +/-0.3 Hz | |||||||||
| Inverter Efficiency(Peak) | >88% | |||||||||
| Line Mode Efficiency | >95% | |||||||||
| Power Factor | 0.8 | |||||||||
| Typical Transfer Time | 10ms(max) | |||||||||
| AC INPUT | Voltage | 230VAC | ||||||||
| Selectable Voltage Range | 96~132VAC/155~280VAC(For Personal Computers) | |||||||||
| Frequency Range | 50Hz/60Hz (Auto sensing) 40-80Hz | |||||||||
| BATTERY | Minimum Start Voltage | 10.0VDC /10.5VDC for12VDC mode (*2 for 24VDC, *4 for 48VDC) | ||||||||
| Low Battery Alarm | 10.5VDC+/-0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||
| Low Battery Cutoff | 10.0VDC+/-0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||
| High Voltage Alarm | 16.0VDC+/-0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||
| High Battery Voltage Recover | 15.5VDC+/-0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||
| Idle Consumption-Search Mode | <25W when power saver on | |||||||||
| AC CHARGER | Output Voltage | Depends on battery type | ||||||||
| Charger AC Input Breaker Rating | 10A | 30A | 30A | 30A | ||||||
| Overcharge Protection S.D. | 15.7VDC for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||
| Maximum Charge Current | 45A | 25A | 70A | 35A | 90A | 50A | 65A | 40A | ||
| BTS | Continuous Output Power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature | ||||||||
|
BYPASS
& PROTECTION |
Input Voltage Waveform | Sine wave (grid or generator) | ||||||||
| Nominal Input Frequency | 50Hz or 60Hz | |||||||||
| Overload Protection (SMPS Load) | Circuit breaker | |||||||||
| Output Short Circuit Protection | Circuit breaker | |||||||||
| Bypass Breaker Rating | 10A | 15A | 20A | 40A | ||||||
| Max Bypass Current | 30Amp | 40Amp 80Amp | ||||||||
| SOLAR CHARGER | Maximum PV Charge Current | 45A | 60A | |||||||
| DC Voltage | 12V/24V atuo work | 24V/48V atuo work 48V | ||||||||
| Maximum PV Array Power | 600W | 1200W | 600W | 1200W | 600W | 1200W | 1600W | 3200W | ||
| MPPT Range @ Operating Voltage(VDC) | 16-100VDC for 12V mode,32-100V for 24V mode | 32-145VDC for 24V mode,64-147V for 48V mode | ||||||||
| Maximum PV Array Open Circuit Voltage | 100VDC | 147VDC | ||||||||
| Maximum Efficiency | >98% | |||||||||
| Standby Power Consumption | <2W | |||||||||
| MECHANICAL SPECIFICATIONS | Mounting | Wall mount | ||||||||
| Dimensions (W*H*D) | 493*311*215mm | 607*343*215mm | ||||||||
| Net Weight (Solar CHG) kg | 23.5 | 24.5 | 25.5 | 29.5 | ||||||
| Shipping Dimensions(W*H*D) | 580*400*325mm | 700*485*325mm | ||||||||
| Shipping Weight (Solar CHG) kg | 25.5 | 26.5 | 27.5 | 31.5 | ||||||
| OTHER | Operation Temperature Range | 0°C to 40°C | ||||||||
| Storage Temperature | -15°C to 60°C | |||||||||
| Audible Noise | 60dB MAX | |||||||||
| Display | LED+LCD | |||||||||
| Loading(20GP/40GP/40HQ) | 150pcs / 300pcs / 350pcs | |||||||||
| MODEL | PV35-5K | PV35-6K | PV35-8K | PV35-10K | PV35-12K | |||
| Default Battery System Voltage (VDC) | 24V | 48V | 24V | 48V | 48VDC | 48VDC | 48VDC | |
|
INVERTER
OUTPUT |
Rated Power | 5KW | 6KW | 8.0KW | 10.0KW | 12.0KW | ||
| Surge Rating (20ms) | 15.0KW | 18.0KW | 24.0KW | 30.0KW | 36.0KW | |||
| Capable Of Starting Electric Motor | 2HP | 3HP | 4HP | 5HP | 6HP | |||
| Waveform | Pure sine wave/ same as input (bypass mode) | |||||||
| Nominal Output Voltage RMS | 100V/110V/120VAC 220V/230V/240VAC(+/-10% RMS) | |||||||
| Output Frequency | 50Hz/60Hz +/-0.3 Hz | |||||||
| Inverter Efficiency(Peak) | >88% | |||||||
| Line Mode Efficiency | >95% | |||||||
| Power Factor | 0.8 | |||||||
| Typical Transfer Time | 10ms(max) | |||||||
| AC INPUT | Voltage | 230VAC | ||||||
| Selectable Voltage Range | 96~132VAC/155~280VAC(For Personal Computers) | |||||||
| Frequency Range | 50Hz/60Hz (Auto sensing) 40-80Hz | |||||||
| BATTERY | Minimum Start Voltage | 20.0VDC/21.0VDC for24VDC mode (40.0VDC/42.0VDC for 48VDC mode) | ||||||
| Low Battery Alarm | 21.0VDC+/-0.3V for 24VDC mode (42.0VDC+/-0.6V for 48VDC mode) | |||||||
| Low Battery Cutoff | 20.0VDC+/-0.3V for 24VDC mode (40.0VDC+/-0.6V for 48VDC mode) | |||||||
| High Voltage Alarm | 32.0VDC+/-0.3V for 24VDC mode (64.0VDC+/-0.6V for 48VDC mode) | |||||||
| High Battery Voltage Recover | 31.0VDC+/-0.3V for 24VDC mode (62.0VDC+/-0.6V for 48VDC mode) | |||||||
| Idle Consumption-Search Mode | <35W when power saver on | |||||||
| AC CHARGER | Output Voltage | Depends on battery type | ||||||
| Charger AC Input Breaker Rating | 30A | 30A | 40A | 50A | 63A | |||
| Overcharge Protection S.D. | 31.4VDC for 24VDC mode (62.8VDC for 48VDC mode ) | |||||||
| Maximum Charge Current | 65A | 35A | 65A | 40A | 70A | 80A | 100A | |
| BTS | Continuous Output Power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature | ||||||
|
BYPASS
& PROTECTION |
Input Voltage Waveform | Sine wave (grid or generator) | ||||||
| Nominal Input Frequency | 50Hz or 60Hz | |||||||
| Overload Protection (SMPS Load) | Circuit breaker | |||||||
| Output Short Circuit Protection | Circuit breaker | |||||||
| Bypass Breaker Rating | 40A | 80A | 80A | 80A | ||||
| Max Bypass Current | 40Amp 80Amp | 80Amp | ||||||
|
SOLAR
CHARGER |
Maximum PV Charge Current | 60A | 60A(120A Optional) | |||||
| DC Voltage | 24V/48V Auto work | 48VDC | ||||||
| Maximum PV Array Power | 1600W | 3200W | 1600W | 3200W | 3200W(6400W for 120A Optional) | |||
| MPPT Range @ Operating Voltage (VDC) |
32-145VDC for 24V mode,
64-147V for 48V mode |
64~147VDC | ||||||
| Maximum PV Array Open Circuit Voltage | 147VDC | |||||||
| Maximum Efficiency | >98% | |||||||
| Standby Power Consumption | <2W | |||||||
|
MECHANICAL
SPECIFICATIONS |
Mounting | Wall mount | ||||||
| Dimensions (W*H*D) | 607*343*215mm | 607*410*215mm | ||||||
| Net Weight (Solar CHG) kg | 38+2.5 | 48+2.5 | 69+2.5 | 75.75+2.5 | 75.75+2.5 | |||
| Shipping Dimensions(W*H*D) | 802*533*429.5mm | |||||||
| Shipping Weight (Solar CHG) kg | 40+2.5 | 50+2.5 | 89+2.5 | 95.5+2.5 | 95.5+2.5 | |||
| OTHER | Operation Temperature Range | 0°C to 40°C | ||||||
| Storage Temperature | -15°C to 60°C | |||||||
| Audible Noise | 60dB MAX | |||||||
| Display | LED+LCD | |||||||
| Loading(20GP/40GP/40HQ) | 140pcs / 280pcs / 320pcs | |||||||
AGS BTS Inverter with Charger 12V 220V 4KW-12KW --- PV3500 Series
1. Package
Carton Box for packaging or Wooden Box advised for Samples to protect in transportations. Package designed by Clients is welcomed.
2. Shipping
DHL, FEDEX, UPS, EMS, Air Way and By Sea.
3. Payment
T/T and Western Union
4. Sample orders
Welcome to place your Sample Order to test first.
AGS BTS Inverter with Charger 12V 220V 4KW-12KW --- PV3500 Series
Sample Orders are welcomed
Welcome to place your Sample Order to test first.
OEM Service Available
High-level OEM Experience: 6 Years
Warranty: 1 Year
Our product warranty is valid for 12 months after delivery. We undertake to repair any malfunctioned units due to defective components of inadequate workmanship, but excluding any defects resulting from improper use of the products.
Lead time:
a) Sample orders (1-2 pcs) will be delivered from our factory within 10 working days
b) Bulk orders will be delivered from our factory within 35 working days
After-sale Service
24-Hour Hot Line for Consultancy and Technical Support
