The PVC Fiber Reinforced Flexible Pipe, also referred to grid pipe or snake skin pipe, is widely used to convey the middle pressure or corrosive gas and liquid.
Now it is widely used in such fields as mechanical engineering, coal min, petroleum, chemical industry, agriculture irrigation and civil applications (solar water heater or gas-canisters).
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
sevenstars
-
Voltage:
-
380V 50HZ 3phase or customized
-
Power (kW):
-
55
-
Weight:
-
3500 KG
-
After-sales Service Provided:
-
One year warranty period and permanent technical services
-
Name:
-
PVC pipe extrusion line
-
Raw material:
-
PVC particle
-
Usage:
-
pipe extrusion
-
Motor brand:
-
Beide Siemens
-
Final product:
-
pvc pipe
-
Automatic Grade:
-
Automatic Controll
-
Keywords:
-
PVC Pipe Extruder Line
-
Capacity:
-
180-700kg/h
-
Inverter:
-
ABB Brand
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
30:1
-
Screw Speed (rpm):
-
40 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
sevenstars
-
Voltage:
-
380V 50HZ 3phase or customized
-
Power (kW):
-
55
-
Weight:
-
3500 KG
-
After-sales Service Provided:
-
One year warranty period and permanent technical services
-
Name:
-
PVC pipe extrusion line
-
Raw material:
-
PVC particle
-
Usage:
-
pipe extrusion
-
Motor brand:
-
Beide Siemens
-
Final product:
-
pvc pipe
-
Automatic Grade:
-
Automatic Controll
-
Keywords:
-
PVC Pipe Extruder Line
-
Capacity:
-
180-700kg/h
-
Inverter:
-
ABB Brand
Production line description
Application:
Features:
1.The PVC pipe making machine is suitable for the production of 20-63mm PVC conduit pipes .
2.The main raw materials for the production of PVC pipes are PVC resin, calcium powder and additives.
3.The PVC pipe manufacturing machine is a conical twin-screw extruder for PVC powder raw materials.
4.The PVC pipe extrusion machine is a dual-pipe output that maximizes the performance of the machine.
5.We also have other PVC pipe diameter machines.
PVC single cavity production line
PVC / CPVC / UPVC pipe extrusion production machine line

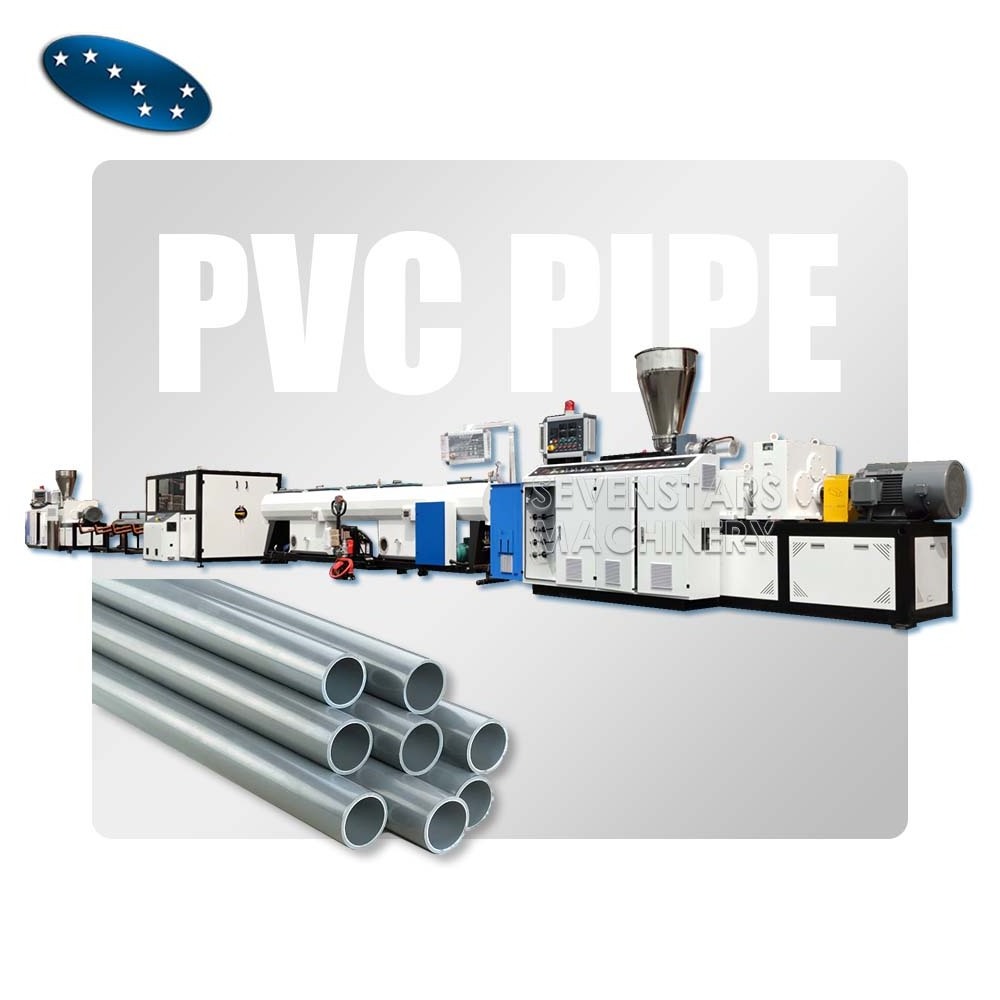

Φ20-Φ630 series PVC pipe extrusion machine line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industries such as agricultural and constructional plumbing,cable laying etc. This line is composed of conical twin screw extruder, Vacuum calibration tank,haul off,motors,cutter and stacker etc. The extruder and haul off methods are two-claw,three-claw four-claw,six-claw,eight-claw,ten-claw,twelve claw etc. You may choose saw blade cutting type or planetary cutting type. It is aditionaly attached with length counter and intensifying device. This line with reliable performance and high production eficiency. Our company can also manufacture special pipe production lines,e.g. spiral silencing pipe and core foaming pipe according to your requirements.
PVC double-pipe production line
The production line is developed with the advanced technology of west Europe by our company. The main machine is SJSZ55/120 or SJSZ65/132 conical twin screw extruder is equipped with double-tube single control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cuting machine are combined with the front double calibration technology to make operation more flexible let you enjoy economic benefit which is brought by separate-control double tube extruding.
PVC four cavity production line
Four cavity PVC electrical tube,water supply pipeextrusion line can extruder four pipes at same time on one machine.This line can save investment cost in factory buiding and production,which increase the capacity a lot and reduce production time.SJSZ65 conical twin-screw extruder can easily reach 5.5-6.5 ton/per day,the production speed take 16mm as example can get more than 8-10m/min.The whole line is composed of conical twin-screw extruder 65mm,4 cavity mould,4 cavity coling calibration tank,4 station haul off,4 station cutter and 4 station tipping table.
Product parameters
|
Model
|
Pipe range(mm)
|
Extruder
|
Max.Output(kg/h)
|
Max.Speed(m/min)
|
Total power
|
Line length
|
|
PVC-110
|
50-110
|
SJSZ55/120
|
180
|
10
|
70KW
|
24m
|
|
PVC-160
|
63-160
|
SJSZ65/132
|
300
|
5
|
90KW
|
24m
|
|
PVC-250
|
110-250
|
SJSZ80/156
|
400
|
3.5
|
120KW
|
28m
|
|
PVC-315
|
160-315
|
SJSZ80/156
|
400
|
3
|
160KW
|
28m
|
|
PVC-450
|
250-450
|
SJSZ92/188
|
700
|
1.5
|
200KW
|
36m
|
|
PVC-630
|
315-630
|
SJSZ92/188
|
700
|
0.9
|
230KW
|
36m
|
If you want more sizes, please contact us for details
