Quick Details
-
Spindle Taper:
-
MT2
-
Range of Spindle Speed(r.p.m):
-
50 - 2250 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JSBESTECH
-
Model Number:
-
BT20V
-
Weight (KG):
-
110
-
Marketing Type:
-
New Product 2023
-
Max. drilling capacity:
-
20mm
-
Max end milling capacity:
-
16 mm
-
Max. face milling capacity:
-
63 mm
-
Table size:
-
500/700*180mm
-
Table travel (X,Y,Z):
-
280/480*175mm
-
t-slot:
-
3*12mm
-
Spindle stroke:
-
50mm
-
Distance from spindle nose to table:
-
380mm
-
Step of spindle speeds:
-
Variable speed
Quick Details
-
Table Travel (X) (mm):
-
280
-
Table Travel (Y) (mm):
-
175
-
Table Travel (Z) (mm):
-
0
-
Spindle Taper:
-
MT2
-
Range of Spindle Speed(r.p.m):
-
50 - 2250 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JSBESTECH
-
Model Number:
-
BT20V
-
Weight (KG):
-
110
-
Marketing Type:
-
New Product 2023
-
Max. drilling capacity:
-
20mm
-
Max end milling capacity:
-
16 mm
-
Max. face milling capacity:
-
63 mm
-
Table size:
-
500/700*180mm
-
Table travel (X,Y,Z):
-
280/480*175mm
-
t-slot:
-
3*12mm
-
Spindle stroke:
-
50mm
-
Distance from spindle nose to table:
-
380mm
-
Step of spindle speeds:
-
Variable speed
|

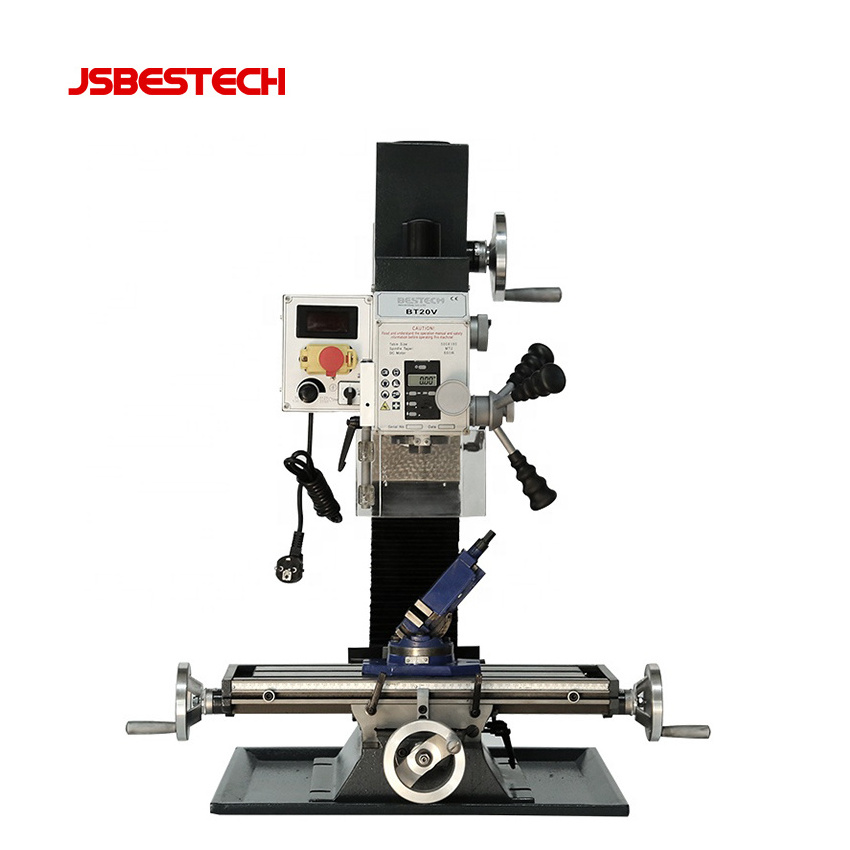

BT20V Drilling Milling Machine Technical Date
|
|
|
||
|
Drilling Milling Head
|
Max. Drilling capacity
|
20mm
|
||
|
|
Face mill capacity
|
63mm
|
||
|
|
End mill capacity
|
16mm
|
||
|
|
Spindle Stroke
|
50mm
|
||
|
|
Max. Distance From Spindle Face To Table
|
270mm
|
||
|
|
Distance Between Spindle And Colum
|
175mm
|
||
|
|
Head Tilt Left And Right
|
±45°
|
||
|
|
Spindle Taper
|
MT2
|
||
|
|
Spindle Speed Range
|
20-2250 r.p.m.
|
||
|
|
Number Of Speeds
|
Variable Speed
|
||
|
|
Motor Power
|
750W
|
||
|
Working Table
|
Working Table Size
|
500mm*180mm/700mm*180mm(Optional)
|
||
|
|
Working Table Travel
|
280mm*175mm/480mm*175mm(Optional)
|
||
|
|
T-Slot Size
|
12mm
|
||
Jiangsu Bestech Industrial Co, Ltd. is a professional machine tool supplier with 15 years experience.We are concentrated in
machine tools for industrial and homework use. Currently our major products include Bench Lathes (manual and CNC), Drilling
Machine, Milling Machine, Grinding Machine, Saw Machine, Bench Grinder and related accessories and tools, etc.
machine tools for industrial and homework use. Currently our major products include Bench Lathes (manual and CNC), Drilling
Machine, Milling Machine, Grinding Machine, Saw Machine, Bench Grinder and related accessories and tools, etc.
