Quick Details
-
Alloy:
-
8011/1235/8079
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZHONGXIN
-
Model Number:
-
ZX-1235 8011 8079
-
Certification:
-
ISO9001
-
Width:
-
50mm-1250mm
-
Core ID:
-
76mm,152mm with alu core
-
Coil weight:
-
100kg-400kg, or customized
-
Trade terms:
-
FOB,CNF,CFR,CIF...
-
MOQ:
-
1 tons
-
Samples:
-
free charge for you
-
Package:
-
Wooden packages
-
Product Keywords:
-
aluminum hydrophilic gold foil
Quick Details
-
Use:
-
bliste,package,food container,household foil,duct,pharmaceutical...
-
Type:
-
Roll
-
Thickness:
-
0.07mm-0.2mm
-
Alloy:
-
8011/1235/8079
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZHONGXIN
-
Model Number:
-
ZX-1235 8011 8079
-
Certification:
-
ISO9001
-
Width:
-
50mm-1250mm
-
Core ID:
-
76mm,152mm with alu core
-
Coil weight:
-
100kg-400kg, or customized
-
Trade terms:
-
FOB,CNF,CFR,CIF...
-
MOQ:
-
1 tons
-
Samples:
-
free charge for you
-
Package:
-
Wooden packages
-
Product Keywords:
-
aluminum hydrophilic gold foil

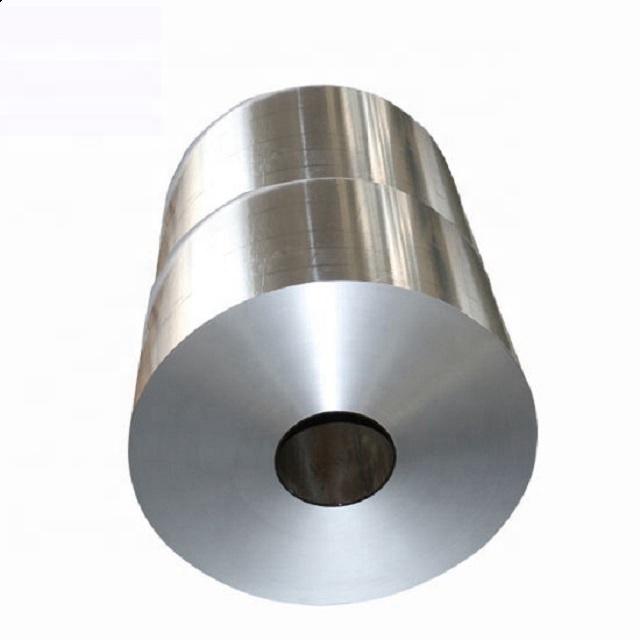

0.065 - 0.1mm Packing Aluminum Foils 8011 1235 In Jumbo Roll For Food Tray
Aluminum foil have many special characteristic:rich polish, light weight, anti-damp, anti-pollute and is the well transmit electricity body. It been used vastly the shield layer of the food vessel, electron , material equipment and communication cable. Aluminum foil can be used in packing of the cigarette , physic , grocery industry and so on after it complex with the other materials.
Aluminum foil,foil stock is mainly made from alloy 1030, 3102, and 8011. Aluminum Fin Stock is mainly used to manufacture the fins production of heat exchanger such as air conditioner, evaporator and no frost evaporator.
| Alu. alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | Al |
| 8011 | 0.5-0.9 | 0.6-1.0 | 0.10 | 0.20 | 0.05 | 0.05 | -- | 0.10 | 0.08 | -- | Remain |
| 3102 | 0.40 | 0.7 | 0.10 | 0.05-0.4 | -- | -- | -- | 0.03 | 0.10 | -- | Remain |
| Hydrophilic Aluminum Foil | |||||||||||
| Alumi.alloy | Temper | Thickness | Width | I.D. | Coating Thickness Both Sides | Color | Corrosion Resistance | ||||
| 8011 | O; H22;H24 | 0.07mm-0.2mm | 50mm-1250mm | 76mm; 152mm; 305mm; 505mm | 1um - 3um | blue;golden;dark;green; silver | STM B117≥ 500h=10 | ||||
| 3102 | 1um - 3um | ||||||||||
| Alloy | Temper | Thickness(mm) | ≥Tensile Strength (N/mm2) | ≥Elongation (%) |
|
8011 |
O |
>0.04-0.09 |
≥60-120 Mpa | ≥4 |
| >0.09-0.14 | ≥60-120 Mpa | ≥13 | ||
| >0.14-0.20 | ≥60-120 Mpa | ≥15 | ||
| H22 | >0.09-0.14 | ≥90-150 Mpa | ≥5 | |
| >0.14-0.20 | ≥90-150 Mpa | ≥6 | ||
| H24 | >0.09-0.14 | ≥120-170 Mpa | ≥4 | |
| >0.14-0.20 | ≥120-170 Mpa | ≥5 |
Hydrophilic aluminum foil is treated on the aluminum foil hydrophilically. It is treated with a special process by coating a hydrophilic layer on the surface, then condensed water will rapidly spread on the hydrophilic aluminum foil, and thus it will not condense into water droplets, and increase heat exchange area, speeding up the cooling and heating speed, and therefore effectively avoiding the noise caused by the condensed water obstructing the air flow.
